Product Description
Delivery: Since the fully assembled and tested version will be too big to fit on a lift gate the Freight must be picked up at your local terminal SEE YOUR LOCAL TERMINAL HERE. PLEASE ALLOW 3 TO 5 BUSINESS DAYS ADDITIONAL PROCESSING TIME.
Assembly Note: everything will be assembled except the roll bars, roof, and the windshield if applicable.
TrailMaster Blazer4 200X 200CC Family Size 4-Seater Go Kart, 4-Stroke, Single Cylinder, Air Cooled
The TrailMaster Blazer4 200X is another long waited model all new stylish Blazer series! This is a full size 4-seat go kart fits up to 4 adults! It is made of heavy duty frame, net weights 578 lbs with a max load capacity of 800 lbs!
Both front driver and passenger seats are adjustable with driver side pedal to seat back adjustable from 41” to 46”, fits driver/passenger up to 6’2 in height; Front seat to rear seat distance is 26 inches, fits passengers up to 6’2 in height! With bigger front / rear tires of 20 x 7-8 / 21 x 10-10 and special gear ratio set up, plenty of power to take off and pull 4 people.
Details View
Details View
Key features:
- Stylish design
- Electric start with kill switch
- Fully automatic with reverse, high performance GY6 engine with internal reverse set up
- Heavy duty frame, net weight 728 lbs, max load 800 lbs, adult size 4-seat go kart
- Front seat to rear seat distance 26 inches, fits passengers up to 6Â’2 in height
- Adjustable front driver and passenger seat: pedal to seat back adjustable from 41” to 46”, fits driver/passenger up to 6’2 in height
- Digital speedometer/odometer
- Aluminum side mirrors
- Turn signals
- 5-Point safety harness seatbelt
- Individual sporting seats
- Polished stainless steel muffler
- Big tires: F / R: 20 x 7-8 / 21 x 10-10
- Bikini sunshade top
- Adjustable heavy duty front and rear shock absorber
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- 4-wheel fenders
- Trailer hitch
- Large gas tank
- LED headlight
- Horn
- Padding over roll cage
Product Dimensions
• L x W x H: 2950x1150x560 mm
• L x W x H: 116.14x45.28x22.05 inches
• Volume : 1.9/67.1
• Weight : 900
Other Details
Technical Specs
Parts breakdown set up manuel
| Blazer 4-200X E | Parts List |
| Engine type | 4-stroke, single cylinder, air cooled |
| Displacement | 150cc |
| Max HP | 8.2HP/7500rpm |
| Max torque | 7 lb ft/6000rpm |
| Bore x stroke | 2.26 x 2.28 inches |
| Max speed | 28mph |
| Climbing ability | 12 degrees |
| Min. turning radius | 229 inches |
| Ignition | C.D.I |
| Starting system | Electric |
| Battery | 12V 10Ah |
| Carburetor brand | Deli |
| Engine oil | SAE 15W/40 |
| Clutch | Automatic CVT with reverse |
| Driveline / Driving wheel | Chain / Dual wheel drive |
| Suspension, F / R | Dual A-arm / swing-arm |
| Brakes, F / R | Both hydraulic brakes, Disc |
| Tires, F / R | 20 x 7-8 / 21 x 10-10 |
| Fuel capacity | 2.25 gal |
| Weight, G.W. / N.W. | 900 lbs/ 728 lbs |
| Max load | 800 lbs |
| Dimension Information | |
| Wheelbase | 88 inches |
| OA L x W x H | 116.14*45.28*22.05 inches |
| Height to seat, F/R | 17 inches/ 20 inches |
| Distance from F to R seat | 26 inches |
| MinGround clearance | 10 inches |
| Pedal to seat back distance | 41-46 inches |
| Rest of Key Features | Configurations And Specifications Subject To Change Without Notice. |
| Notes (Shipping) | LARGE UNIT DELIVERY |
| Shipping Instruction of a fully assembled unit | |
| Due to the large size of some fully assembled units (UTV's, Larger Go Karts, Larger Trikes), the trucking company may not have a lift-gate that will be capable of lowering the unit from the truck bed. Please be advised that when choosing a fully assembled unit, you might need to choose one of the following options to receive your unit: | |
| 1) Select and alternate location that we may deliver your freight to. This alternate location must have a loading dock and/or forklift that is able to remove your freight from the truck bed. | |
| 2) Rent a forklift and manually remove your freight from the truck bed. |
|
| 3) Pick up your freight at the local terminal. Depending upon the terminal, you may be able to uncrate your unit at the terminal and ride your new trike home. (This varies from terminal to terminal and may not be available in all states.) |
|
| *Please be advised that due to liability issues, the delivery driver will not be able to assist you in any way with the removal of your fully assembled vehicle from the delivery truck. Additionally, the delivery driver will not help to remove the crate from your vehicle or dispose of any of the packaging." |
More Pictures
Product Videos
Custom Field
salelabel ON SALE
Product Reviews
Recommended
SALE
New TrailMaster Cheetah 200X Deluxe Go Kart, 4-Stroke, Single Cylinder, Air Cooled, Automatic With Reverse
Was:
$3,499.00
Now:
$3,299.00
SALE
TrailMaster Blazer 200R, Air Cooled 4-Stroke, Single Cylinder Go Kart
Was:
$2,299.00
Now:
$2,149.00
SALE

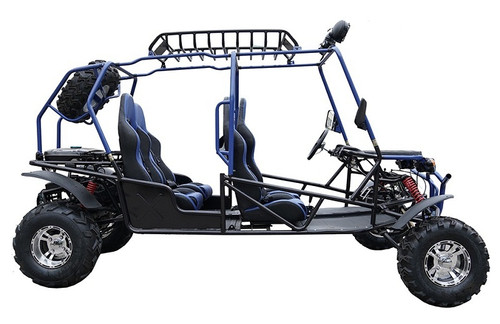

NEW RPS TK200GK-6A 200cc 4-Seater Go Kart With Chrome Rims, 4-Stroke, Single Cylinder, Air-Cooled
