Product Description

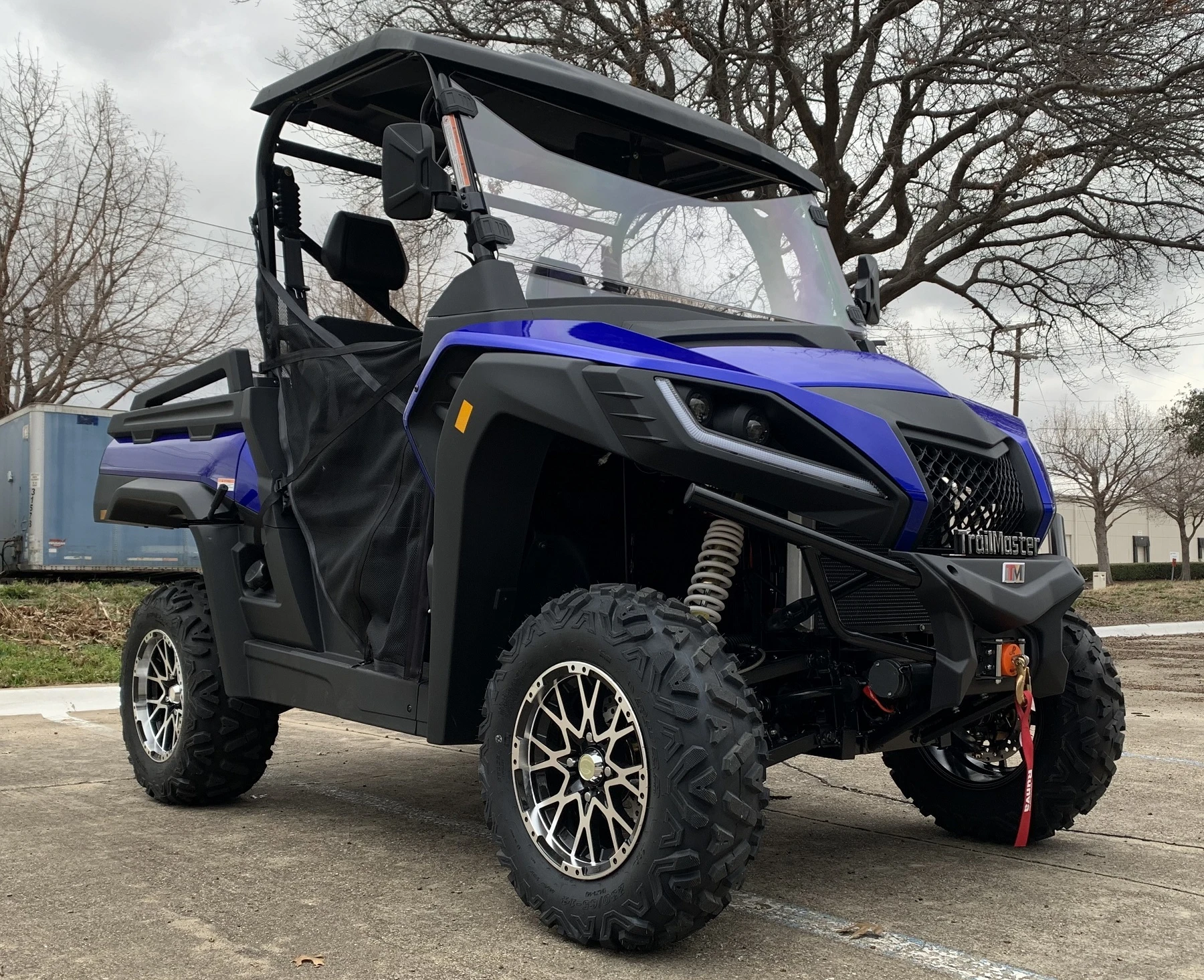

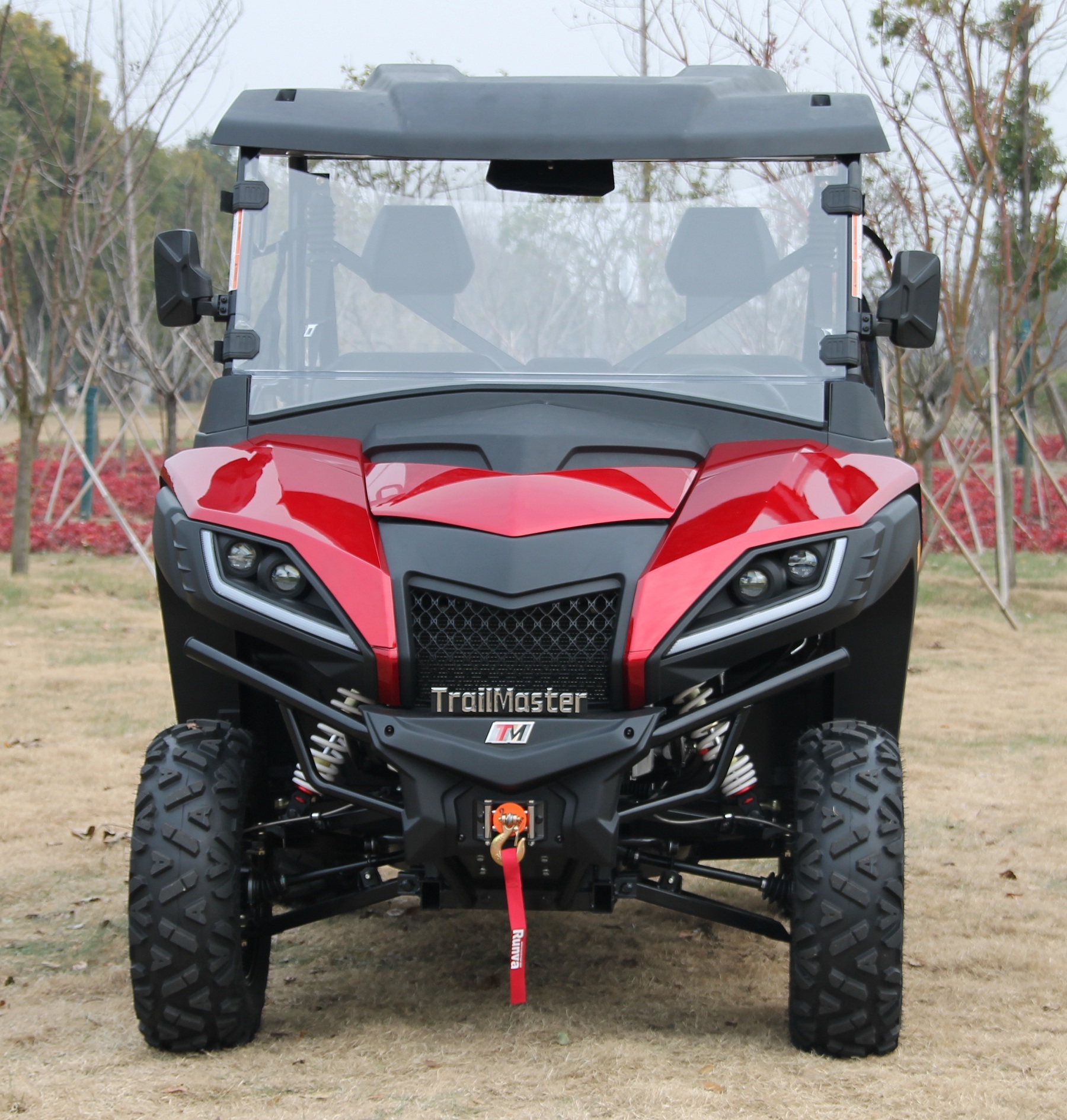

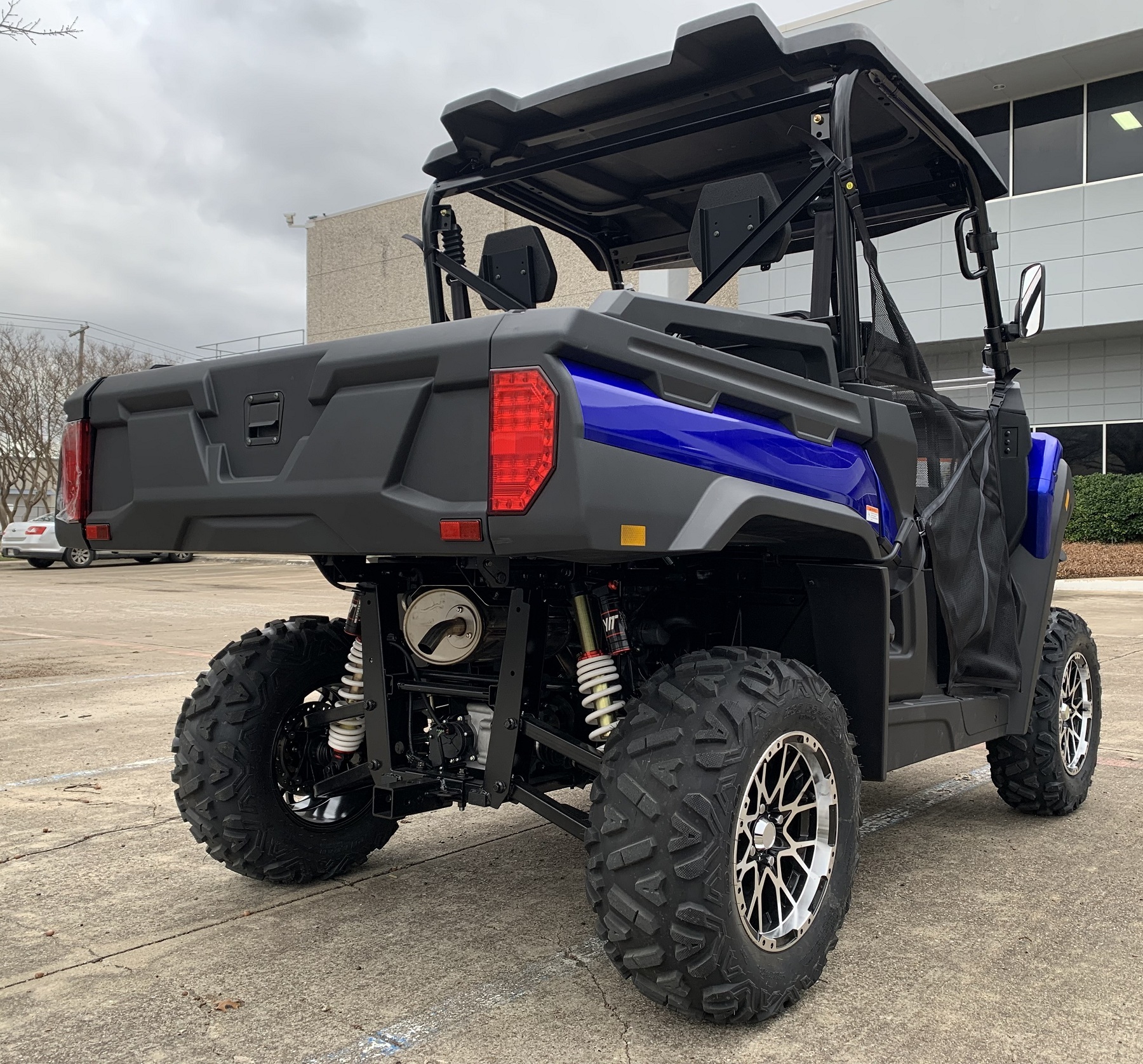

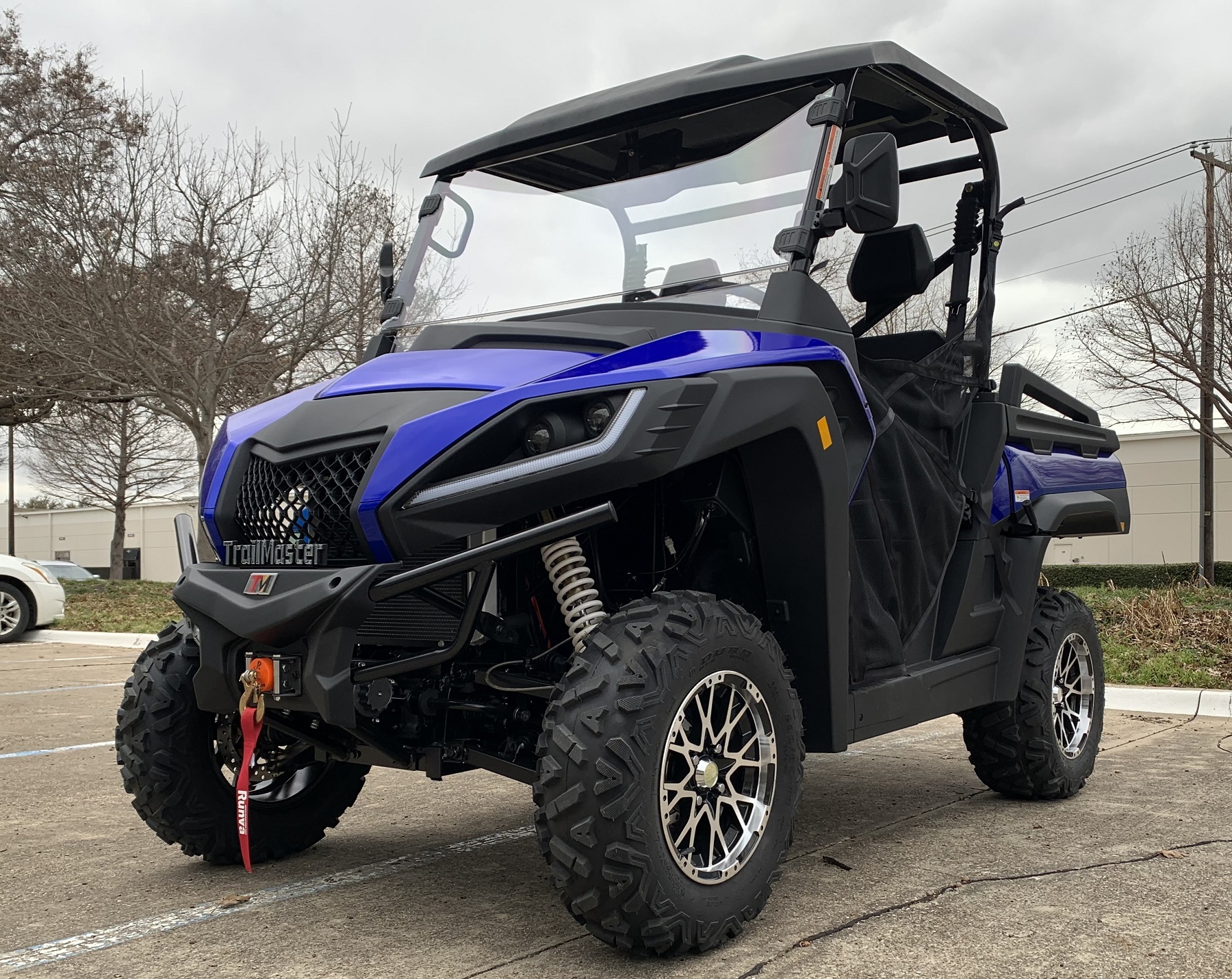

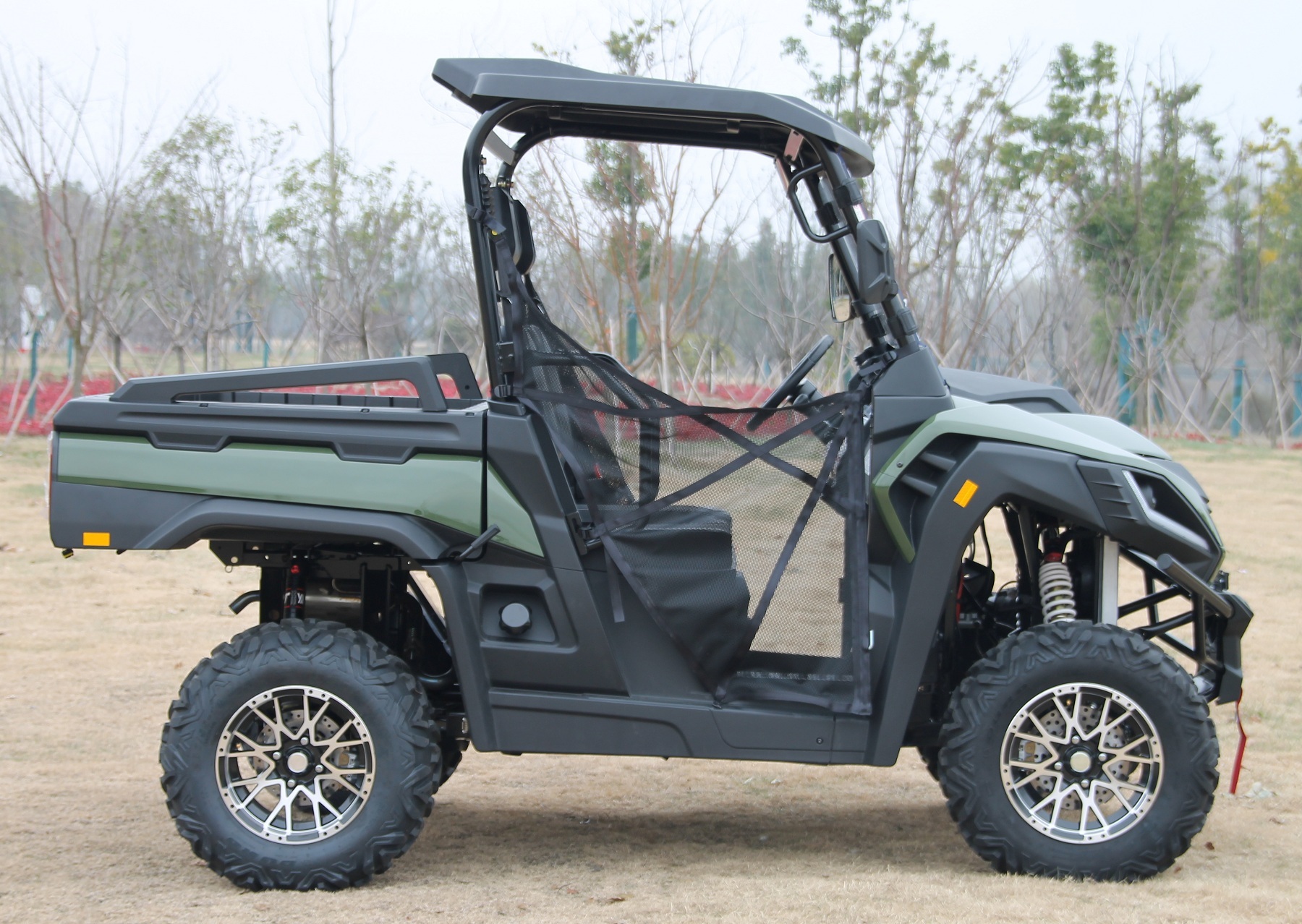

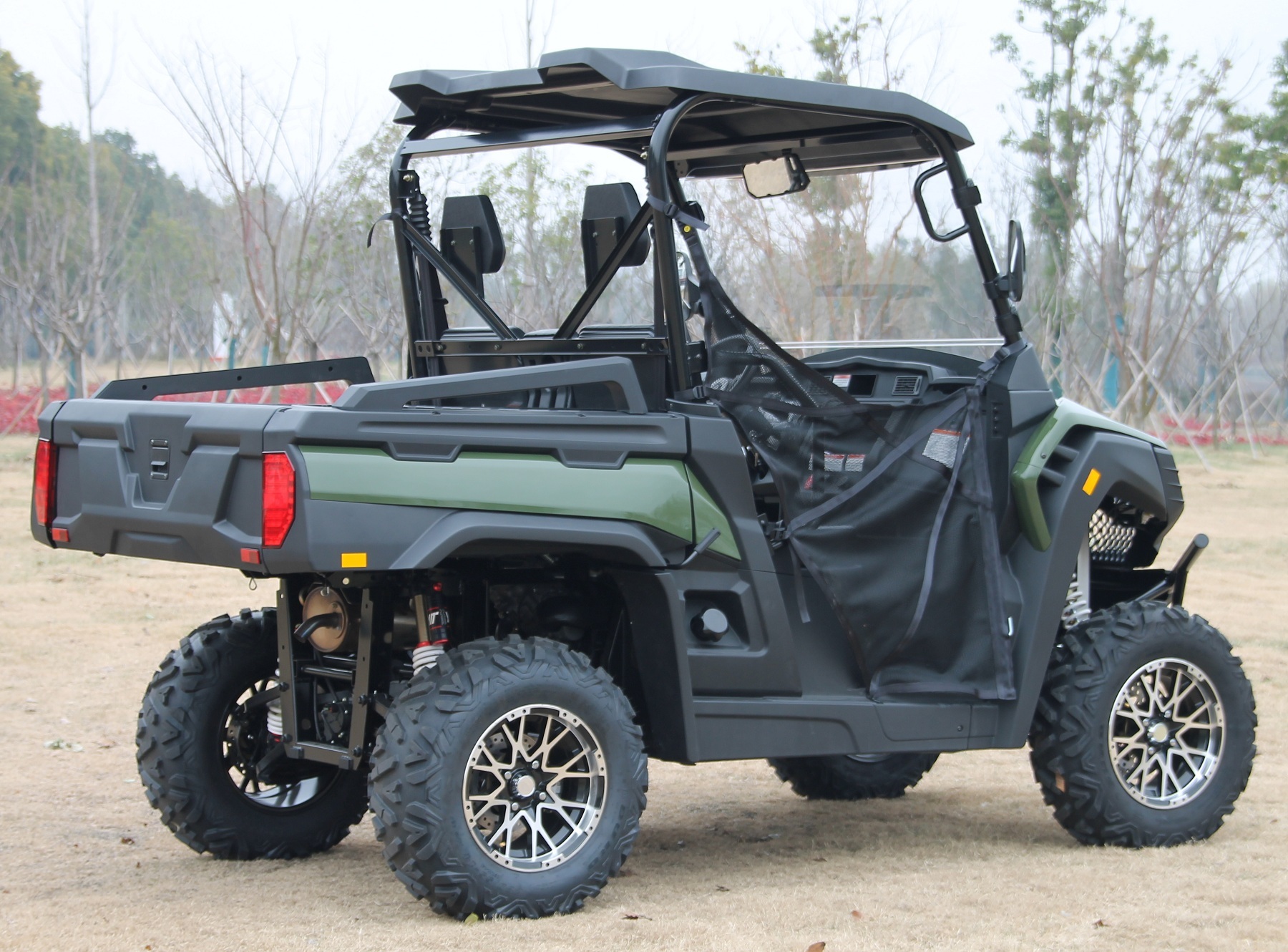

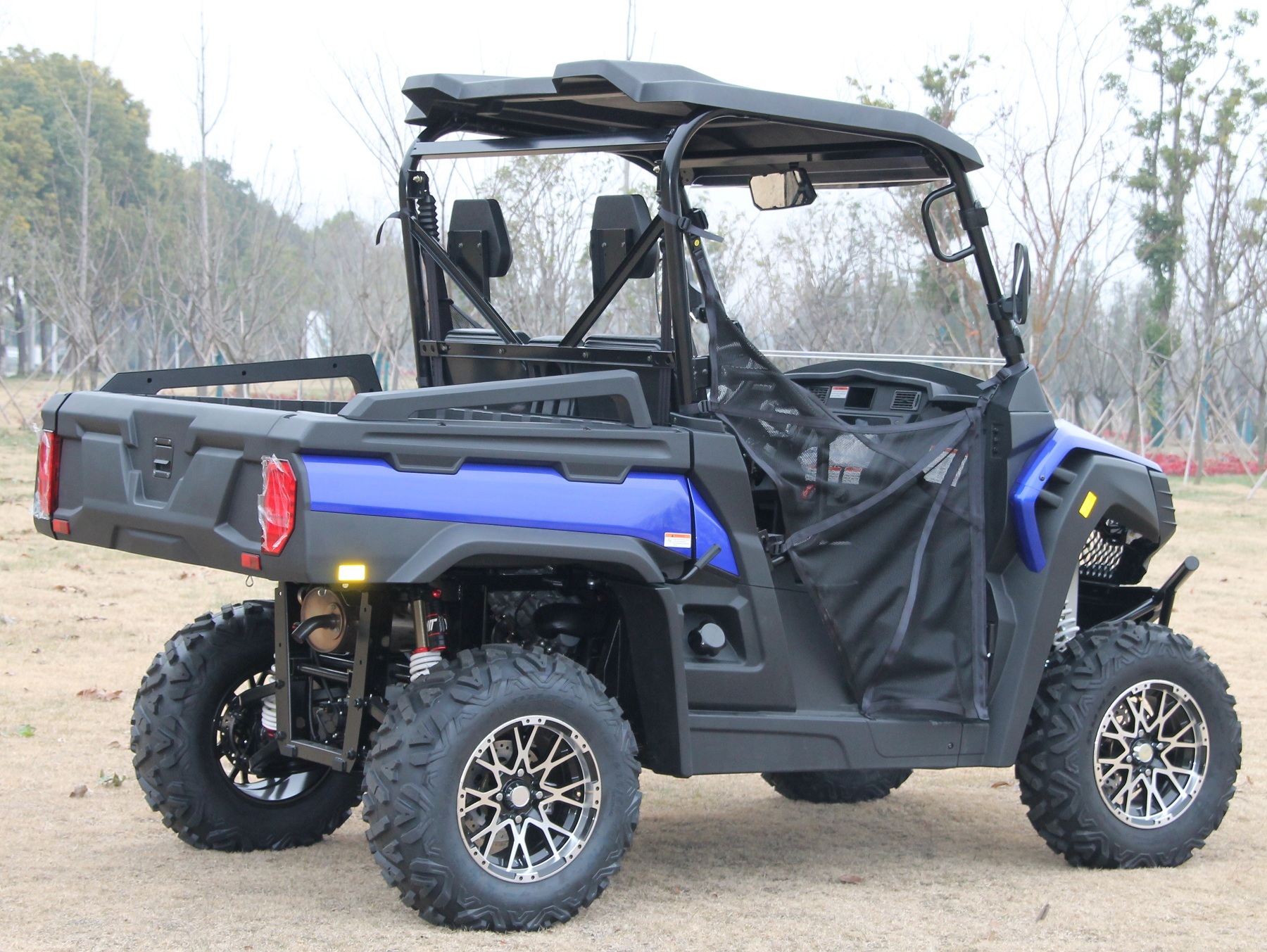

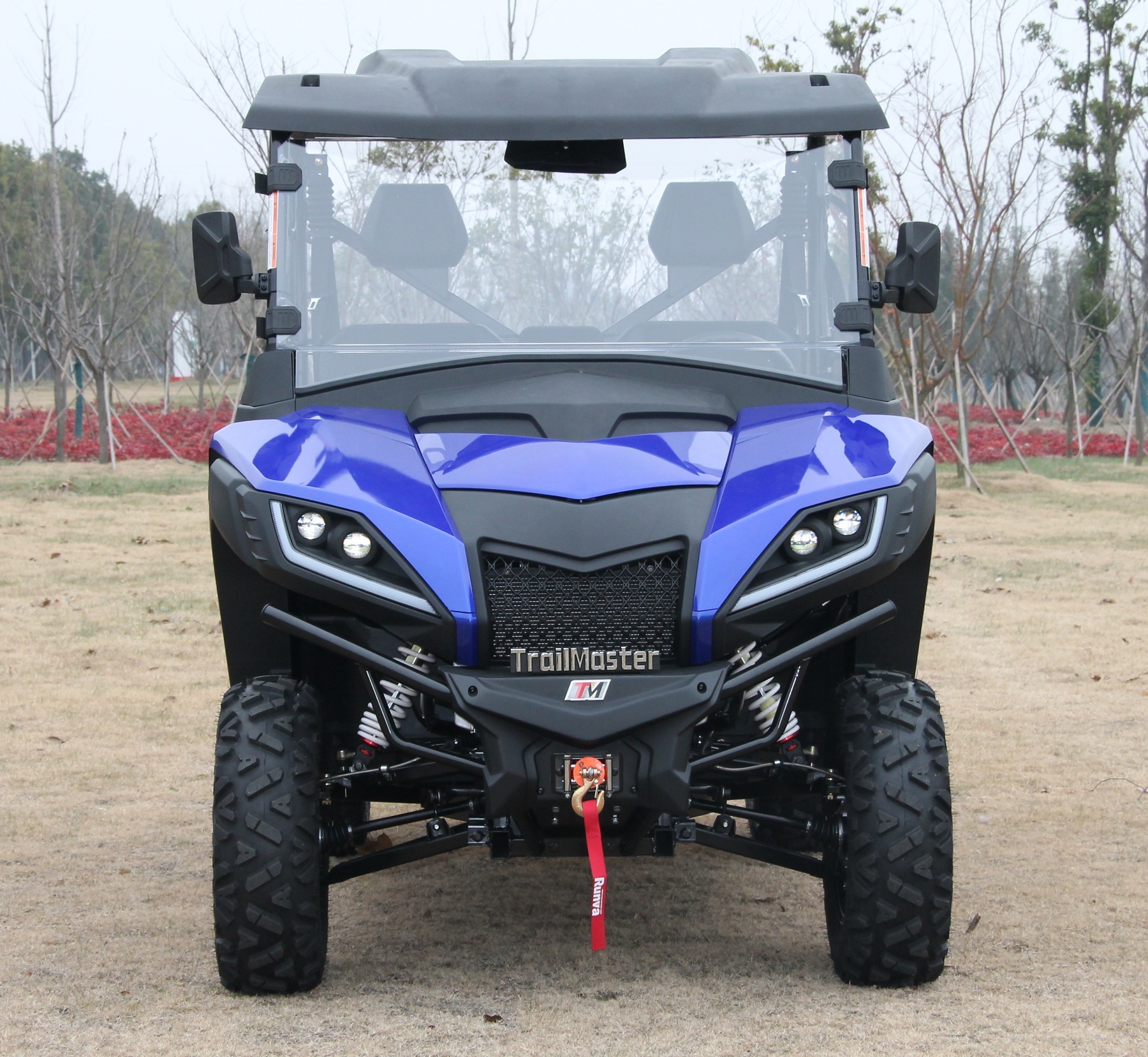

Trailmaster Panther 550Cc Utv, Automatic with locking differential, single cylinder, liquid cooled
Key features:
- Hard top
- 3000lb-winch
- Windshield
- Side Nets
- Four Wheel Drive, Front and Rear differential with lock
- Liquid cooled high performance 498.6 cc 34 HP engine, with max power 24Kw
- Equipped with H/L gear, can climb up to 30 degree slopes with ease with full capacity
- Bench seat can fit up to 3 persons
- Flip cup holder
- Large storage space under seat
- Four-wheel independent suspension for much better driving experience
- EFI
- Digital speedometer/odometer
- LED Hi/Lo beam head light
- Rear view center and side mirrors
- Sporting steering wheel
- Turn signals
- Safety harness seatbelt
- Big off-road tires: F / R: 26 x9-14 / 26 x 11-14
- Polished aluminum wheels
- Front bumper
- Adjustable heavy duty front and rear shock absorber
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- Large gas tank
- 12v power outlet
- Horn
Other Details
TECHNICAL SPECS
➡️ Engine Information ⬅️ | |
EPA Certificated | |
Engine Type | 4-stroke, single cylinder, liquid cooled |
Displacement | 498.6cc |
Compression Ratio | 10.2:1 |
Max HP | 34HP |
Bore & Stroke | 92(mm) & 75(mm) |
Max Power and Crankshaft Speed | 24/6300kW/r/min |
Max Speed | 50mph |
Climbing Ability | 30 degrees |
Ignition | ECU |
Fuel System | EFI |
Starting System | Electric |
Battery | 12V 30Ah |
Engine Oil | SAE 15W/40 |
➡️ General Information ⬅️ | |
Transmission |
Automatic, L-H-N-R, with locking differential |
Drive Train | Shaft Drive; 2WD-4 WD |
Drive Mode | Four Wheel Drive, Front and Rear differential with lock |
Suspension, F / R | Front MacPherson, Rear Dual A-ARM |
Brakes, F / R | Both hydraulic brakes, Disc |
Tires, F / R | 26 x 9-14 / 26 x 11-14 |
Fuel Tank Capacity | 7.93 gallons |
Wheels | Aluminum |
Weight, N.W | 1386 lbs / 628 Kg |
Max Load | 1000 lbs |
Dump Bed Capacity | 550 lbs |
Towing Capacity | 820 lbs |
➡️ Dimension Information ⬅️ | |
Wheelbase |
74” |
Length×Width×Height | (Inches) 120.6x63.7x80.7 (mm) 3063x1617x2049 |
Seat Height | 18.9” (From floor board to seat) |
Min Ground Clearance | 11.4” |
Bump Bed Size | 48”X36.4”x11.8” |

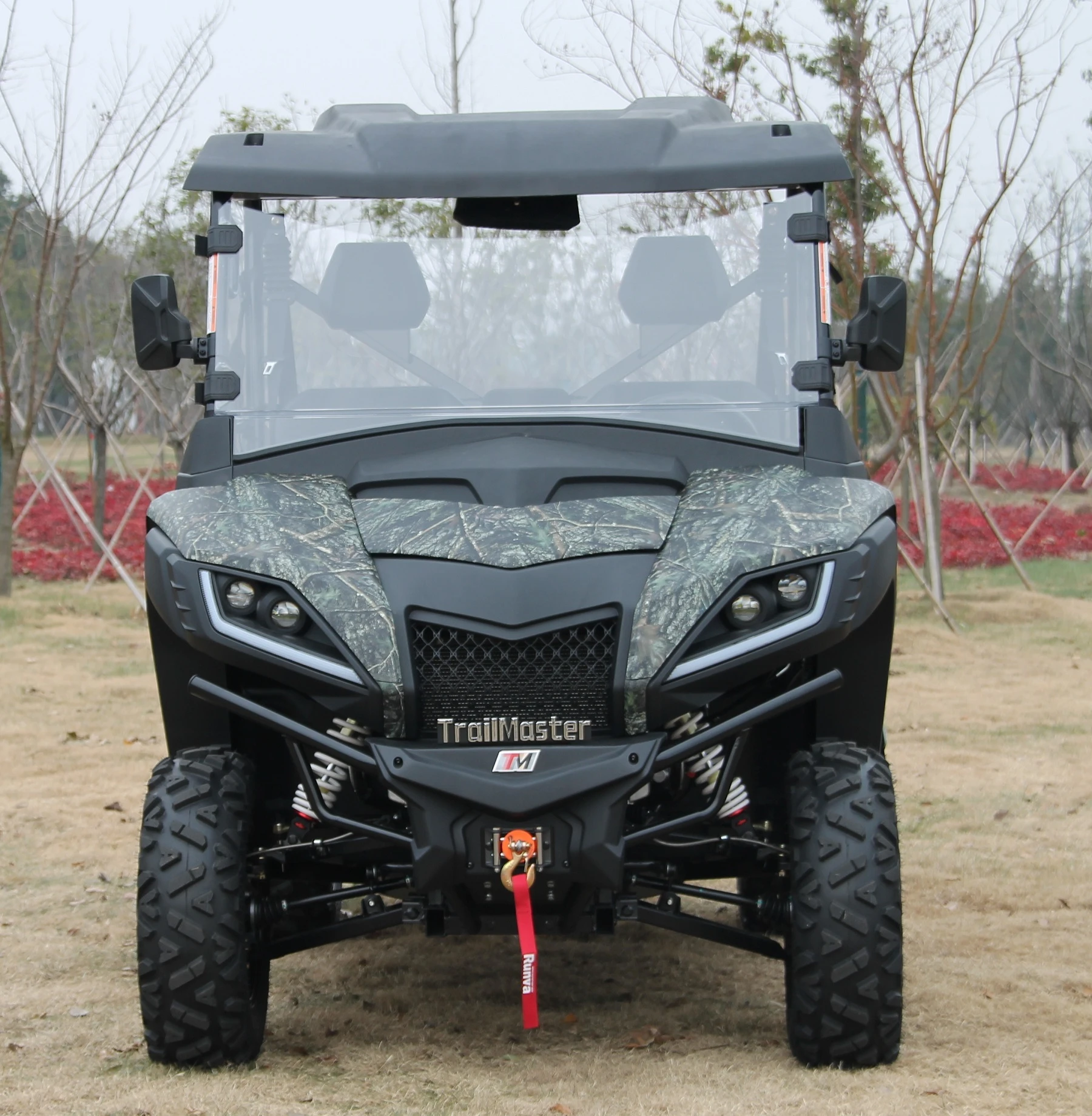

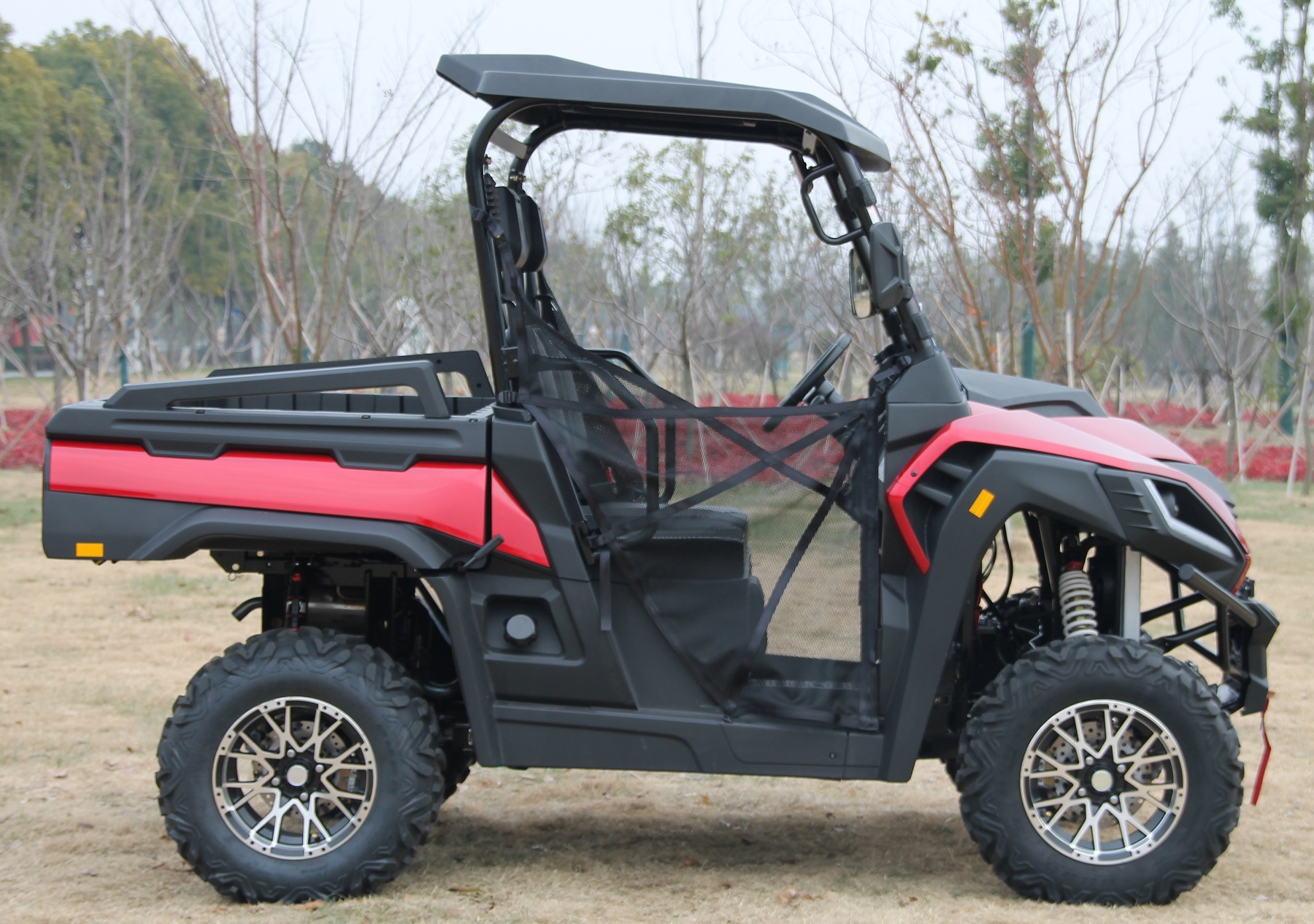

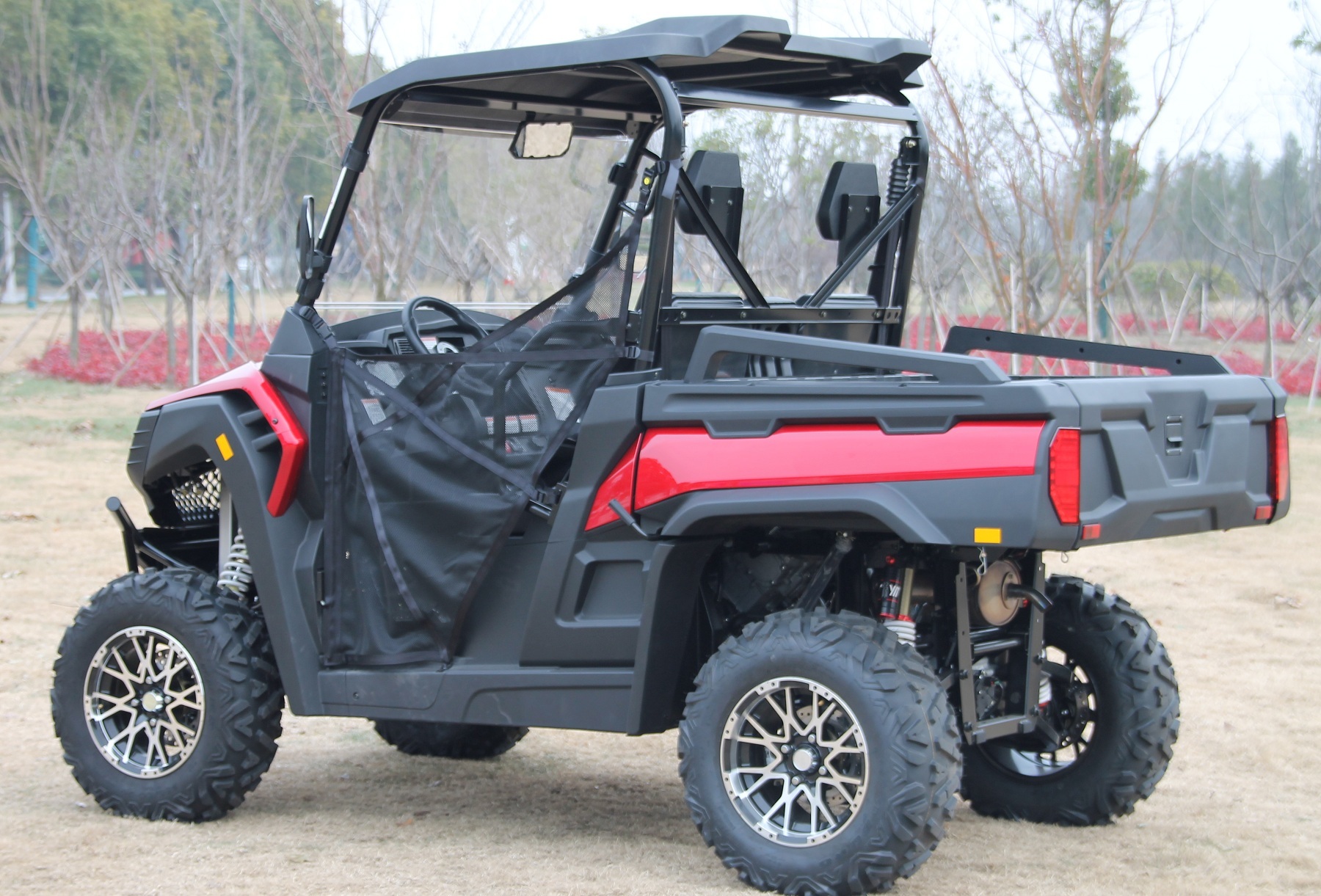

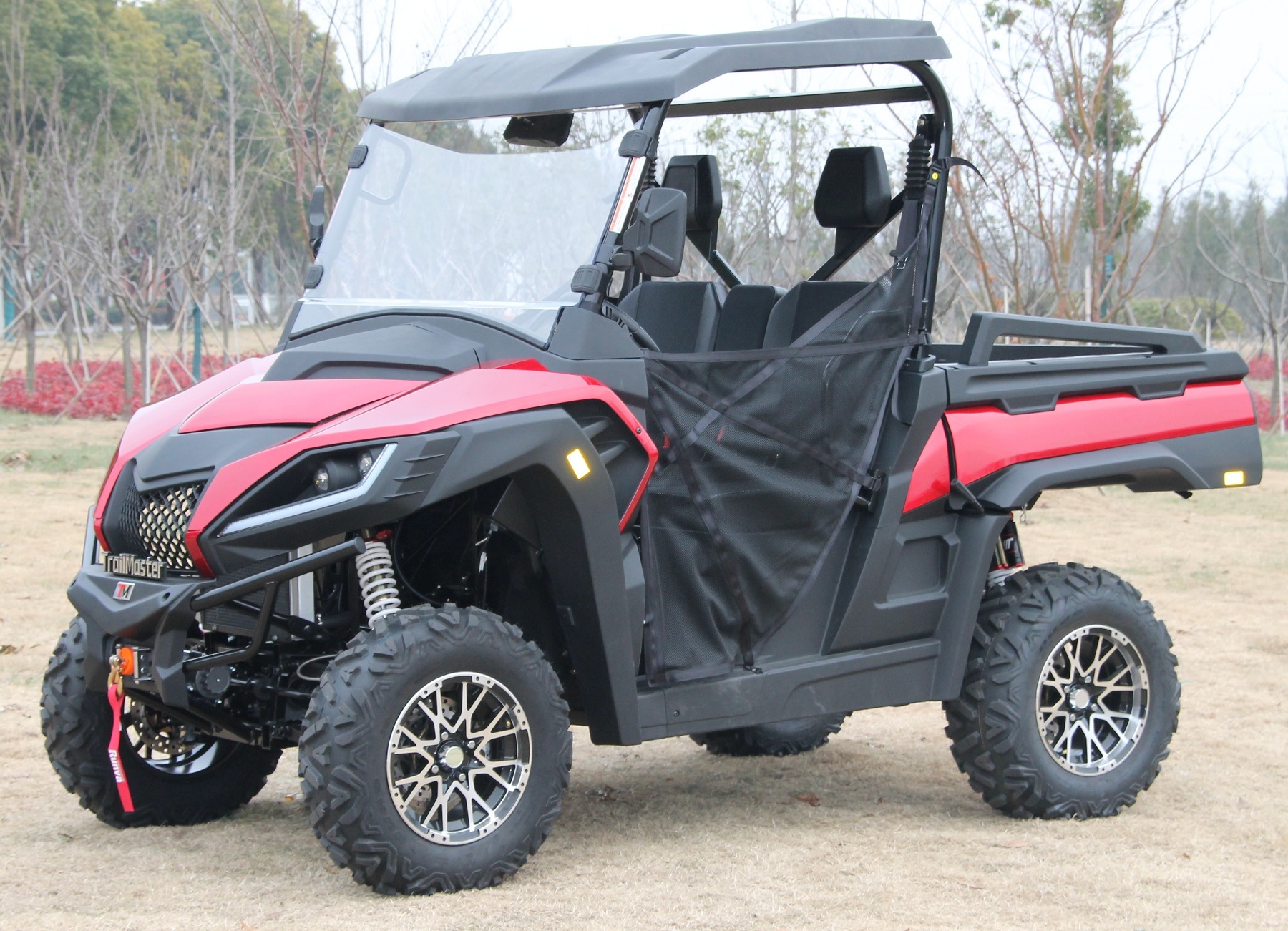

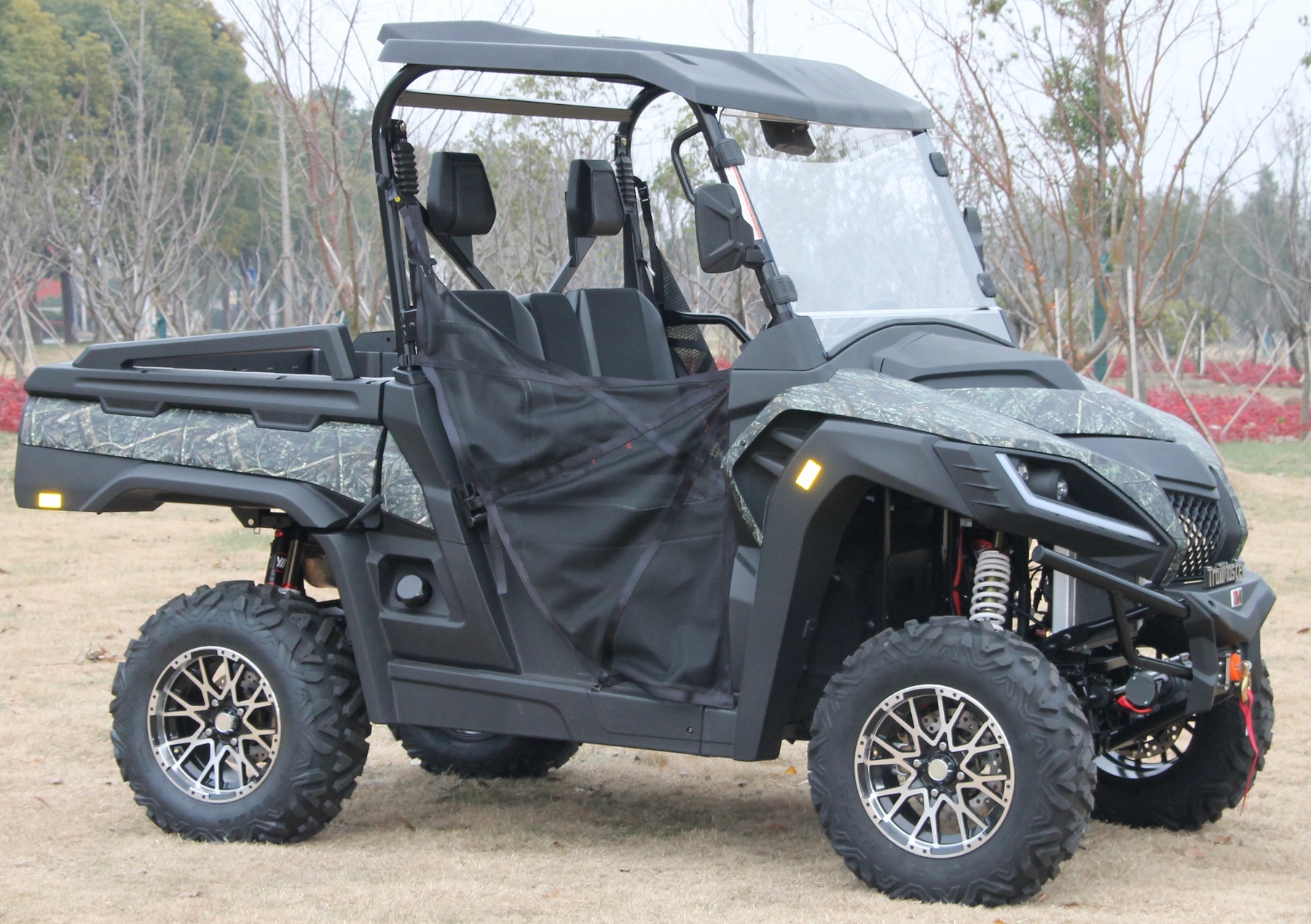

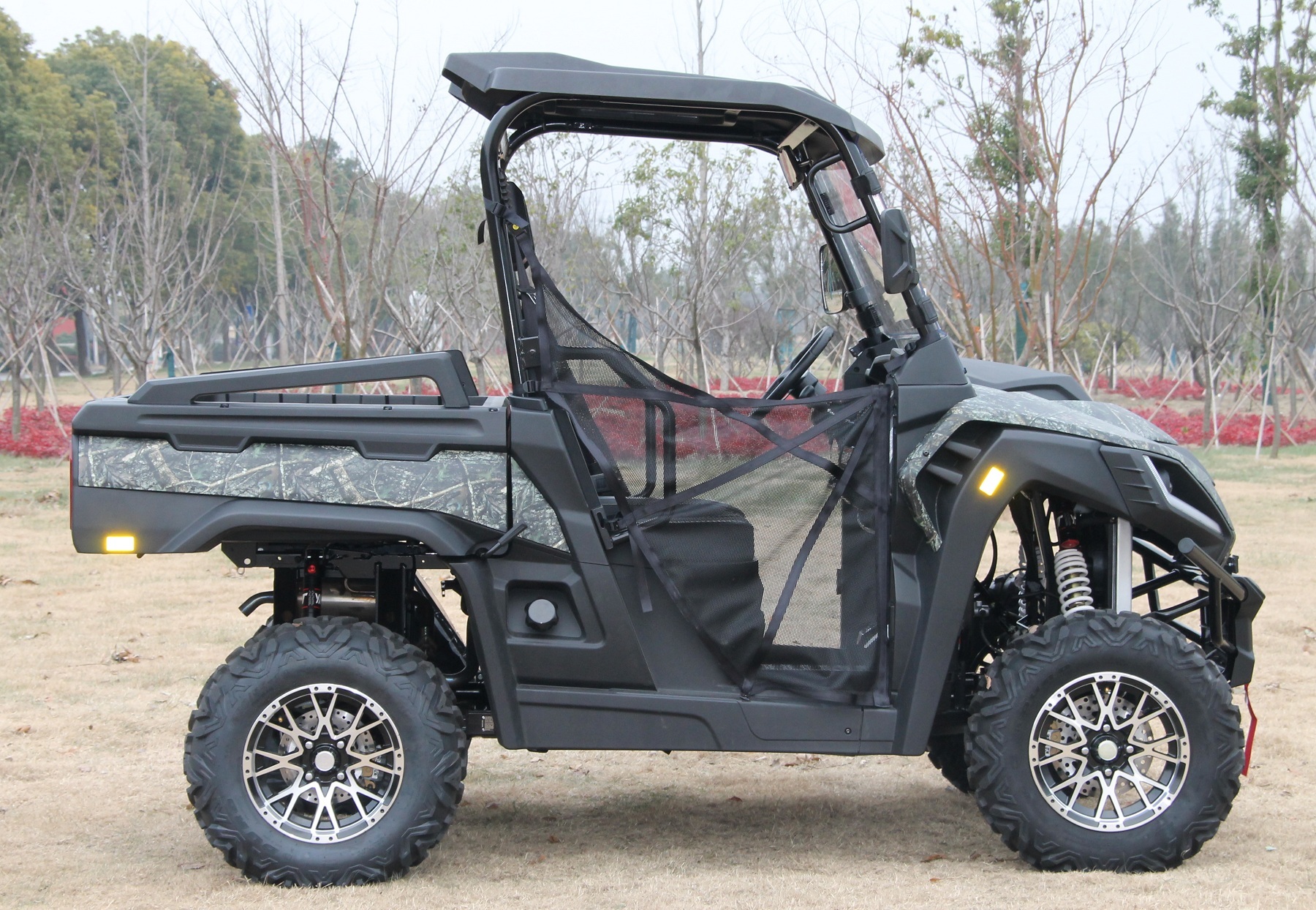

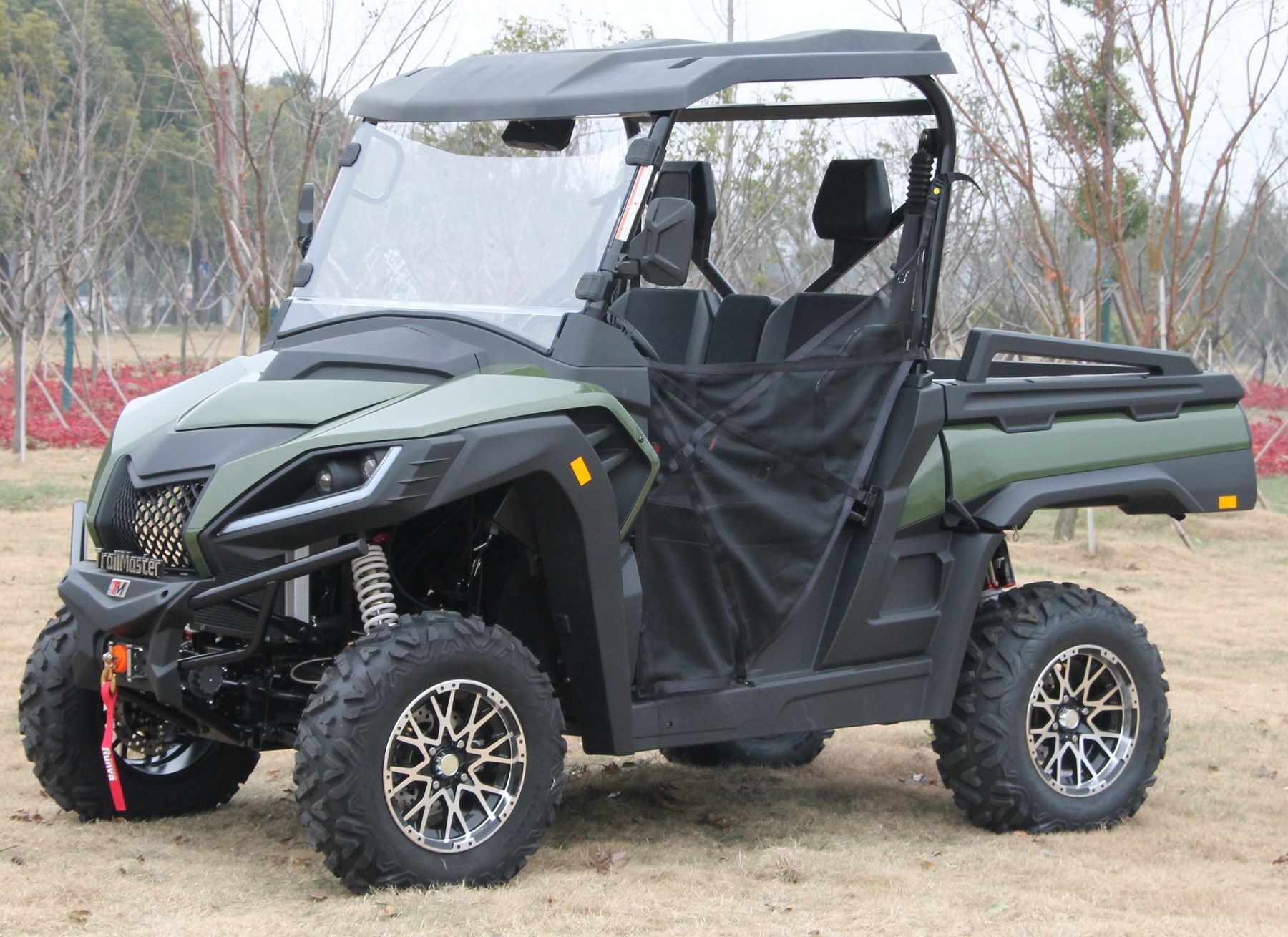

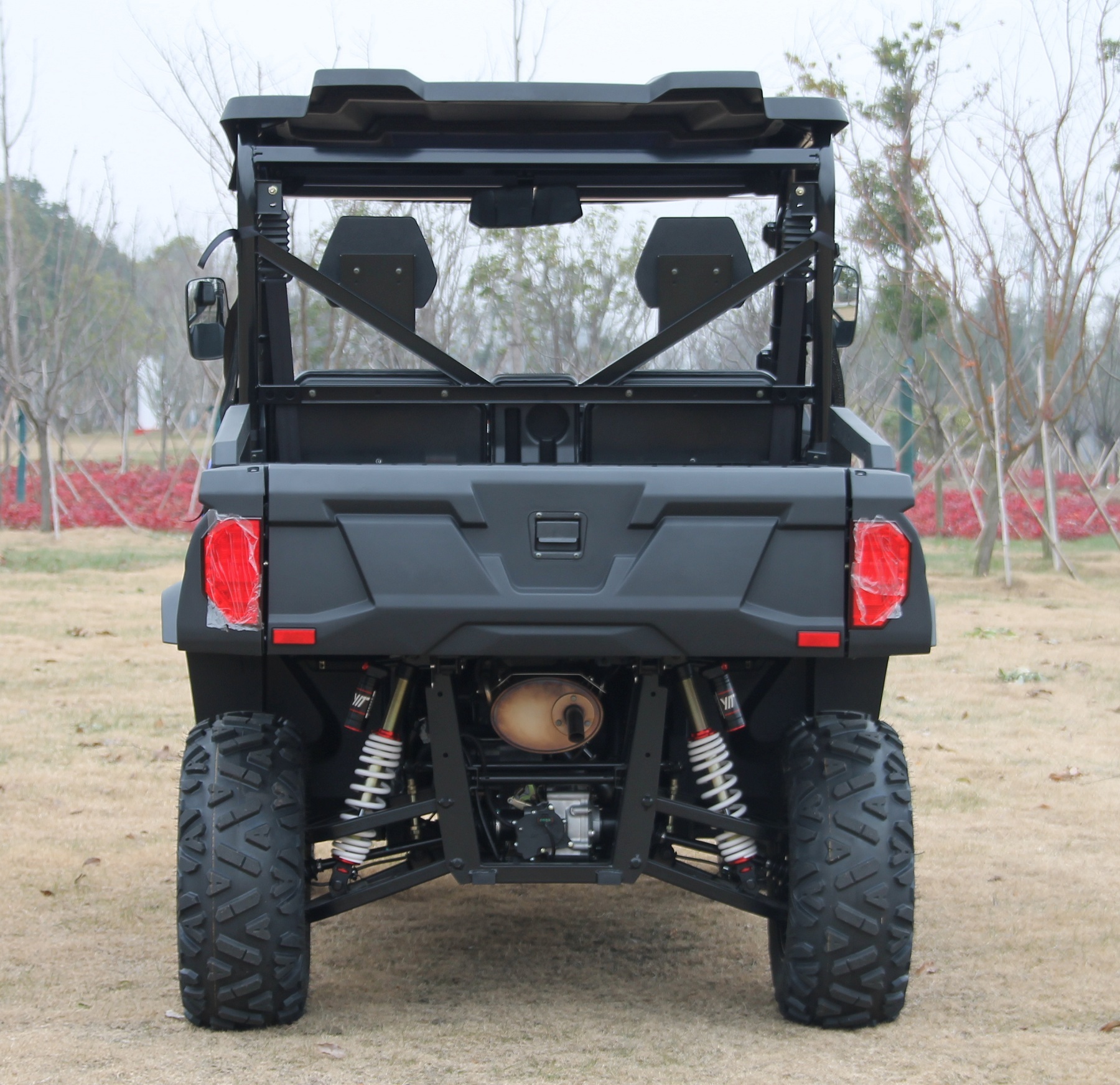

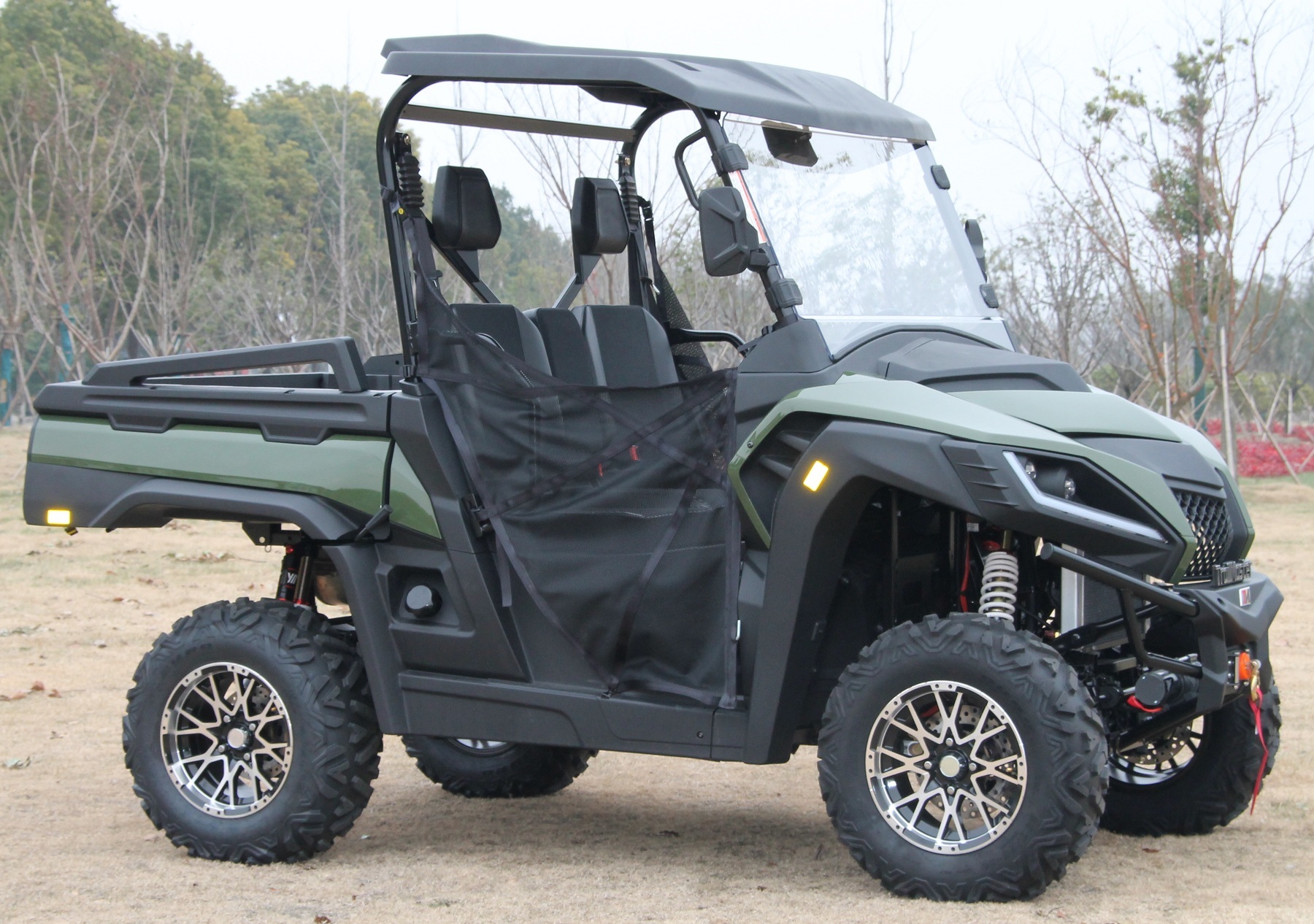

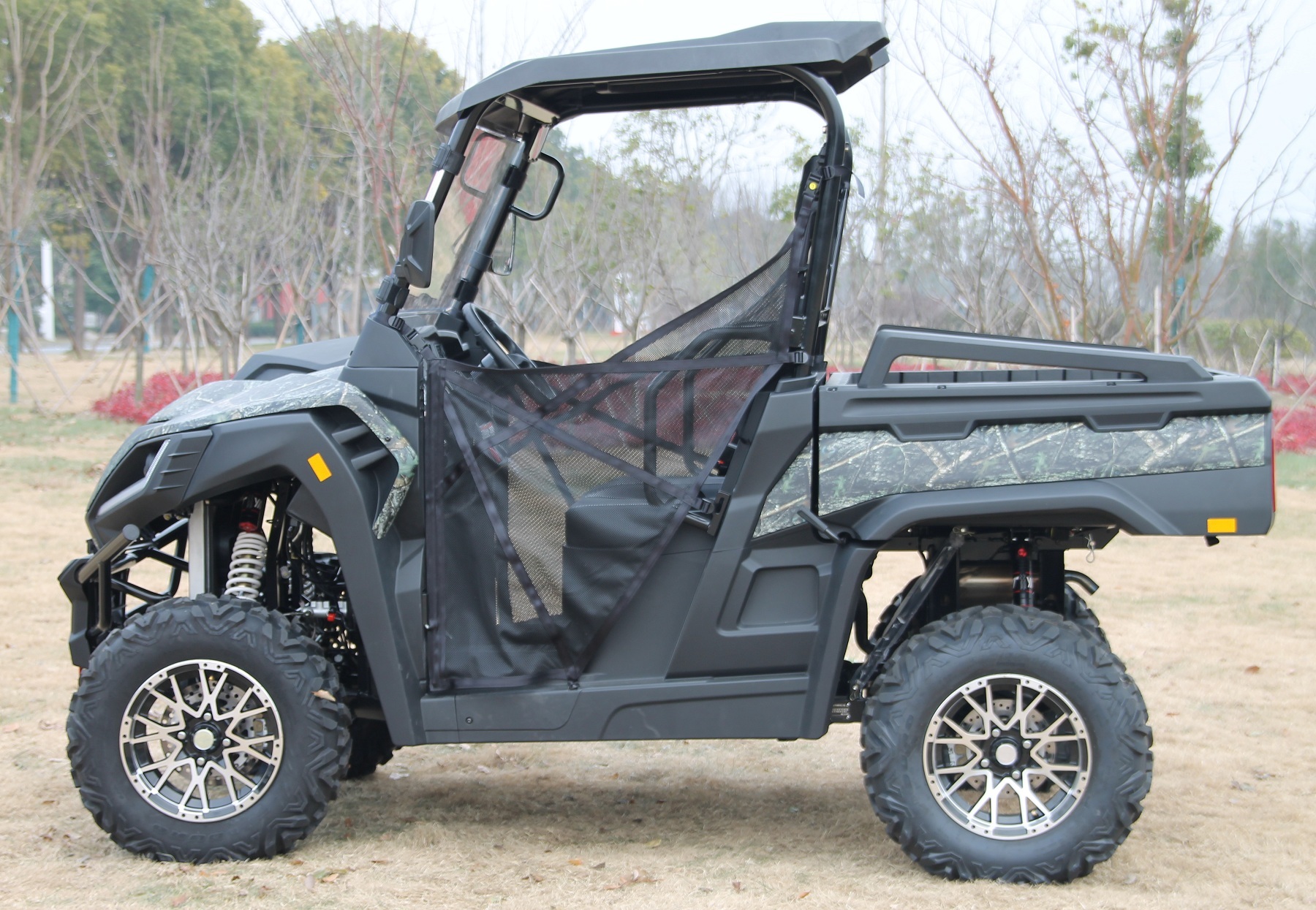

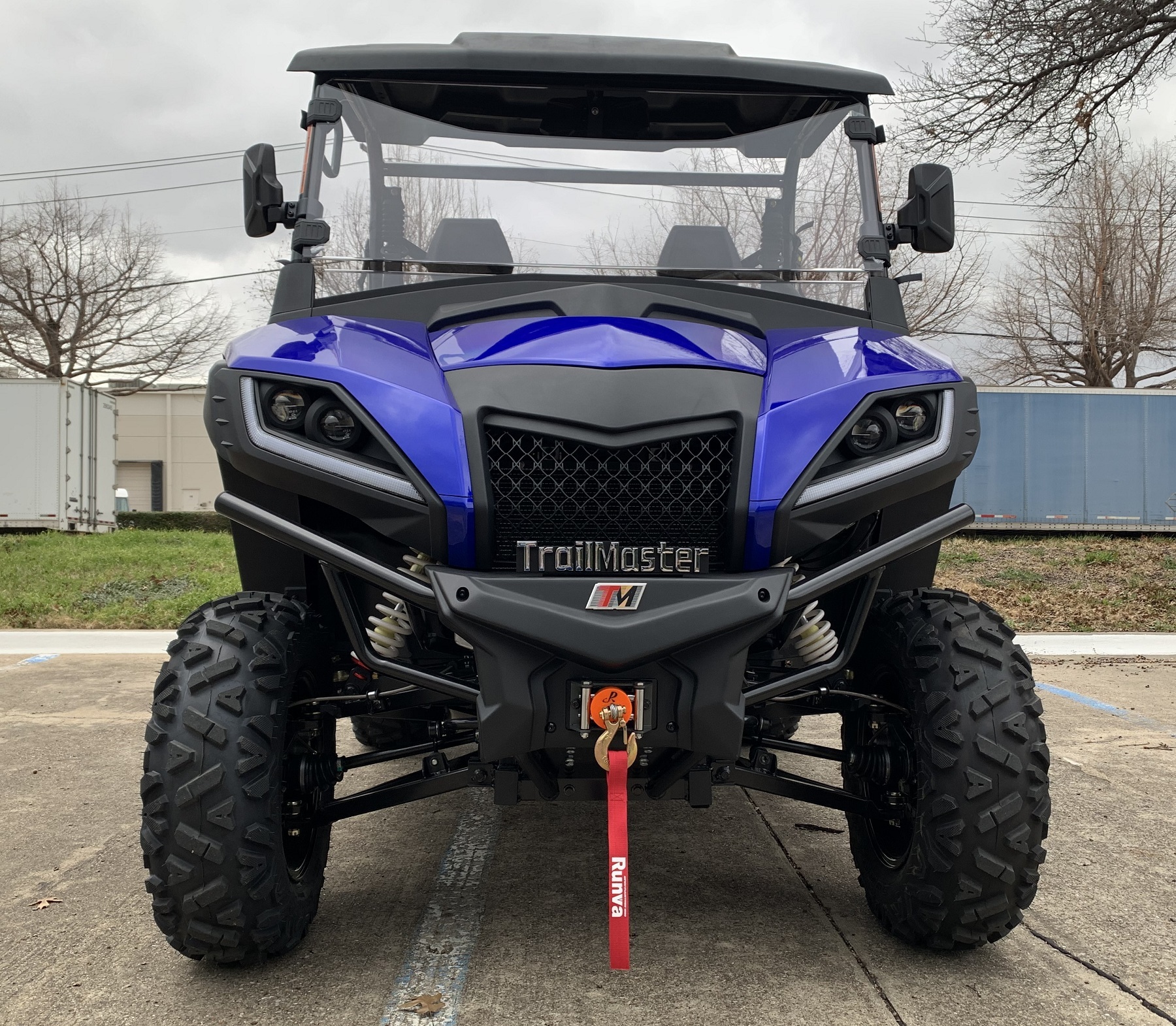

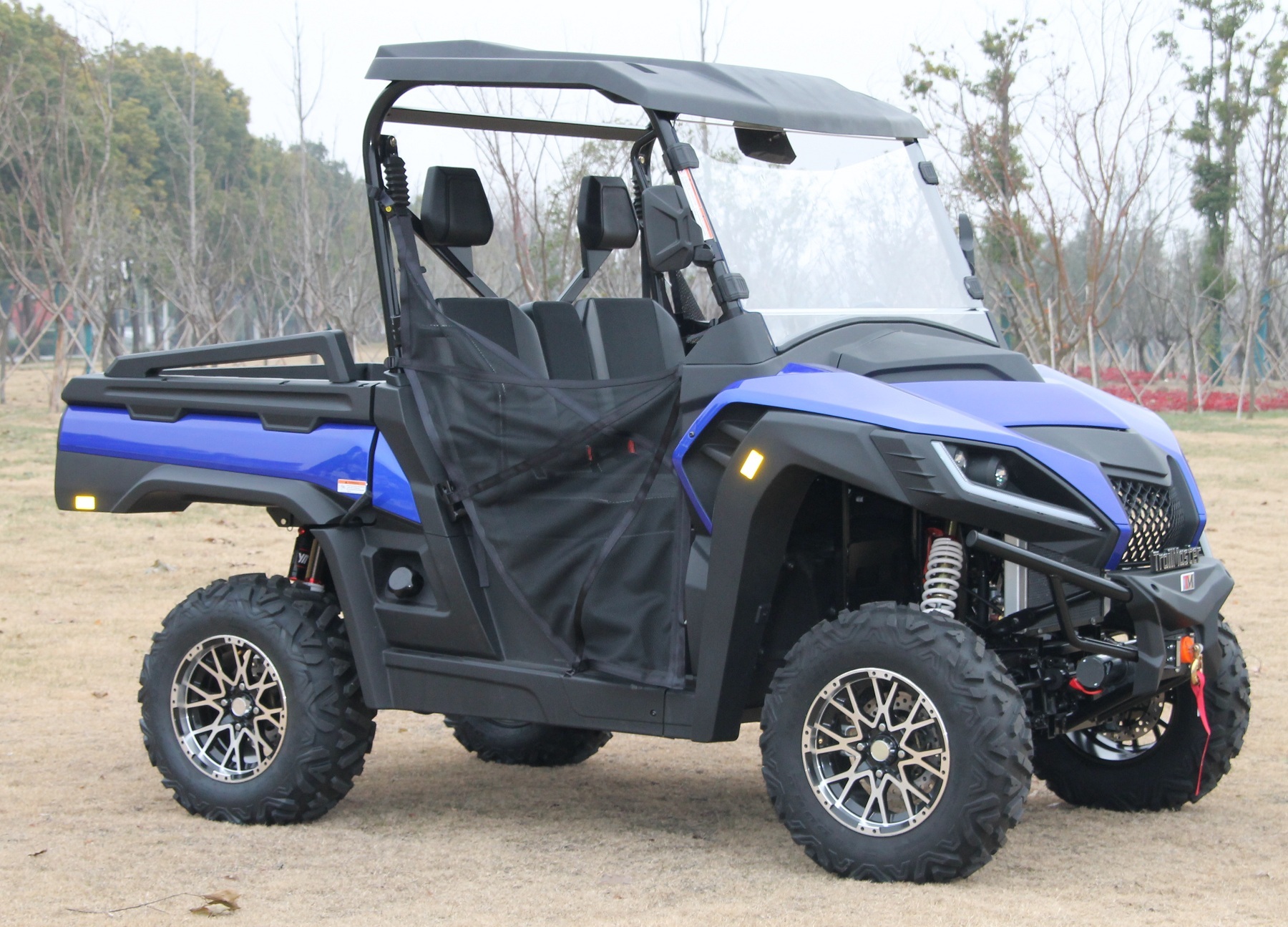

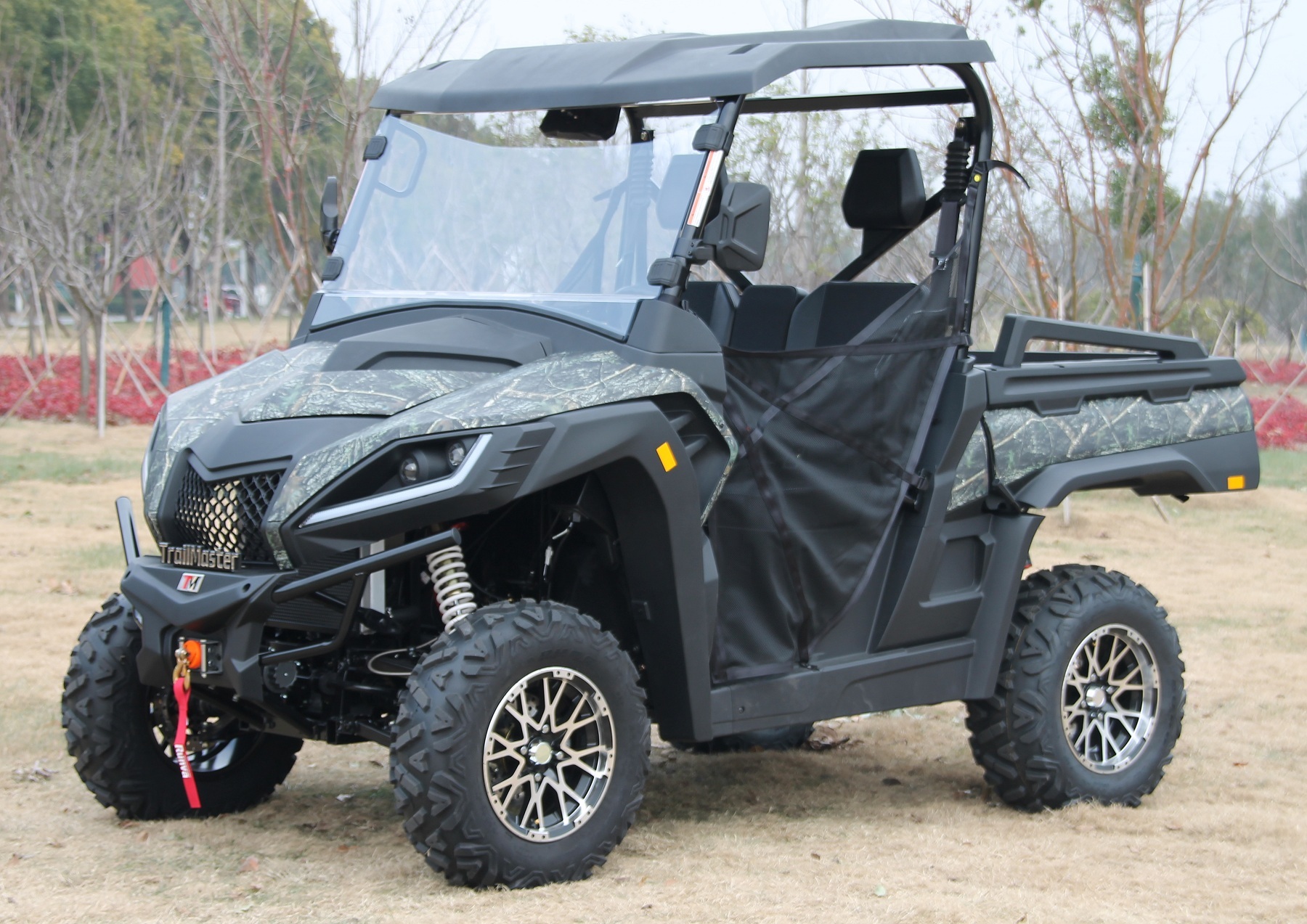

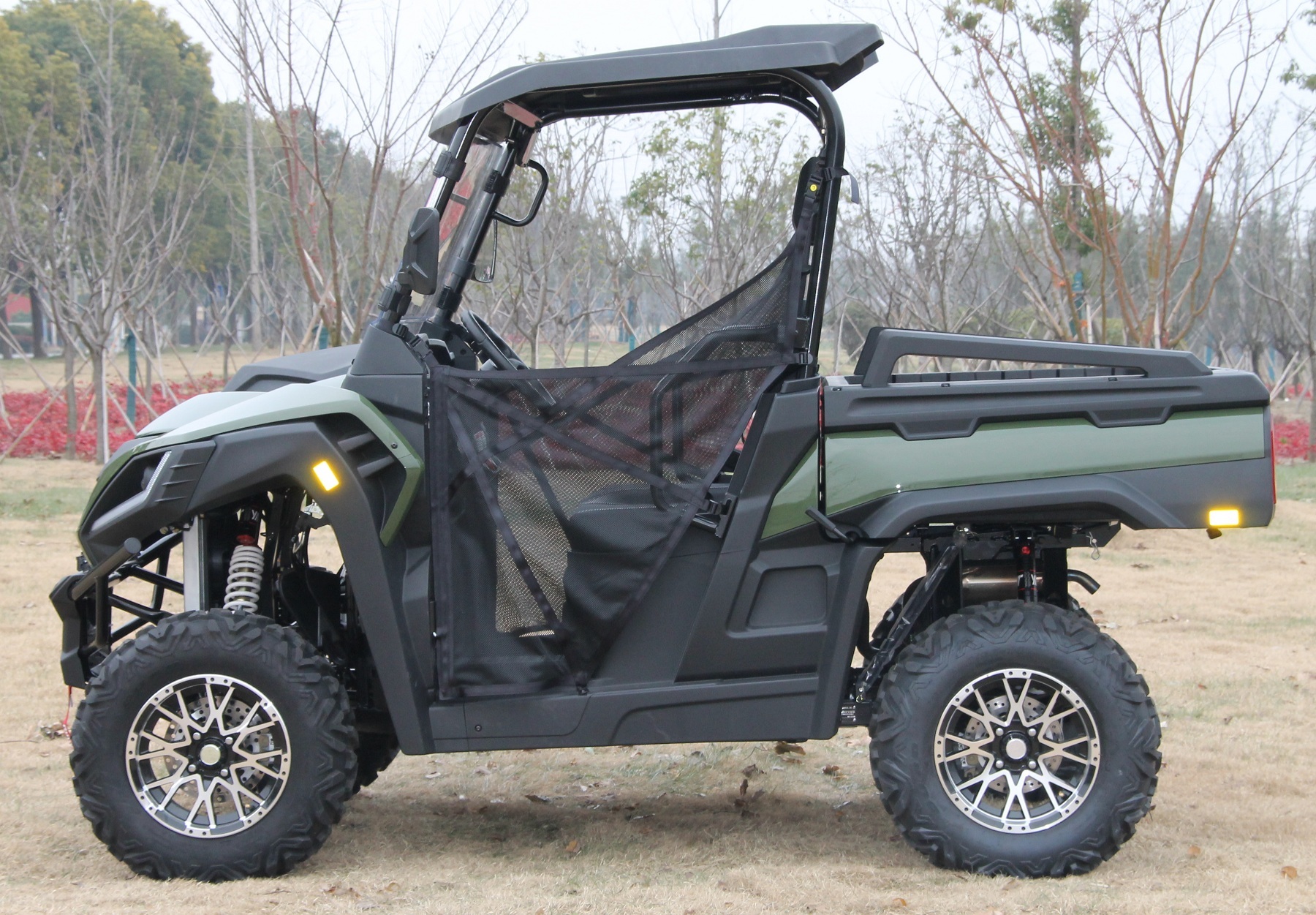

More Pictures
