Product Description

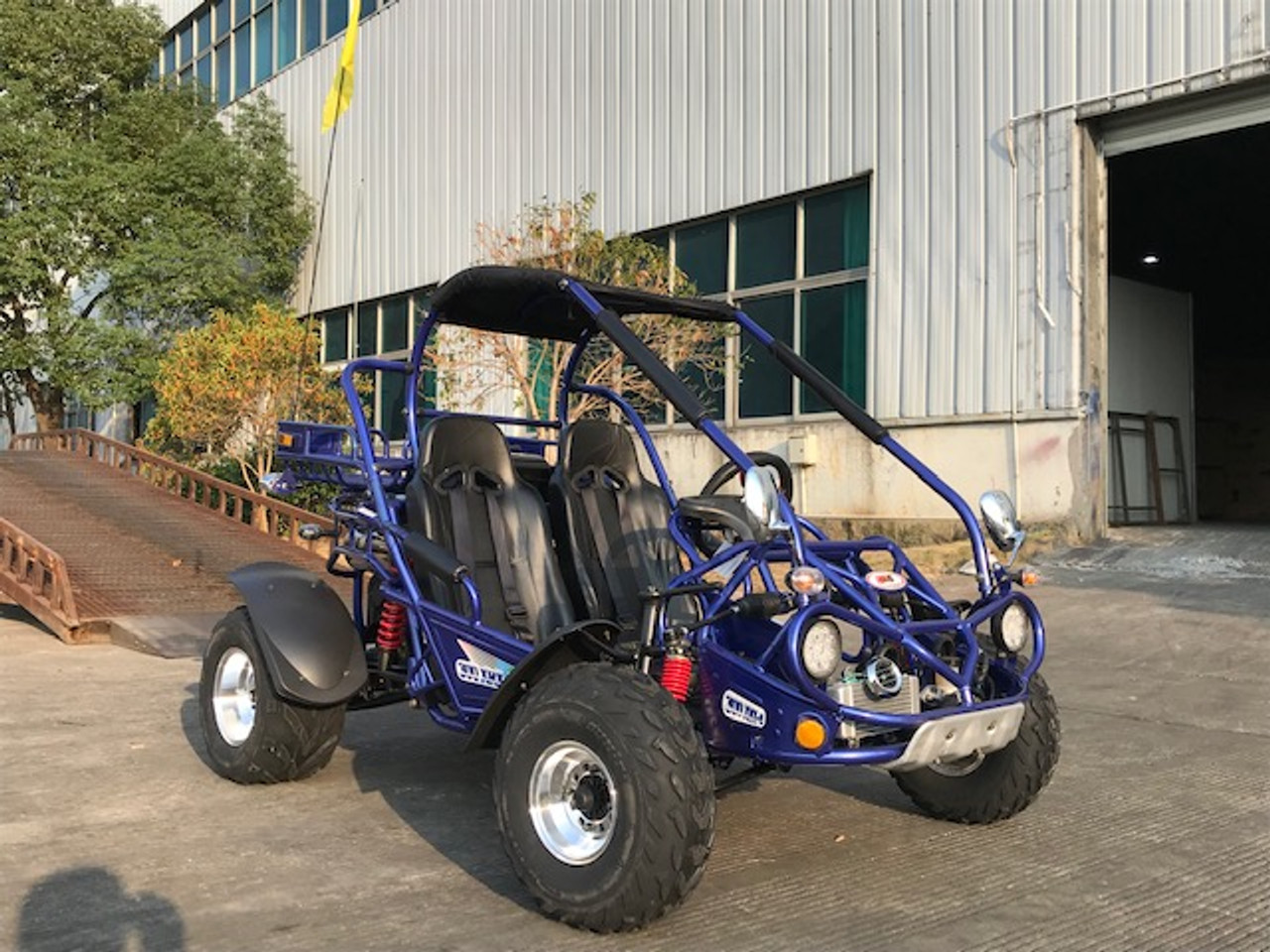

Trail master 300XRX-E EFI Go Kart, Fully Automatic With Reverse Engine, Liquid Cool Efi (Fuel Injection)
We have upgraded our 300XRX go kart to fuel injection, the new model is now 300XRX-E. The 300XRX-E will look exactly the same as the 300XRX exception for very minor changes: it does not come with center review mirror anymore, headlight upgrades to LED, and it is EFI now.bigger front and rear tires!
When you're investing in motorsports, make sure you get your moneyÂ’s worth by working with the best in the business.Affordable Atv offers unbeatable prices on the Trail-master-300XRX-E EFI Upgraded Go Kart, and itÂ’s backed by a 1-year warranty.
Key selling feature:
17.4 HP Powerful 300cc CVT fully automatic with reverse engine, Liquid cool
EFI (Fuel injection)
Shaft driven 4 wheel independent suspensions
Aluminum wheels
Digital speedometer/odometer
Stainless steel performance muffler
Four-point safety seatbelt
Electric start with kill switch
Large tires with 20X7-8 in the front and 22X10-10 in the back, steel wheel
Individual sporting seats
LED head light
12 volt power supply
Bikini sunshade top
Adjustable driver seat: pedal to seat back adjustable from 41” to 46”
Adjustable heavy duty front and rear shock absorber
Rack and pinion steering wheel
Front and rear hydraulic disc brake
Four-point harness seatbelt
Parking brake
4-wheel fenders
Turn signals
Horn
Trailer hitch
Large rear utility rack
Large gas tank
Other Details
Technical Specs
Parts breakdown set up manuel
300 XRX | Parts | Owners Manual |
Engine type: 4-stroke, single cylinder, water cooled | |||||
Displacement: 300cc | |||||
Fuel system: EFI | |||||
Max HP: 17.4hp/6500rpm | |||||
Max torque: 16 lb ft/5000rpm | |||||
Bore x stroke: 2.85x2.63 inches | |||||
Max speed: 50 mph | |||||
Climbing ability: 18 degrees | |||||
Ignition: C.D.I | |||||
Starting system: Electric | |||||
Battery: 12V 10Ah | |||||
Engine oil: SAE 15W-40 | |||||
Gear oil: MoS2&W-2WD-4D | |||||
General Information | |||||
Clutch: Automatic CVT with reverse | |||||
Driveline / Driving wheel: Chain+Shaft / Dual wheel drive | |||||
Suspension F / R: Double A-arm / Independent Swing-arm | |||||
Brakes, F / R: Both hydraulic brakes, Disc | |||||
Tires, F / R: 20x7-8 / 22x10-10 | |||||
Fuel capacity: 2.25 gal | |||||
Weight, G.W. / N.W.: 705 lbs / 617 lbs | |||||
Max load: 500 lbs | |||||
Dimension Information | |||||
Wheelbase: 66.1 inches | |||||
OA L x W x H: 90.5x53.1x57.1 inches | |||||
Height to seat: 13.8 inches | |||||
Min ground clearance: 8.5 inche |
