Product Description
Model #: New LH 300 W

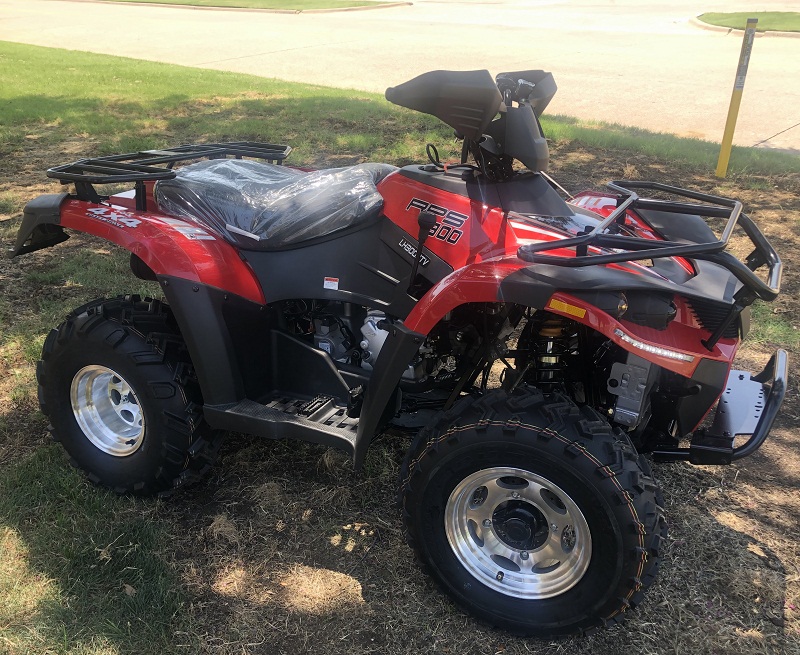

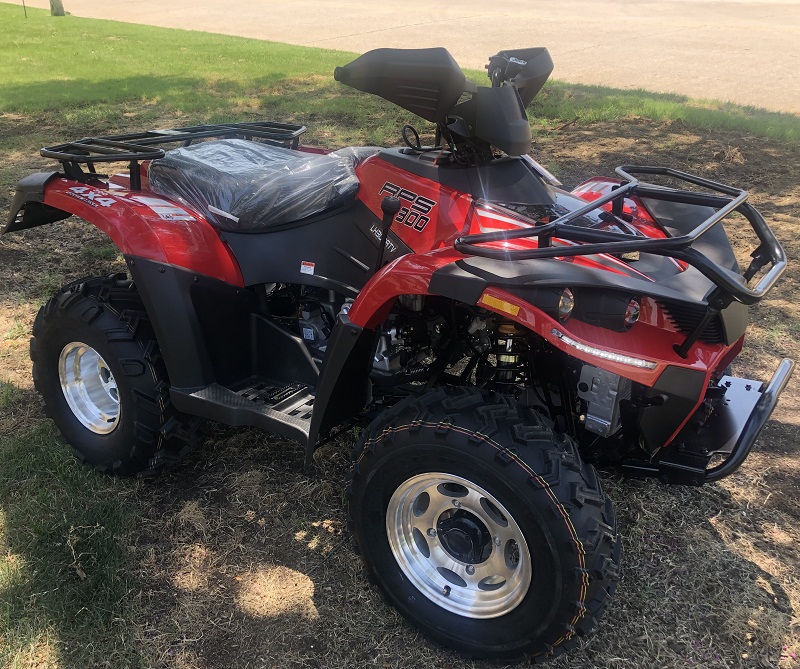

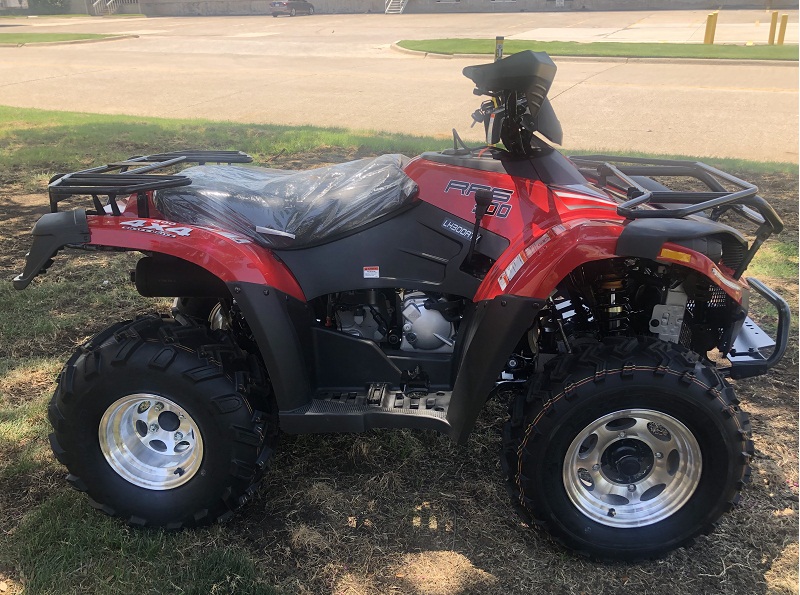

RPS BRAND NEW 300CC ATV
Note: The newer model only comes with 1 rear disc brake and 2 disc brakes on the front wheels.
(With Rear Seat, Bluetooth & Winch)
The RPS 300CC ATV 4x4 offers a robust setup for riders seeking both power and versatility in off-road performance. This ATV is driven by the LH173MN engine, a 4-stroke, single-cylinder engine with a carburetor fuel system, and is water-cooled to manage high performance. With a compression ratio of 10.3:1 and a displacement of 257cc, it produces a strong 22 HP at 6500 RPM and reaches a maximum torque of 14.8 lb-ft at 5500 RPM, providing ample power for tackling challenging terrains Affordableatv.com
Designed with versatility in mind, the RPS 300CC comes with a 2WD/4WD drive system, enabling the rider to switch between two-wheel and four-wheel drive depending on the terrain. This adaptability, along with an electric start and T.C.I ignition, ensures a reliable start and smooth ride. The ATV’s ground clearance of 7.2 inches offers additional stability on uneven paths, while its dimensions—83 inches in length, 46 inches in width, and 50 inches in height—make it spacious yet maneuverable, suitable for various outdoor conditions.
This RPS ATV is ideal for adventure enthusiasts who need a balance of power, control, and adaptability. Its powerful engine, combined with a flexible drivetrain and ample ground clearance, makes it well-suited for recreational trails and demanding off-road adventures
Other Details
Engine specification:
Engine model : LH173MN
Engine Type : Carburetor, 4 Stroke, Single Cylinder, SOHC, Water Cooling
Bore & stroke : 2.85*2.63 in
Volumetric Compression Ratio : 10.3:1
Displacement : 257cc
Drive System Type : 2WD or 4WD
Ignition type : T.C.I
Start type : Electric
Maximum power (Kw /r/min) : 22 HP @ 6500 RPM
Maximum Torque (Nm /r/min) : 14.8 lb-ft @ 5500 RPM
Overall Vehicle Size (L x W x H) : (Inches) 83x46x50 / (mm) 2108x1168x1270
Ground Clearance (inch) : 7.2 in
Wheelbase (inch) : 51 in
Weight with full equipment : 618 (lbs) / 280 (kg)
Front / Rear Brakes : Two sides hydraulic disc
Parking Brake : Front / Rear hand brake,Foot brake
Front Tires : AT24X8-12
Rear Tires : AT24X11-10
Front Suspension : McPherson independent suspension
Rear Suspension : Socket centering structure
Fuel Capacity : 3.8 gallons
