Product Description
2021 EPA approved only, Not for sale in CA.
Delivery: Since the fully assembled and tested version will be too big to fit on a lift gate the Freight must be picked up at your local terminal SEE YOUR LOCAL TERMINAL HERE. PLEASE ALLOW 3 TO 5 BUSINESS DAYS ADDITIONAL PROCESSING TIME.

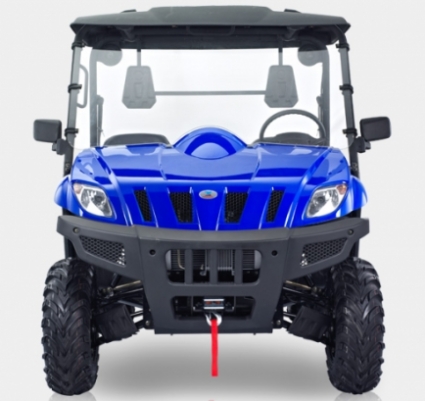

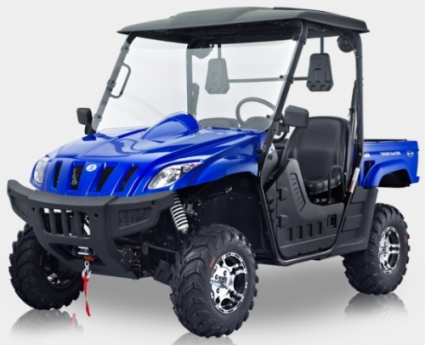

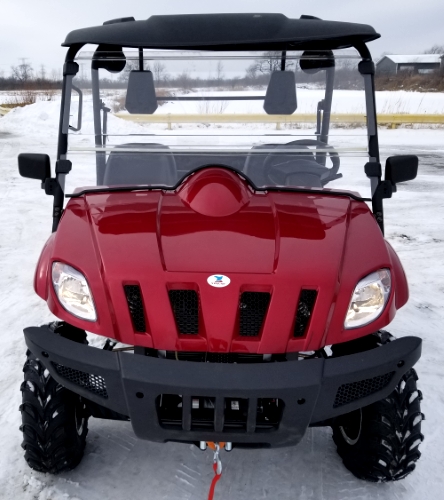

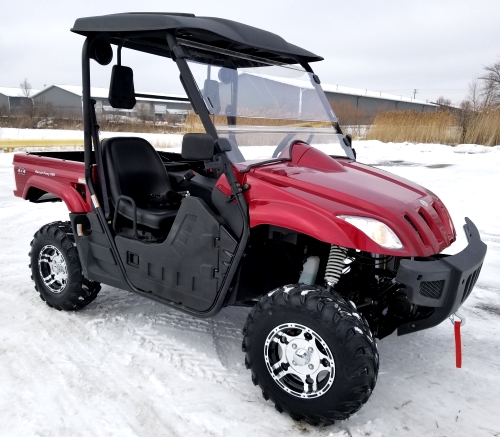

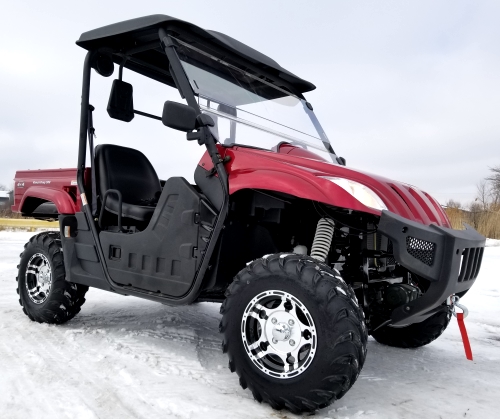

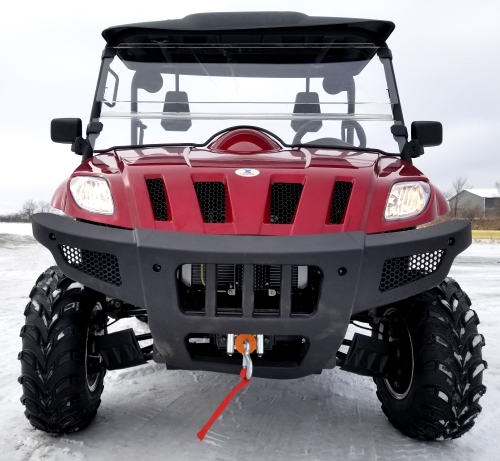

BMS Ranch Pony 500cc Utility, Vehicle with Automatic Transmission, w/Reverse, 4x4 Shaft Drive
BEST IN-CLASS MID-SIZE SIDE X SIDE
The BMS® Ranch Pony 500 Comes with a 493cc Engine, 34HP and 45 ft-lb of torque, Fully Automatic CVT Transmission with high and low gear, on-demand 2WD/4WD with lock Differential, offering the best performance for play or daily work around the farm.
POWERFUL & RELIABLE
POWERFUL & RELIABLE
The BMS® Ranch Pony 500 Features a Powerful 37 HP EFI Engine. Single Cylinder, 4- stroke Water and Oil Cool combined Fully Automatic CVT Transmission with High and Low gear. On-Demand 4 wheel drive 2 wheel drive (4x4/2x4)
ENGINEERED TO NEW HEIGHTS
ENGINEERED TO NEW HEIGHTS
The BMS® Ranch Pony 500 Offers Comfort, Convenience, and Capable Workhorse Designed to Conquer Tough Jobs in both Recreation and Utility Purpose with Superior Off-road Stability and Capability
FARMING DONE RIGHT
FARMING DONE RIGHT
The BMS® Ranch Pony 500 Offers Comfort, Convenience, and Capable Workhorse Designed to Conquer Tough Jobs in both Recreation and Utility Purpose with Superior Off-road Stability and Capability
EXTREME STABILITY
EXTREME STABILITY
The BMS® Ranch Pony 500 Features 60-in width front and 62-in rear track for Extreme stability and ultimate performance.
Features
Other Details
Technical Specs
ENGINE & DRIVE TRAIN | |
Engine Type | 4-Stroke/SOHC |
Displacement | 493cc |
Horse Power | 34 HP. |
Bore Stroke | 87.50 X 82.00mm |
Fuel System | Electronic Fuel Injected (EFI) |
Cooling System | Water/Oil Cooled |
Transmission | L-N-H-R Fully Automatic |
Drive System | 4WD on Demanad |
Brake System | 4-Wheel Hydraulic Disc Brake |
Engine Oil | 10W/40 |
DIMENSIONS & CAPACITIES | |
Overall L x W x H | 119.0 X 62.0 X 75.0in |
Package size | L91 x W64 XH50 1,675 lbs |
Seat Height | 33-in |
Cargo bed size | L 32 x W 51 x H12 inch |
Cargo Bed Capacity | 400 lbs |
Rider Capacity | 2 Person |
Rider Load Capacity | 600 lbs |
Towing Capacity | 1212 lbs |
Gross Weight | 1,760 lbs |
Net Weight | 1,305 lbs |
Fuel Capacity | 7.7 Gallons |
Oil Capacity | 2.22 US qt |
SUSPENSION & CHASSIS | |
Front Suspension | Independent Dual A-Arm |
Rear Suspension | Independent Dual A-Arm |
Wheel base | 76" |
Ground Clearance | 11" |
Climbing Ability | ≥ 30° |
Front Travel | 8-in |
Rear Travel | 10.5-in |
Front Tires | AT25 x 8 12 Radial |
Rear Tires | AT25 x 10 12 Radial |
Shocks Dimensions | L400 mm, W41 mm |
OTHERS | |
Ignition Type | ECU (Electronic Control Module) |
Battery | 12V x 35Amp |
Lubrication | Wet Sump |
Instrument Cluster | Digital |
Cargo bed operation | Manual |
Vehicle Width | 62" |
Emission Control | EPA/CARB |
Government Certificate | EPA/CARB |
Age Restriction | 16 |
