Product Description

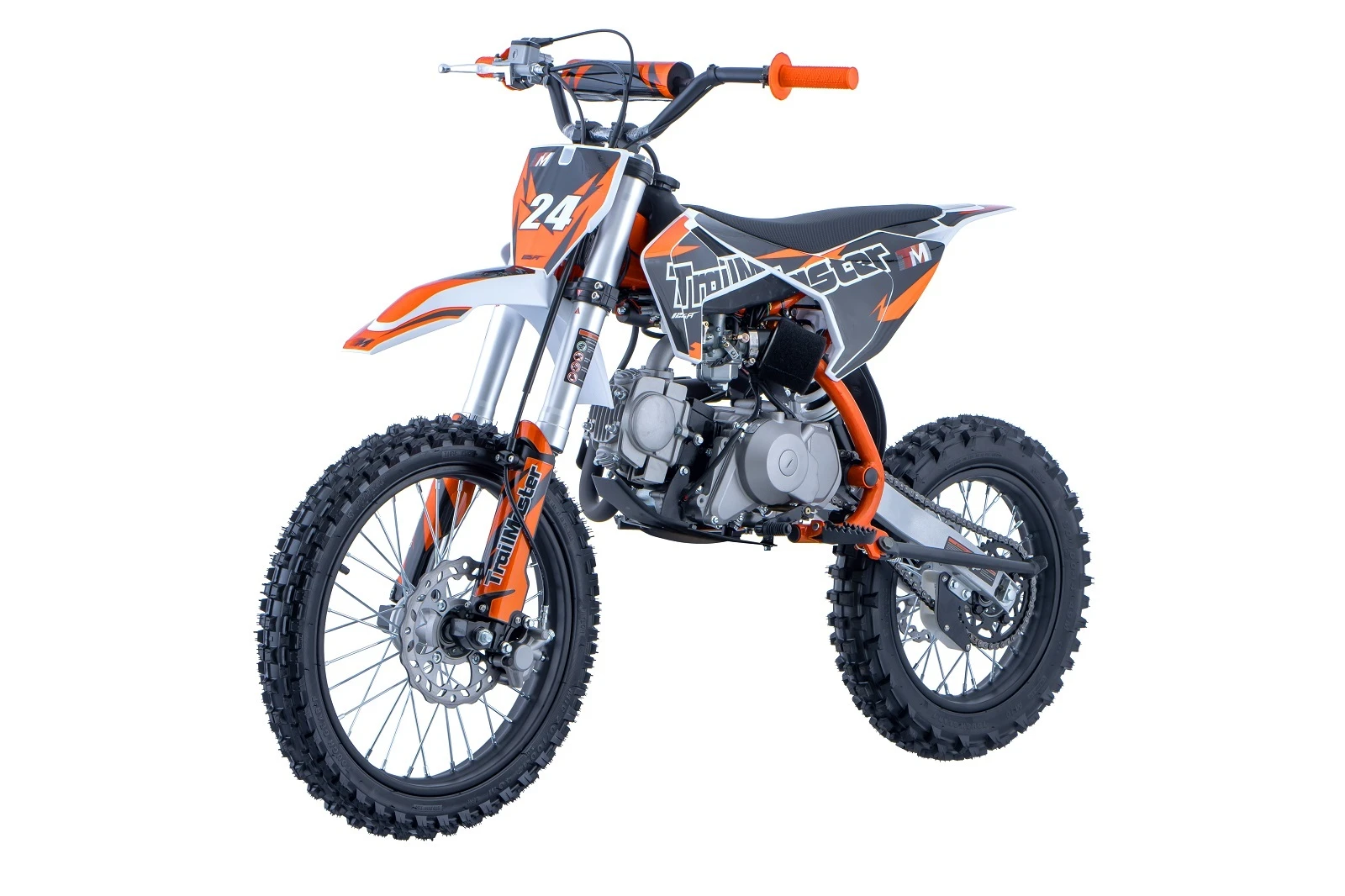

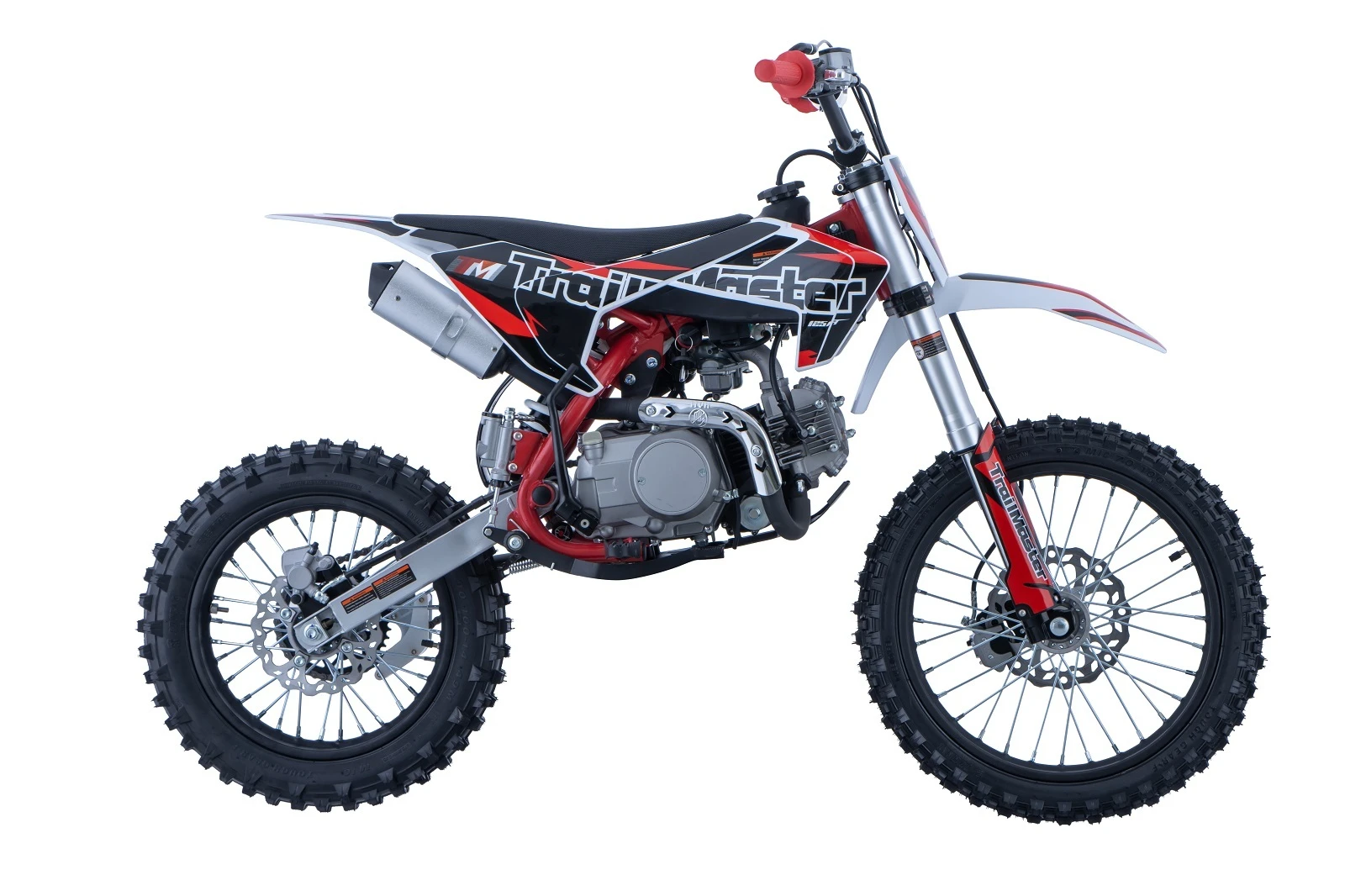

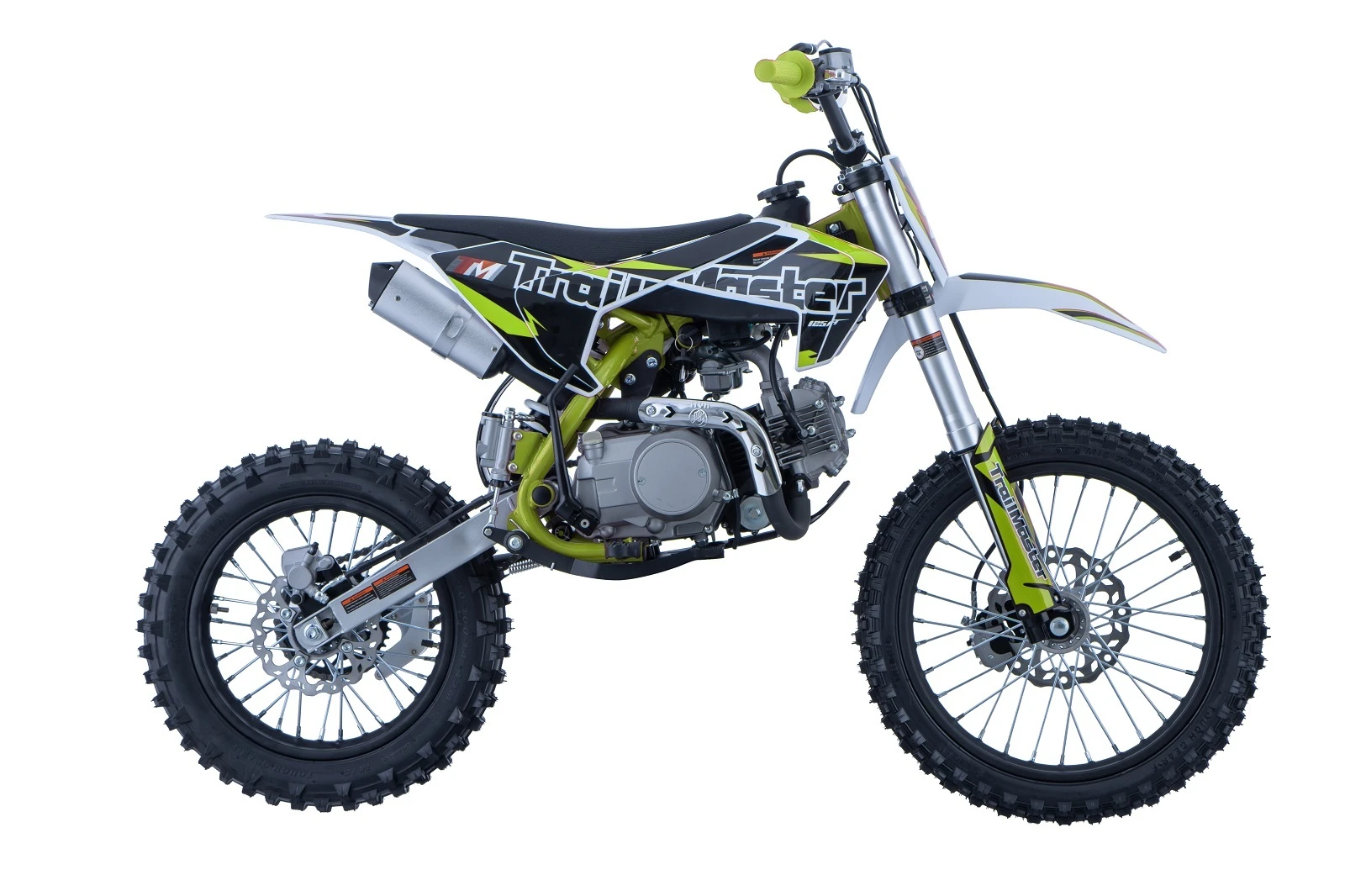

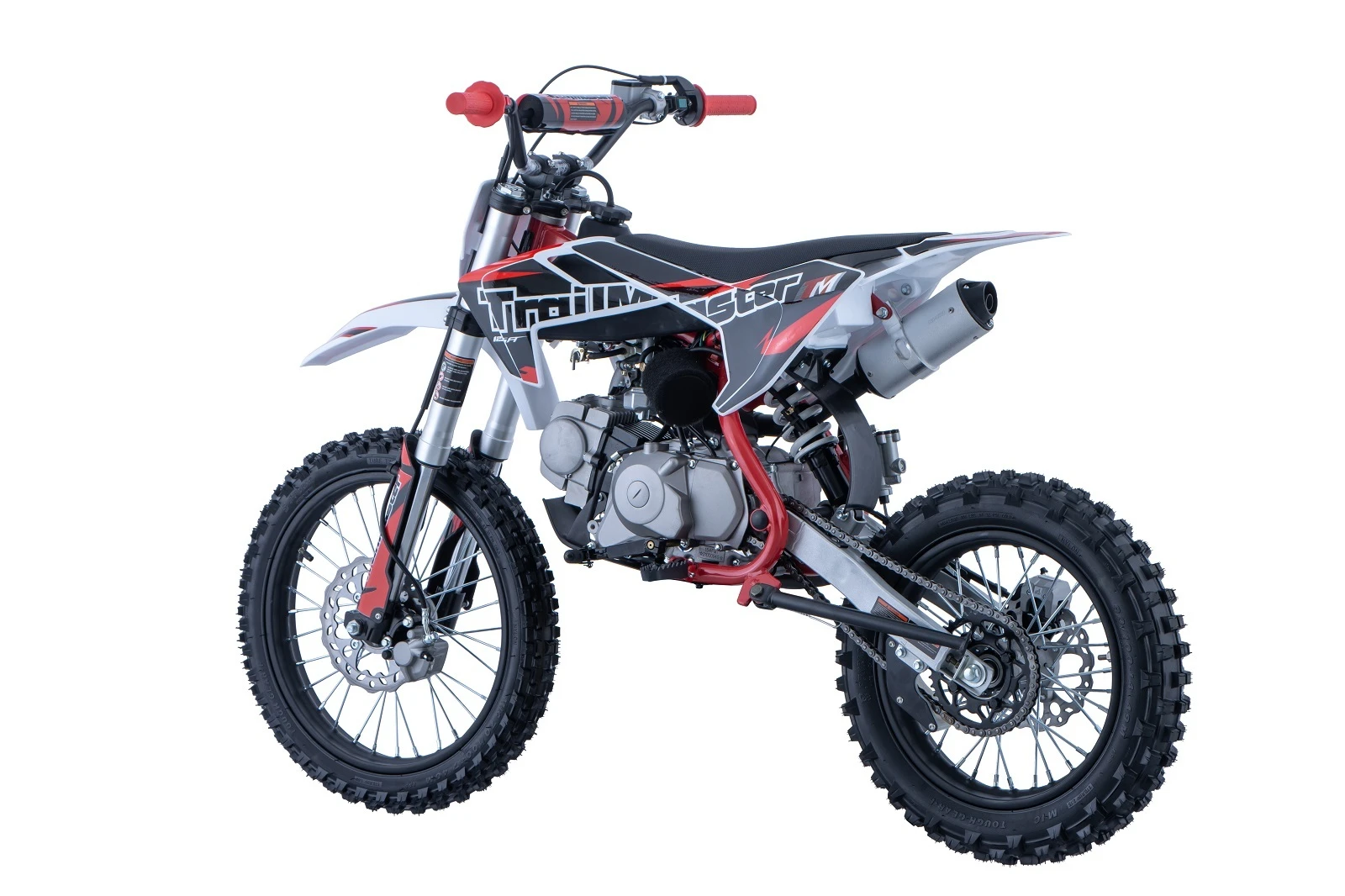

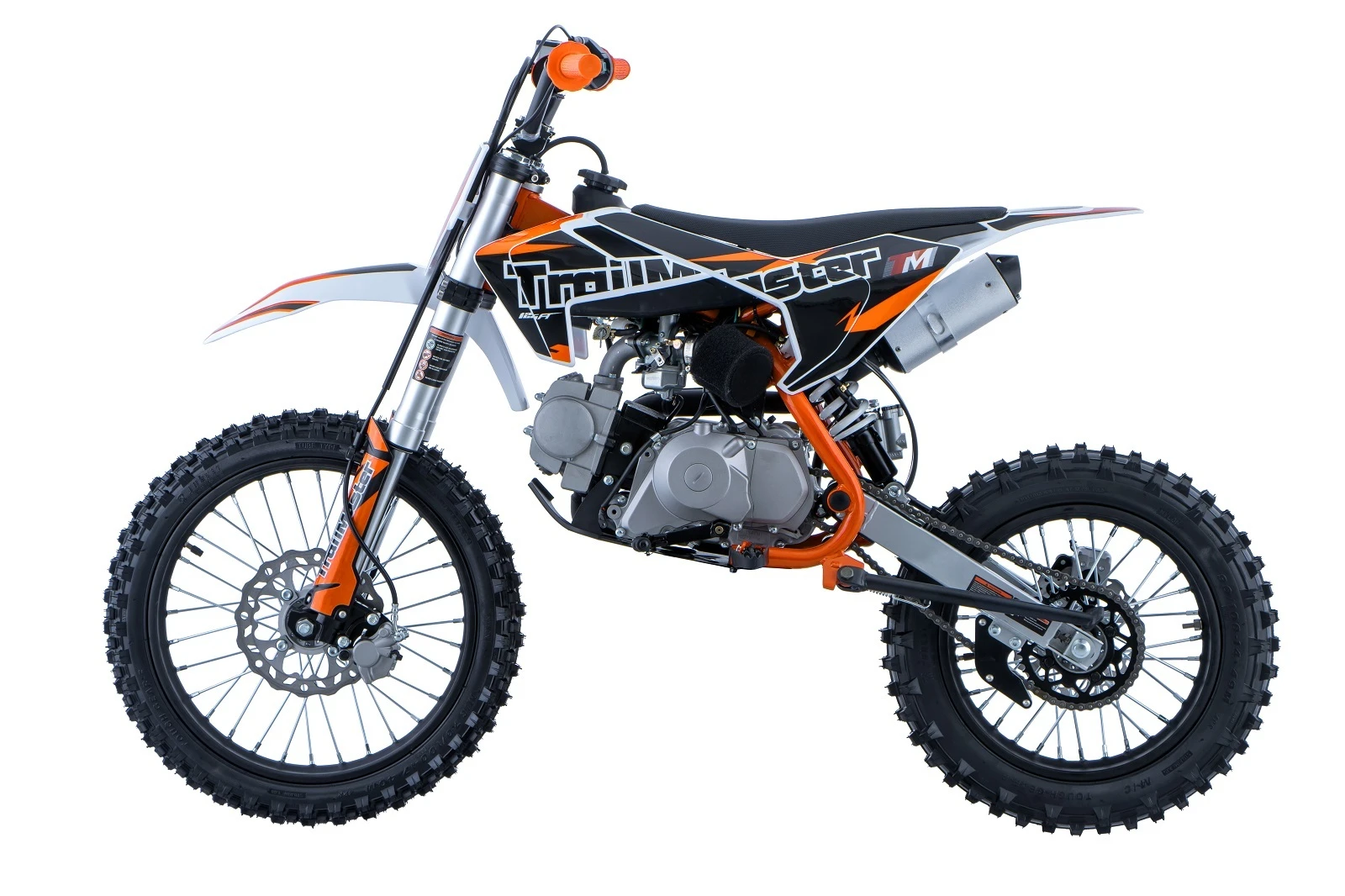

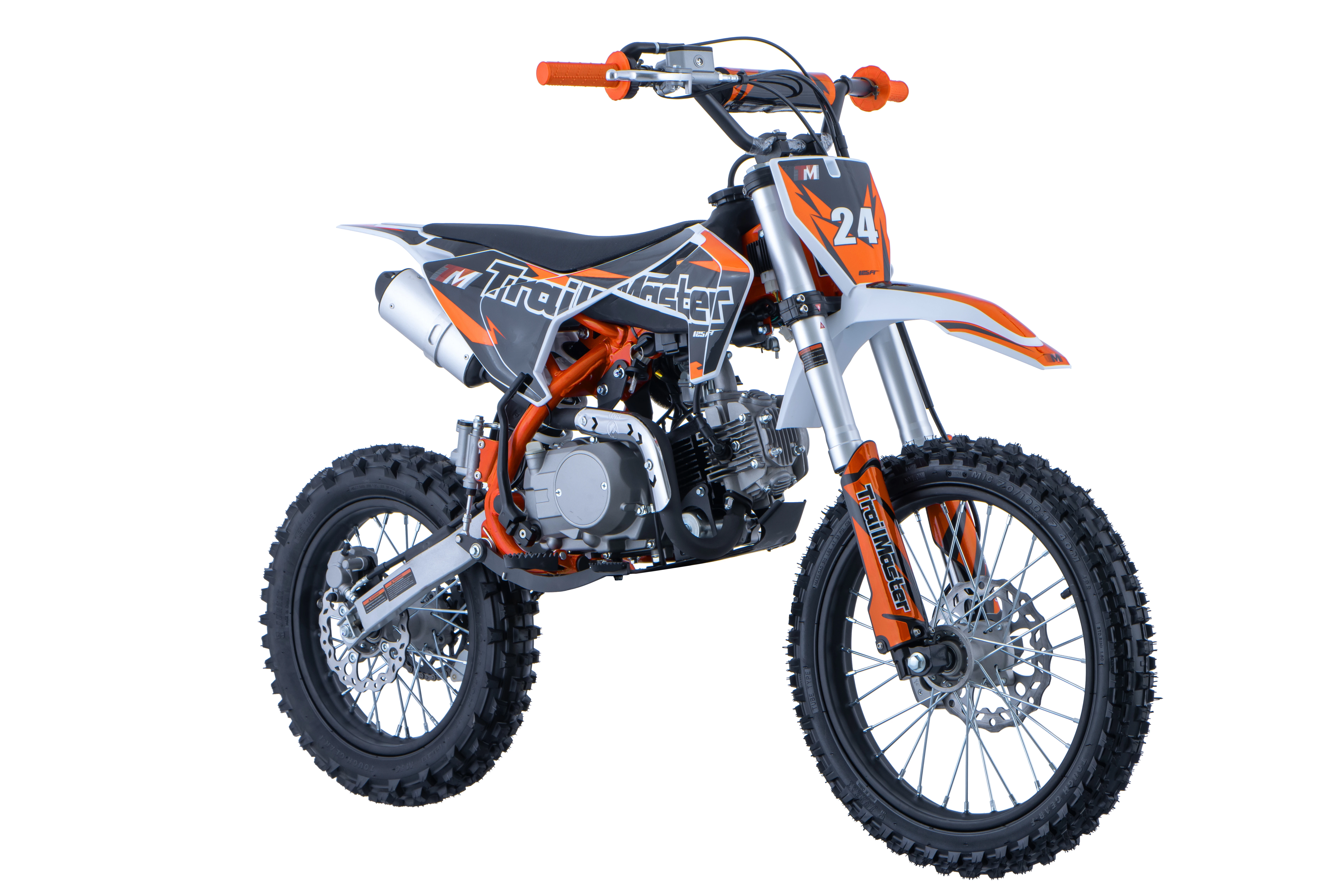

Trailmaster Tm24 Dirt Bike, Zm125Cc 4-Stroke Kick Start
- Powerful 125cc engine
- Kick start 4-gear manual shift
- Large tires with 17” front and 14” back
- Inverted front shock
- 42’3 “ wheel base and 32.7” seat high
- Hydraulic front and rear disc brakes
- Aluminum handle bar
Other Details
Engine System | |
Engine Type | ZM125cc, Single Cylinder, 4-Stroke, Air Cooled |
Displacement | 124 ml |
Max Power | 6.2(1±10%)/7000(1±5%) kw/r/min |
Max Torque | 9.0(1±10%)/5000(1±5%) N.m/r/min |
Compression Ratio | 9.6:1 |
Shift Type | N-1-2-3-4, Four-Gear, Automatic Clutch |
Start Type | Kick Start & Electric Start |
Ignition | CDI |
Transmission | Chain Drive; #428,14/41T |
Size Data | |
L x W x H | 64.2"X29.5"X41.5" |
Wheel Base | 42.3" |
Tires | FT: 70/100-17 - RR: 90/100-14 |
Seat Height | 32.7" |
Ground Clearance | 13.6" |
Fuel Capacity | 3.5 L |
Min. Fuel Consumpetion: | ≤367g/kw.h |
Max Range: | ≤10.5mile |
Engine Oil #: | SJ5W一30 |
Frame/Suspension/Brake/Wheel system | |
Frame | Cradle Type Steel Tube Frame |
Front Fork | Inverted 45*48-700mm Forks, Non-Adjustable |
Rear Shock | ï¿ 10*275mm , Non-Adjustable |
Swing-Arm | Steel Tube |
Handle Bar | Aluminium Crossbar ,L=720mm; Dia=22mm |
Wheels | Steel 1.6 x 17" / 1.85 x 14" Rims, Cast Hubs |
Front Brake | Hydraulic Single Piston Caliper, 210mm Disc |
Rear Brake | Hydraulic Single Piston Caliper, 190mm Disc |
Exhaust | Stainless Steel Header Pipe, Haxagon Aluminum Silencer |
Packing and Loading | |
Packing Size | 54.5"X14.8"X29.7" |
N.W/LBS | 134.5 LBS |
G.W/LBS | 161 LBS |
More Pictures
