Product Description

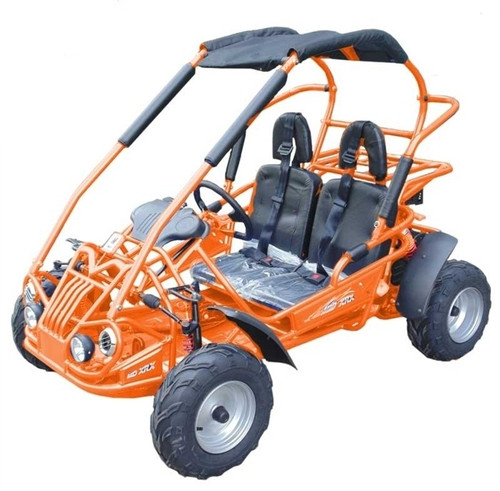

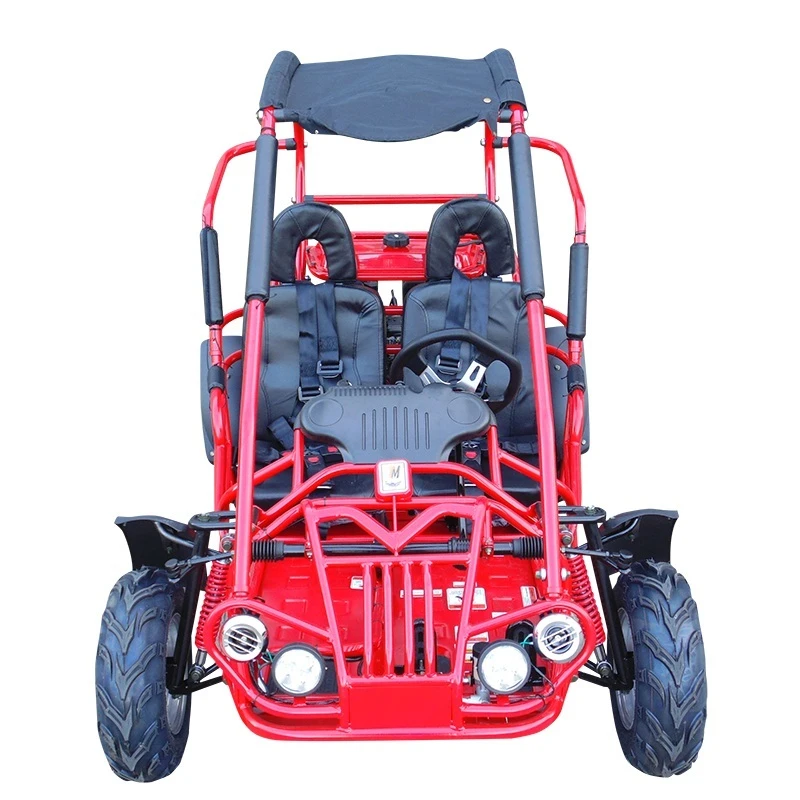

TrailMaster Mid XRX/R, 4-Stroke, Single Cylinder, Air Cooled GoKart
TrailMaster's newest Mid sized XRX go kart now comes with reverse for easier handling on and off the trails! Meet the all new Mid XRX/R! This go kart hits the trails with a powerful 200cc engine, a full front and rear suspension and a tough, all welded steel frame for extra durability. Electric start, rear hydraulic disc brakes and an adjustable seat make the XRX/R easy to ride for novice and seasoned drivers alike.
Standard Features:
- Heavy Duty Frame!
- Light Kit Package!
- Dual Seats!
- Cargo Rack!
- Disc Brake
- Throttle Limiter Speed Control

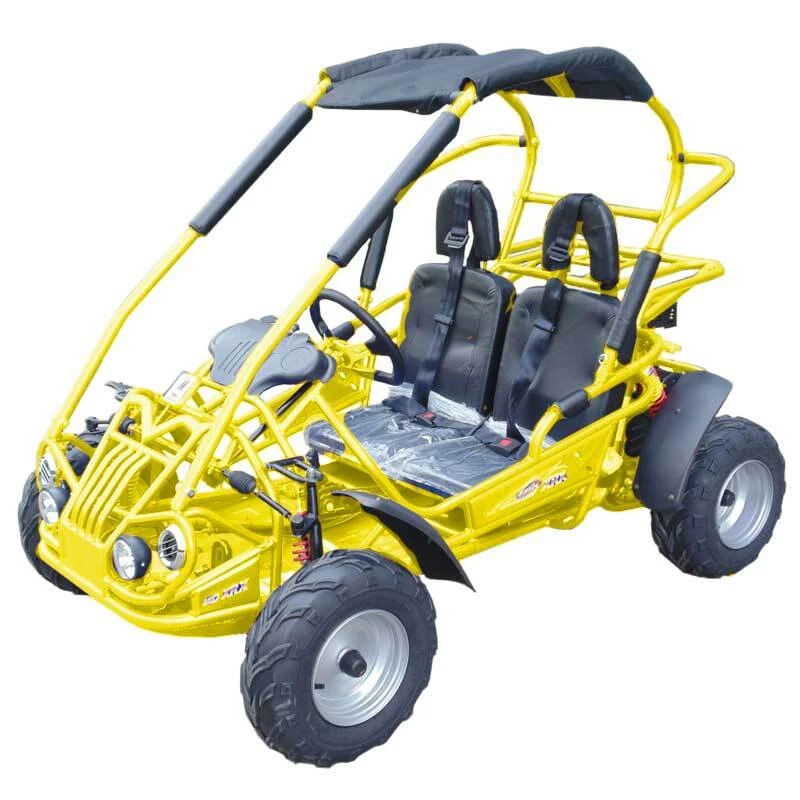

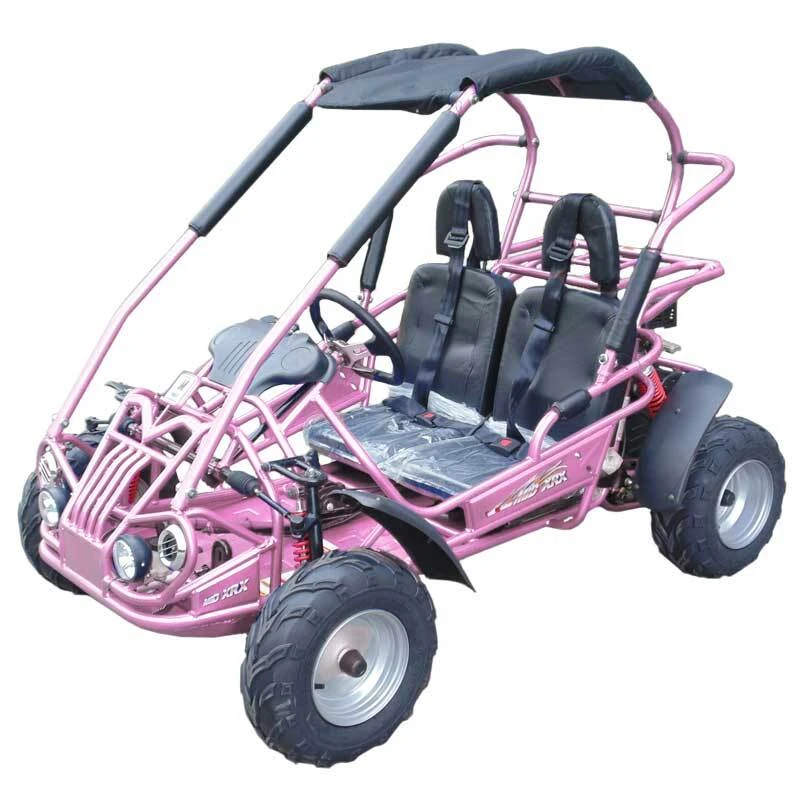

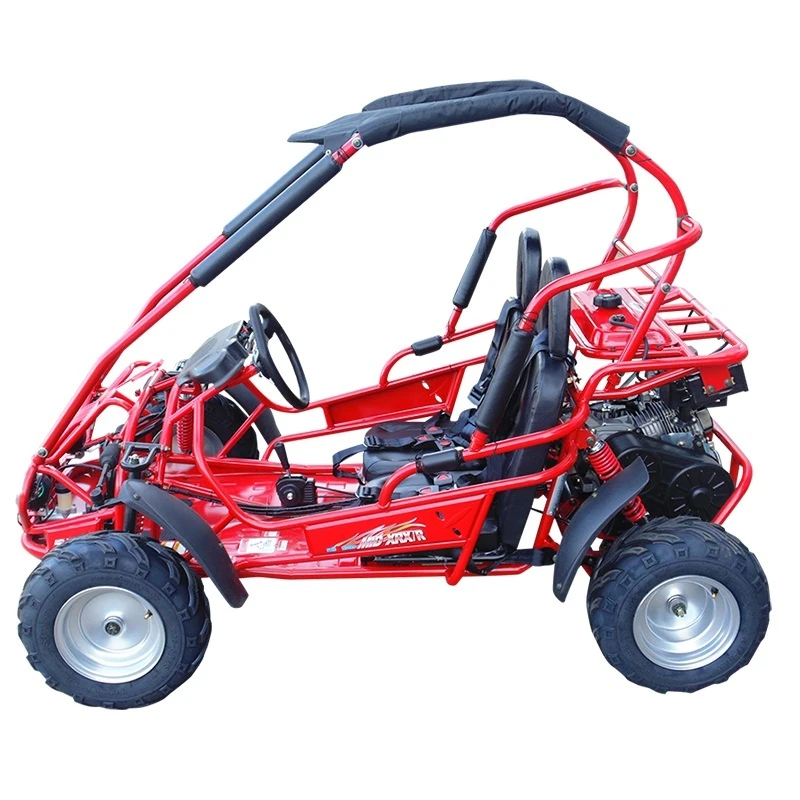

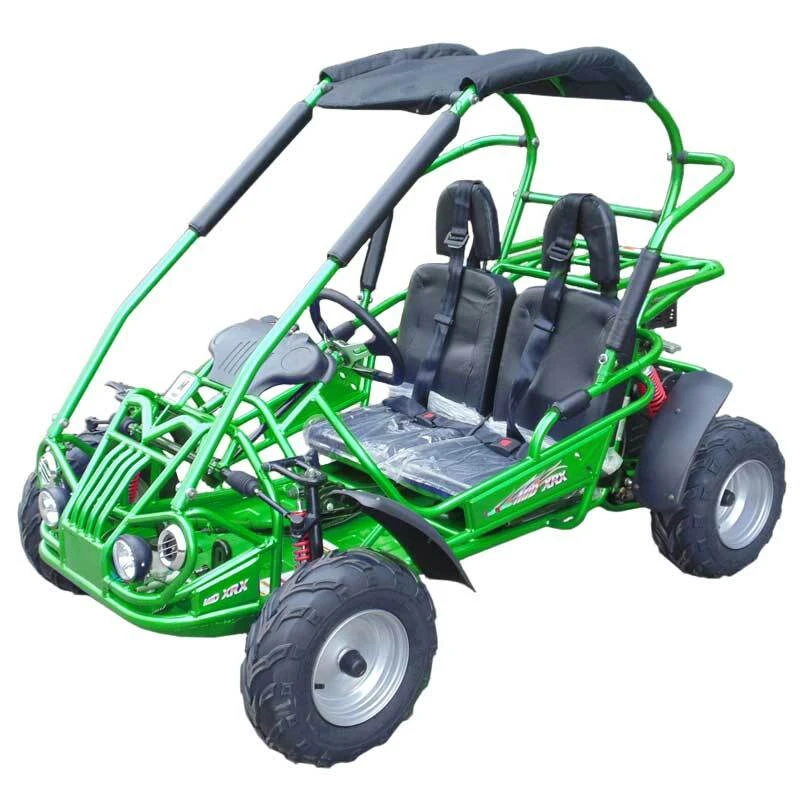

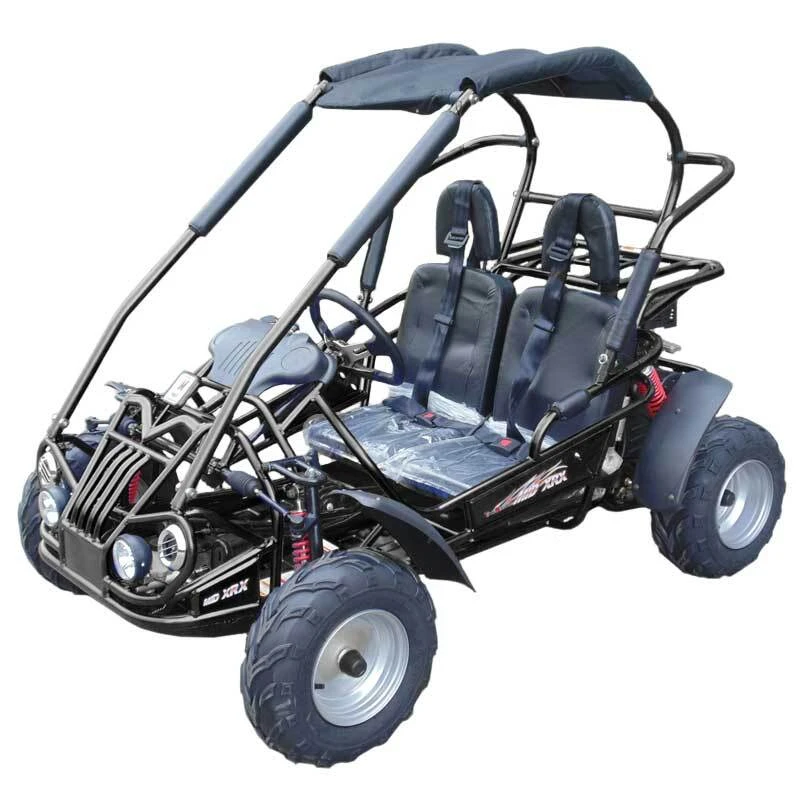

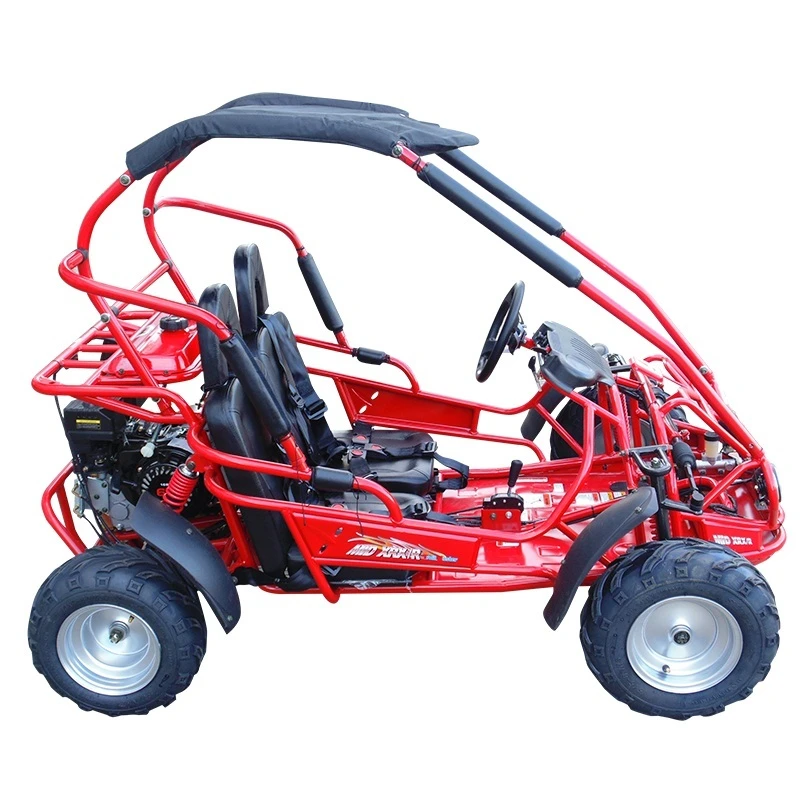

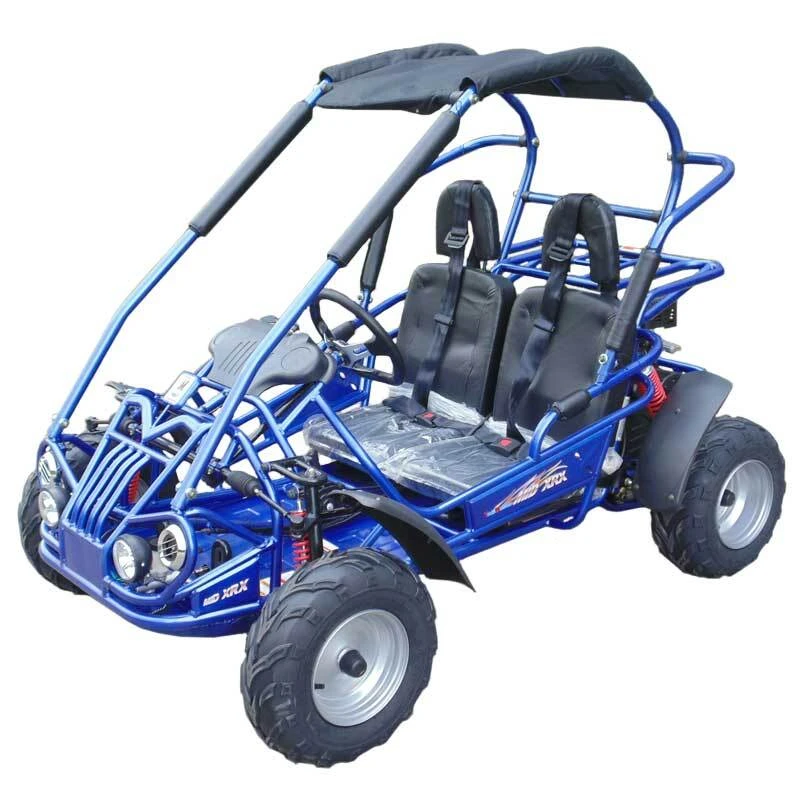

This model comes in black, blue, orange, green, pink, Yellow and red colors.
Other Details
TECHNICAL SPECS
Parts breakdown set up manuel
MID XRX/RÂ Parts | Â | Â |
Engine type | 4-stroke, single cylinder, air cooled |
Displacement | 200cc |
Max HP | 6.3hp/3600rpm |
Max torque | 9.6 lb ft/2500rpm |
Bore x stroke | 2.6 x 2.1 inches |
Max speed | 31mph |
Climbing ability | 12 degrees |
Ignition | C.D.I |
Starting system | Electric Start with Pull Start backup |
Battery | 12V 9Ah |
Engine oil | SG15W-40 |
Transmission | Automatic CVT with REVERSE |
Driveline / Driving wheel | Chain / Dual wheel drive |
Suspension, F / R | Double A-arm / swing-arm / Double Oil Damped Shock |
Brake | Hydraulic Disc brake |
Tires, F / R | 16x6-8 / 16x7-8 |
Fuel capacity | 1 gal |
Weight, G.W. / N.W. | 386 /330 lbs |
Max load | 400 lbs |
Wheelbase | 48.4 inches |
L x W x H | 67 x 43.3 x 51.2 inches |
Height to seat | 10.2 inches |
MinGround clearance | 2.8 inches |
Pedal to seat back distance | 31.5 + 40.5 inches" |
Notes | EPA certificated |
Product Dimensions
• L x W x H: 1700x1100x660 mm
• L x W x H: 66.93x43.31x25.98 inches
• Volume : 1.23/43.44
• Weight : 400
