Product Description
Racing Competition Only
( EPA and CARB Approved )

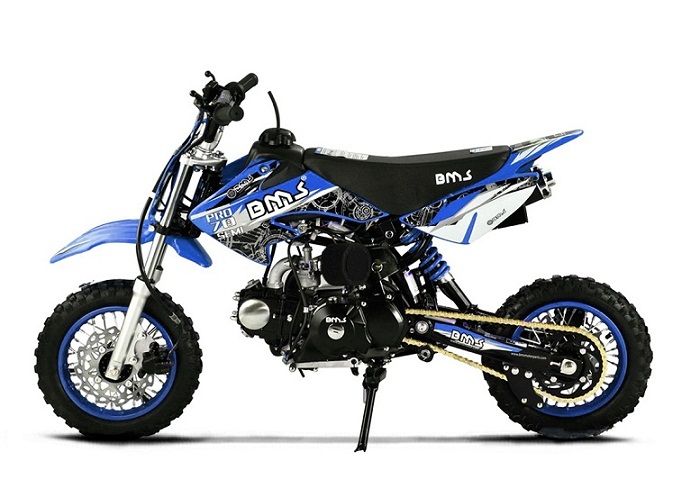

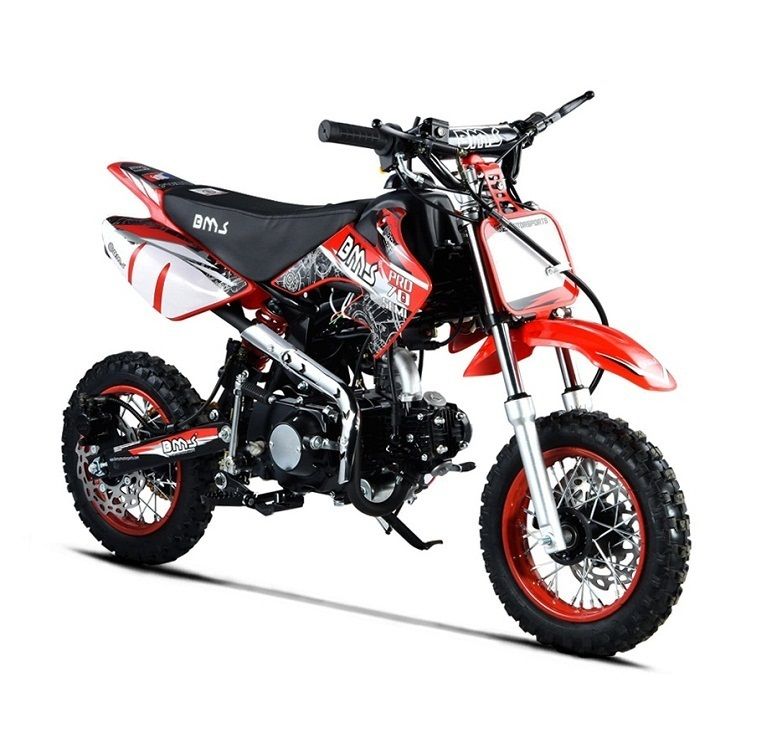

BMS PRO 70 SEMI, 70CC SINGLE CYLINDER 4-STROKE, AIR COOLED
Features
BMS® PRO-70
Other Details
Technical Specs
ENGINE & DRIVE TRAIN
Engine Type : 1 Cylinder 4 Stroke
Displacement : 70cc
Horse Power : 4.69
Bore Stroke : 47mm x 41.4mm
Fuel System : 16mm Carburetor
Cooling System : Air Cooled
Transmission : Semi-Automatic
Drive System : Chain Drive
Brake System : Front & Rear Hydraulic Disc
Engine Oil : SAE 10W-30/15W-40
DIMENSIONS & CAPACITIES
Overall Length×Width×Height : (Inches)56 x 22 x 33 / (mm)1422 x 558 x 838
Seat Height : 25.5"
Rider Capacity : 1 Person
Rider Load Capacity : 132 lbs
Gross Weight : 143 lbs / 65 kg
Net Weight : 114 lbs / 52 kg
Fuel Capacity : 0.79 Gallon
Oil Capacity : 1 Us qt
SUSPENSION & CHASSIS
Front Suspension : Telescopic Fork
Rear Suspension : Rear Swing A-arm
Wheel base : 44 inches
Ground Clearance : 7"
Climbing Ability : 12º
Front Tires : 2.50-10
Rear Tires : 2.50-10
OTHERS
Ignition Type : CDI
Battery : 12V 3Ah
Lubrication : Wet Sump
Instrument Cluster : n/a
Vehicle Width : 24"
Emission Control : Off-Road Racing Only
Government Certificate : Off-Road Racing Only
Age Restriction : 10 years & older
More Pictures
