TrailMaster JHL Pro Series EFI TM MK125E Dirt Bike for Riders

Intrigued? Drop in and check it out live! For Local Pick Up Please Come To Our Showroom Below Affordableatv 711 106th St suite b Arlington, TX 76011

have questions? Email an expert

(844) 785-7713 Ask an Experts

We will follow up with you via email within 24-48 hours.

Please answer the following questionnaire

Do you need: Pricing Answers Both

What can i help you with today ?

How would you like me to contact you ? Phone Email Both

Comments/Questions Required

TrailMaster

TrailMaster JHL Pro Series EFI TM MK125E Dirt Bike for Riders

$1,549.95

Did you find a cheaper price ? Request a price match here.

SKU:

TM-MK125E-DIRT-BIKE

Assembly Package: *

1st Color Choice: *

2nd Color Choice: *

Order Processing Time: *

MCO / TITLE PROCESSING: *

Warranty: *

Terms & Conditions: * I AGREE Please read our terms and conditions if you have any questions please email us.

Current Stock: 60

Quantity:

Financing our Products:

If you have a good credit score, please use Bread Pay as your first finance option (Add the item to your shopping cart then choose Bread Pay as your payment option). If you are denied with Bread Pay you can apply with the following link to get your finance approved with Once you are approved with American First Finance please give our Finance department a call or text @ 817-825-8517 or 682-331-9451
Shipping and Fuel surcharge Notice:: About 99% of the customers will not get any shipping / Fuel surcharges, however only about 1% of the customers might get the surcharges on a case by case basis. Shipping to a very far away states and some rural area will incur extra shipping charges like NY, WA, SD, ND, MI, WA, CA, MT, OR, NV, ME, MA,PA, CT, DC, NH, NE and the East Coast etc will be extra due to excessive fuel surcharges, and shipping to any islands will be extra. Please place your order normally if there are any extra shipping charges we will call you to inform you if not we will process your order as normal. We do not ship it to Hawaii and Alaska. Thank you for your understanding.
Free shipping 48 contiguous states: Restrictions apply*

Overview
Other Details

Product Description

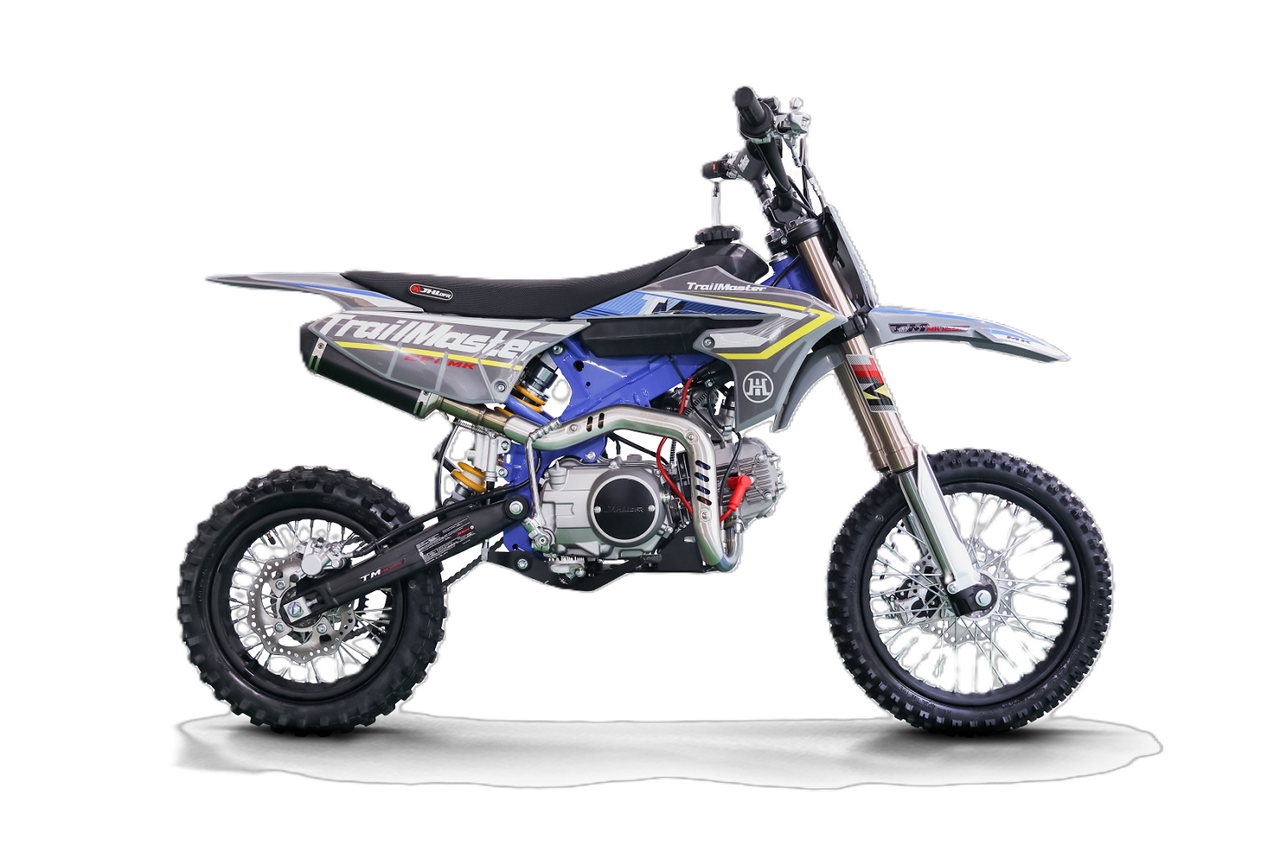

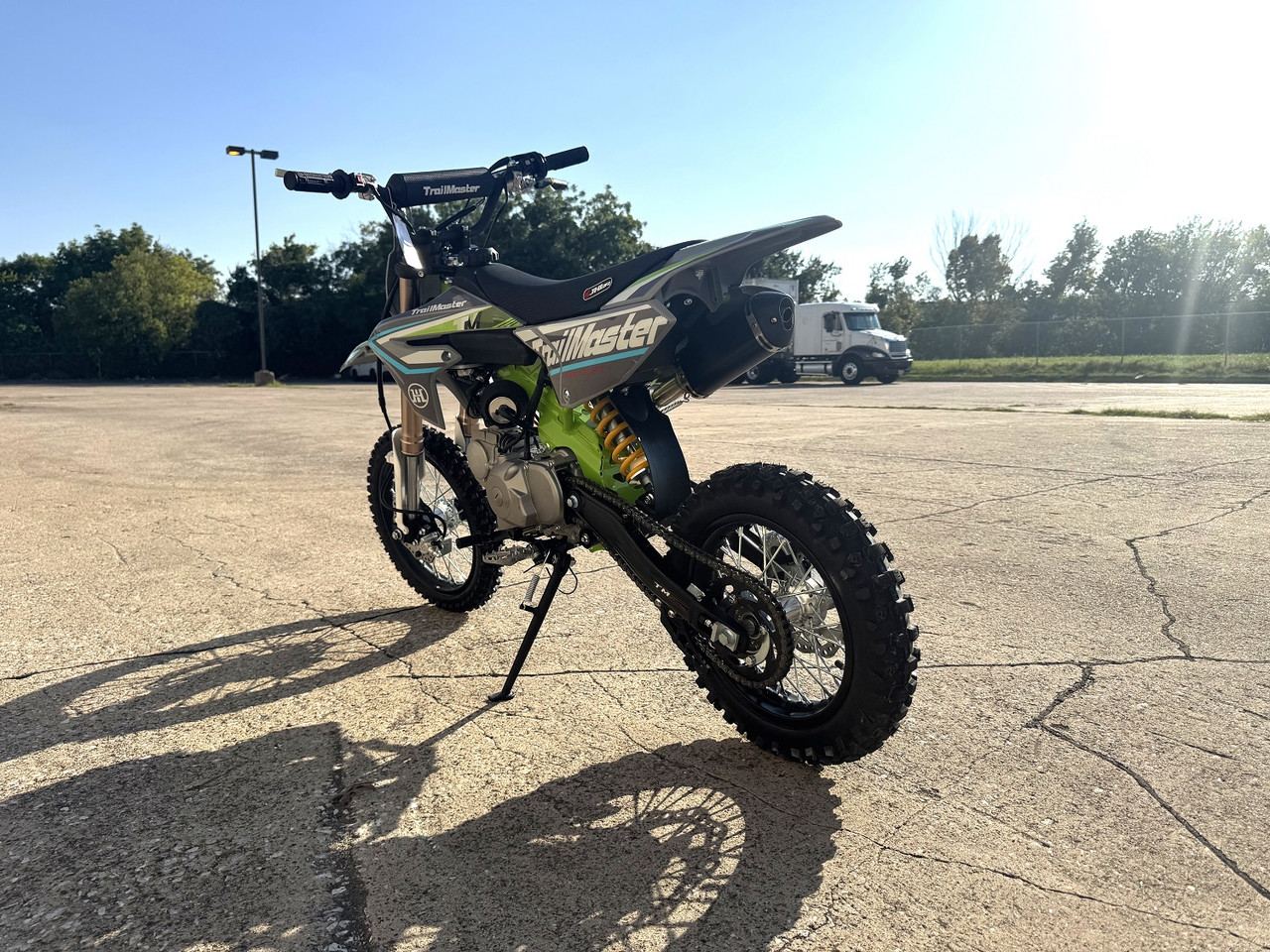

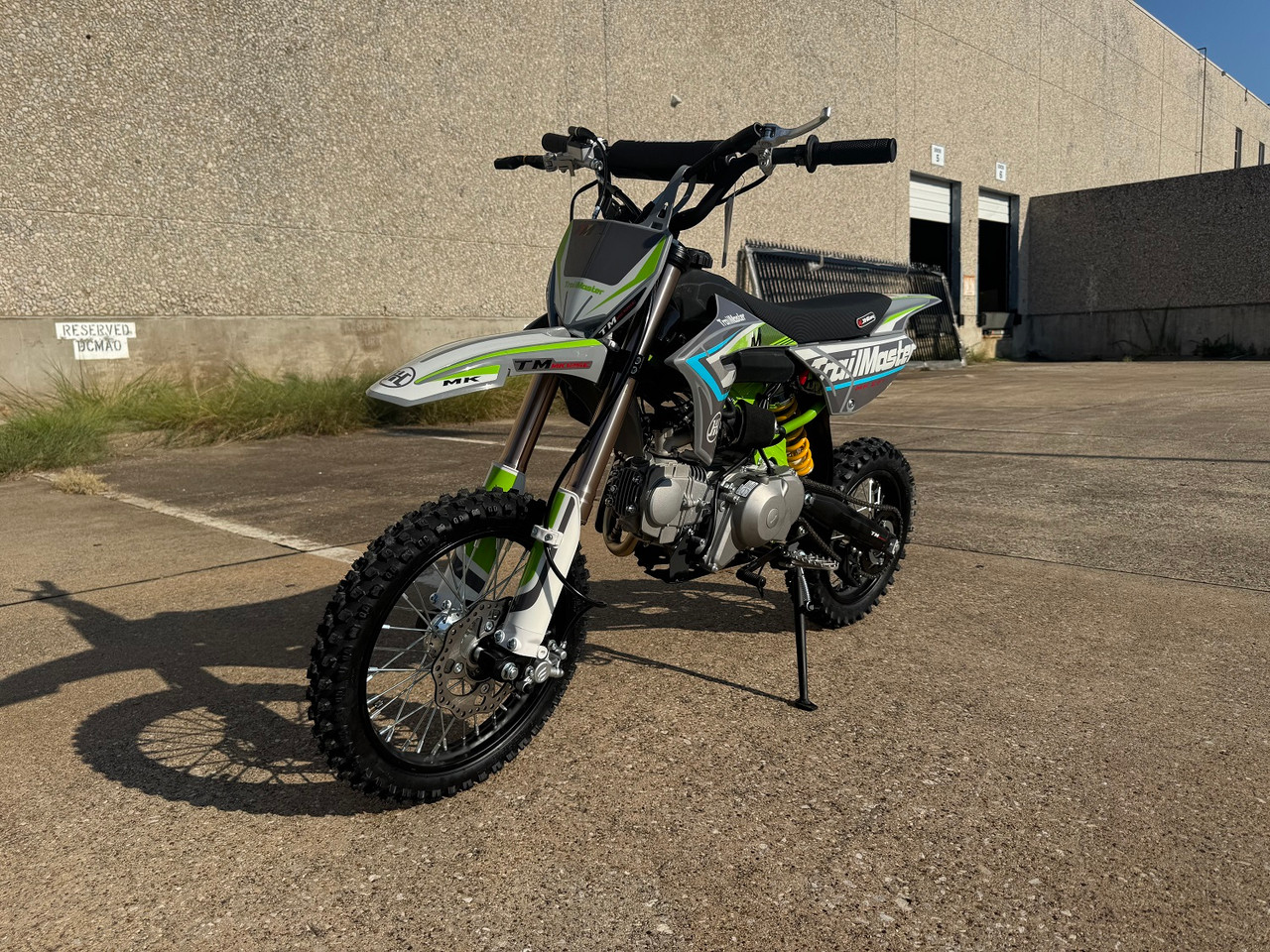

TrailMaster JHL Pro Series EFI TM MK125E – Compact 125cc Dirt Bike for Riders

The TrailMaster JHL Pro Series EFI Dirt Bike TM MK125E delivers power and reliability with its 125cc Bosch EFI 4-stroke engine, 4-gear transmission, and electric/kick start. Built on a strong steel frame with inverted front shocks, rear mono shock, disc brakes, and alloy hubs, this dirt bike ensures smooth handling and durability. With a 29.5" seat height, 260mm ground clearance, and stainless steel exhaust, it’s designed for riders who want performance, comfort, and control on any terrain.

Product Features

Bosch EFI
Electric and kick start
Famous brand name Zongshen engine
Newly designed strong frame
Inverted front shock absorber;
Nitrogen air gas rear shock absorber w/aluminum linkage
Performance stainless steel muffler
Alloy foldable handle levers
High quality alloy rims and hubs
Quality front and rear disc brakes

We are proud to share great news from our JHL Factory!

This past weekend, our JHL Factory Racing team attended the MXGP China in Shanghai racing against KTM, Honda, Yamaha, Kawasaki and Etc. in 3 racing groups!

On 9/12, Our racing team dominated the podium by winning the first three places in the H&H 250 using the LX250R! Attached you can find the racing result.

On 9/13, JHL Factory Racing team made history by racing the first Chinese machine ever to compete in MXGP- Grand Prix Race by our own 350cc!

Salute to our JHL factory!

You can find some pictures and videos for this race from this link: MXGP China 26

Other Details

TECHNICAL SPECS

Engine System

Engine Type: BS125 Single cylinder, four stroke , air-cooling
Displacement: 123.67 ml
Max Power: 6.3/7500 (1±1.5%)
Max Torque: 8.8/5500（1±1.5%）
Compression Ratio: 9.0:1
Shift Type: Four gear, non-circulate gear
Start Type: Electric/Kick Start
Ignition: EFI
EFI Brand: Bosch
Min. Fuel Consumpetion: ≤367g/kw.h
Minimum turning radius: 1900 mm
Lubricant Type: SF15W/40
Transmission: Chain Drive

Size Data

Overall Size (L x W x H): 1620*700*1100mm/63.82*27.58*42.9 Inch
Wheel Base: 1150 mm/45.31 Inch
Seat Height: 750 mm/29.55 Inch
Ground Clearance: 260mm/10.24 Inch
Fuel Capacity: 3.5 L/0.92 Gal.
Wheels: Steel Rims, High Quality Alloy Hubs
Tires: YUANXING FT:60/100-14-RR:80/100-12

Frame/Suspension/Brake system

Frame: High quality Steel Frame
Front Fork: Inverted front shock absorbers 43/45mm
Rear Shock: Rear none-adjustable mono shock
Upper and Lower Connecting Board: Alloy
Handle Lever: Foldable
Front Brake: Disc
Rear Brake: Disc
Exhaust: Stainless steel muffler

Packing and Loading

Packing Size: 1420*440*860mm/55.95 *17.34*33.88 Inch
N.W/LBS: 68 KGS/149.6 LBS
G.W/LBS: 97 KGS/213.4 LBS

Tx Powersports present TrailMaster JHL Pro Series TM MK125, TM MK125s, TM SX125, TM-SX150, TM MX250, TM MX250 Pro, TM LX250, TM LX300, TM LX300 Pro

Model	max.weight	Wheel Base	Seat height	Engine size	Starting	Transmission	Tires Front	Rear
TM MK125	149.6LB	45.31''	29.55''	125cc	Kick Start	Chain Drive	60/100 -14	80/100 -12
TM MK125s	149.6LB	45.31''	29.55''	125cc	Electric / Kick Start	Chain Drive	60/100 -14	80/100 -12
TM SX125	189.2LB	49.25''	32.70''	125cc	Electric / Kick Start	Chain Drive	70/100-19	90/100-16
TM SX150	189.2LB	49.25''	32.70''	140cc	Electric / Kick Start	Chain Drive	70/100-19	90/100-16
TM MX250	266.2LB	54.96 ''	35.46''	223cc	Electric / Kick Start	Chain Drive	80/100-21	110/100-18
TM MX250 Pro	266.2LB	54.96''	35.46''	250cc	Electric / Kick Start	Chain Drive	80/100-21	110/100-18
TM LX250	266.2LB	59.1''	37.43''	250cc	Electric / Kick Start	Chain Drive	Cordial tyre 21"/18"	Cordial tyre 21"/18"
TM LX300	266.2LB	59.1''	37.43''	283cc	Electric / Kick Start	Chain Drive	Cordial tire 21"/18"	Cordial tire 21"/18"
TM LX300 Pro	266.2LB	59.1''	37.43''	283cc	Electric / Kick Start	Chain Drive	Cordial tire 21"/18"	Cordial tire 21"/18"

Tx Powersports present TrailMaster Dirt Bike TM series TM10, TM11, TM15, TM21, TM22, TM23, TM24, TM27, TM29, TM31, TM36, TM38

Model	max.weight	Wheel Base	Seat height	Engine size	Starting	Transmission	Tires Front	Rear
TM10	150LB	39.37''	24.41''	110cc	Kick Start	Automatic Clutch ,N-1-2-3-4	2.5x10	2.5x10
TM11	150LB	39.37''	24.41''	110cc	Electric	Automatic clutch, One gear	2.5x10	2.5x10
TM15	150LB	40''	24.4''	110cc	Kick & Electric Start	Automatic Clutch ,N-1-2-3-4	2.75x12	3x10
TM21	170LB	41.54''	29.13''	125cc	Kick Start	Automatic Clutch ,N-1-2-3-4	60/100-14	80/100-12
TM22	170LB	41.54''	29.13''	125cc	Kick Start	Manual Clutch, N-1-2-3-4	60/100-14	80/100-12
TM23	170LB	41.54''	29.13''	125cc	Kick & Electric Start	Automatic Clutch ,N-1-2-3-4	60/100-14	80/100-12
TM24	170LB	42.3''	32.7''	125cc	Kick Start	Manual Clutch, N-1-2-3-4	70/100-17	90/100-14
TM27	200LB	49.8''	33.5''	125cc	Kick Start	Manual Clutch, N-1-2-3-4	70/100-17	90/100-14
TM29	200LB	49.8''	33.5''	125cc	Kick & Electric Start	Manual Clutch, N-1-2-3-5	70/100-17	90/100-14
TM31	280lbs	53.1"	34"	250cc	Electric & Kick Start	Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears	70/100-19	90/100-16
TM33	300lbs	59"	37"	223cc	Electric & Kick Start	Manual Wet Multi-Plate, 5gears	80/100-21	110/100-18
TM36	300lbs	59"	37"	300cc	Electric & Kick Start	Manual Wet Multi-Plate, Constant-mesh, two-stage transmission, 5-Gears	80/100-21	110/100-18
TM38	300lbs	59"	37"	300cc	Electric & Kick Start	Wet multi disc clutch, International Gear Pattern,6-Speed
