Product Description
Age 10 Years old and up

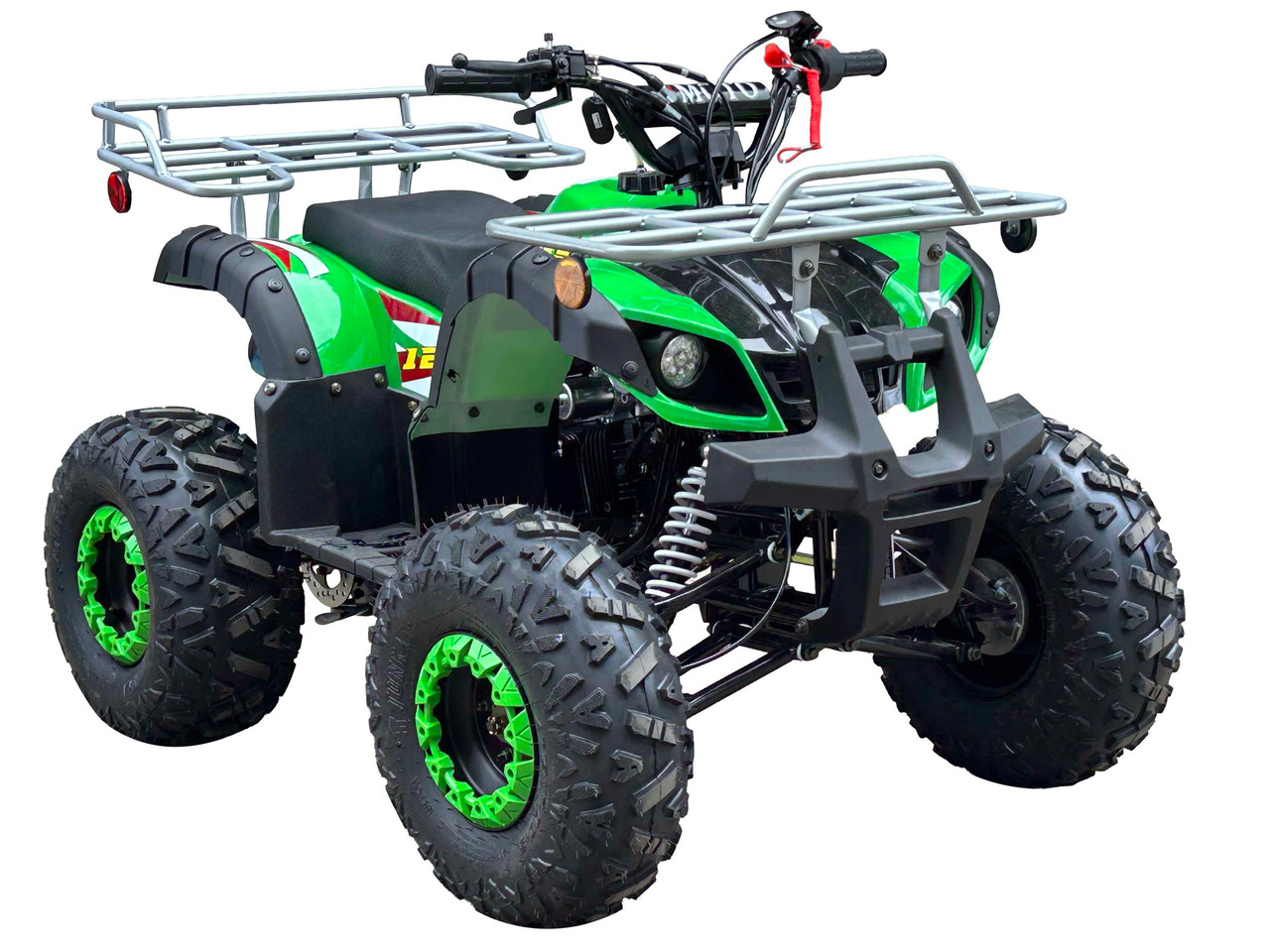

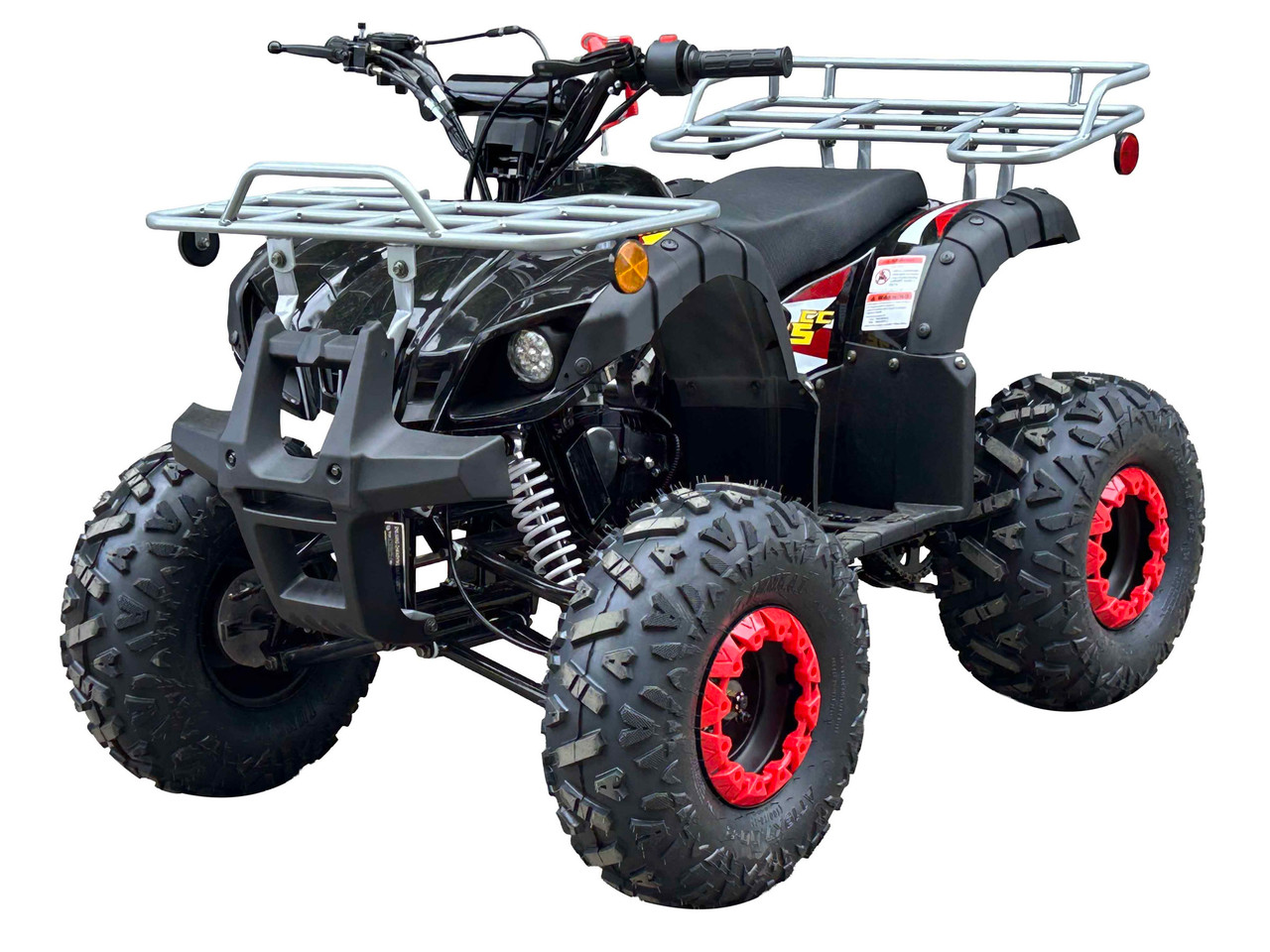

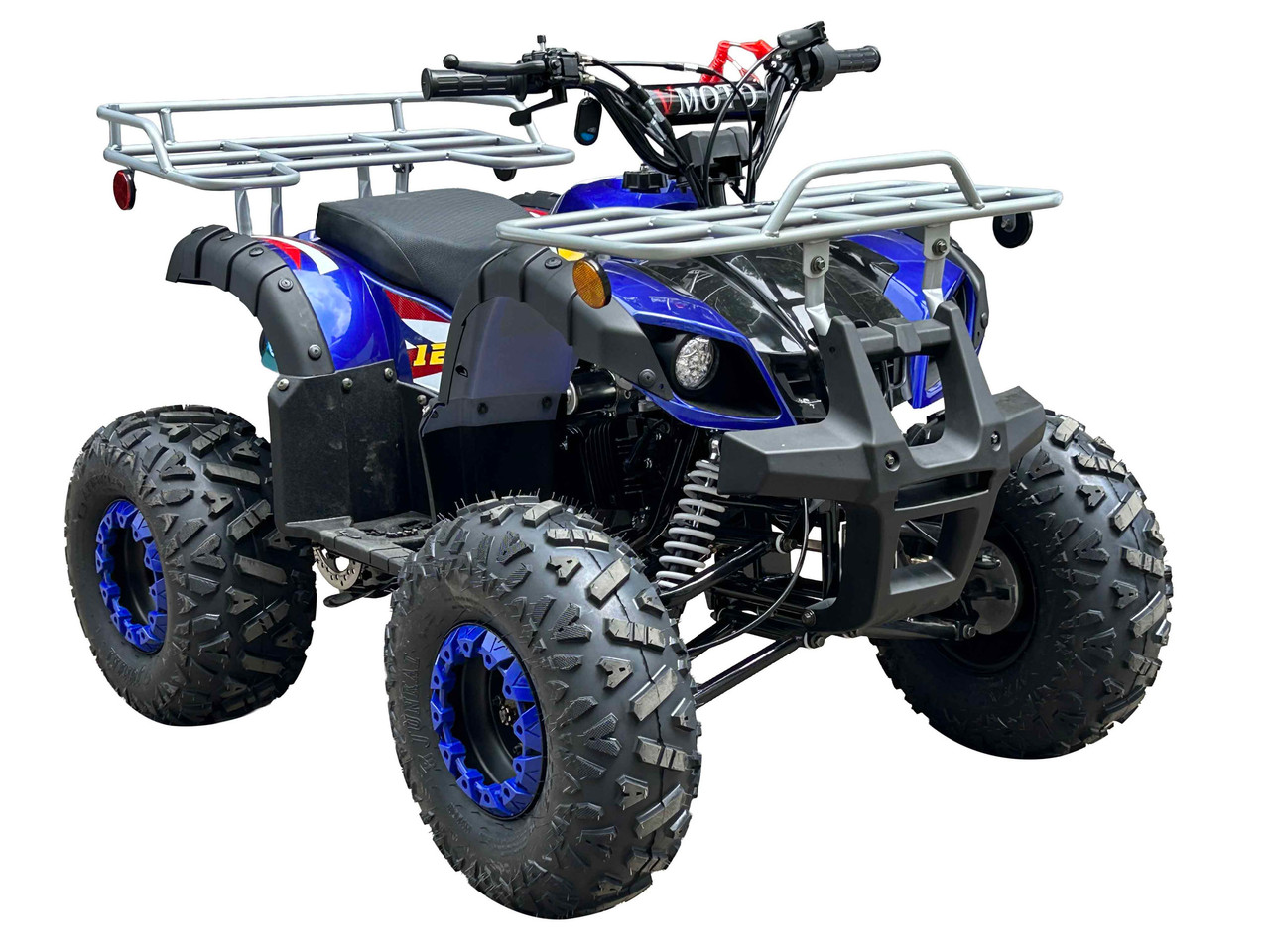

Vitacci RIDER-9 125cc ATV, Single Cylinder, 4 Stroke, Air-Cooled - Fully Assembled and Tested
Other Details
TECHNICAL SPECS
Engine System
Engine Type : Single Cylinder, 4-Stroke, Air-Cooled
Displacement : 125 cc (119.6 cc)
Compression Ratio : 9.6:1
Max Power Output : 5.5 kW / 8500 r/min
Max Torque : 6.9 N.m / 6500 r/min
Gear Shift Mode : One Forward and One Reverse with Hand Gear Shift
Carburetor : PZ20
Ignition : AC-CDI
Starting System : Electric Start
Transmission : Chain Drive
Size Data
Overall Size (Length×Width×Height) : 62" × 38" × 37"
Carton Size (Length×Width×Height) : 58" × 31" × 26"
Wheel Base : 37.7"
Seat Height : 27.5"
Ground Clearance : 5.5"
Fuel Capacity : 2.2 L
Frame / Suspension / Brake System / More Features
Front Suspension : Traverse Double-Arm
Rear Suspension : Non-Independent Suspension
Front Brake : Drum Brake
Rear Brake : Disc Brake
Front Tires : 19×7-8
Rear Tires : 18×9.5-8
Front Wheel Track : 30.9"
Rear Wheel Track : 26.3"
Other Specifications
Net Weight : 236 lbs
Gross Weight : 289 lbs
Max Payload : 143 lbs
Front Rack Payload : 22 lbs
Rear Rack Payload : 22 lbs
