Product Description

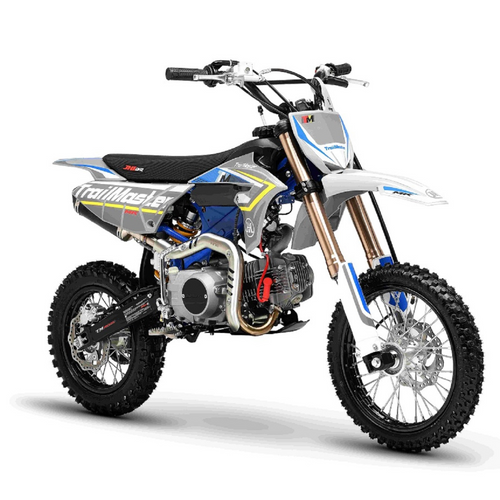

TrailMaster JHL Pro Series TM SX150 Dirt Bike 140cc Oil-Cooled Engine with Nibbi PE22 Performance Carburetor
Experience ultimate off-road power and precision with the TrailMaster JHL Pro Series TM SX150 dirt bike. Featuring a 140cc oil-cooled engine paired with an after-market Nibbi PE22 performance carburetor, this dirt bike is built for superior performance on all terrains. The newly innovated frame design ensures smooth riding, while high-performance inverted front shock absorbers and a nitrogen air gas rear shock absorber offer excellent handling and comfort. With both electric and kick start options, the SX150 is versatile and easy to ride. Whether you're a beginner or experienced rider, the 33” seat height and high-quality non-slip seat make this bike perfect for a wide range of riders. Available now at Affordable Atv.com!
- Powerful 140cc Oil-Cooled Engine: Offers enhanced durability and high performance for off-road adventures.
- Electric & Kick Start: Dual starting options for added convenience and reliability.
- Nibbi PE22 Performance Carburetor: Improves throttle response and overall engine efficiency.
- Innovative Frame Design: Ensures a smoother and more controlled riding experience.
- High-Performance Inverted Front Shock Absorber: For superior handling and better suspension on rough terrains.
- 33" Seat Height: Suitable for a wide range of riders, providing both comfort and stability.
- Wide, Non-Slip Seat: High-quality seat designed for comfort during extended riding sessions.
- Nitrogen Air Gas Rear Shock Absorber: Provides excellent rear suspension for smoother rides.
- Performance Stainless Steel Muffler: Enhances engine performance and reduces noise.
- Alloy Handlebar & Triple Clamps: Lightweight yet strong for optimal control and durability.
- Alloy Foldable Handle Levers: Convenient and durable design for off-road use.
- Reinforced Alloy Rims and Hubs: Built to withstand the challenges of off-road riding.
- Large 19" Front & 16" Rear Yuanxin Tires: Provide superior grip and traction for various terrains.
- Front & Rear Disc Brakes: Ensure reliable stopping power in any conditions.
Other Details
Technical Specs
Engine System
Engine Type: 140cc,Single cylinder, four stroke , air-cooling /Oil-cooling
Displacement: 140 ml
Max Power: 6.8/7500 (1±1.5%)
Max Torque: 9.7/5500(1±1.5%)
Compression Ratio: 8.8:1
Shift Type: Four gear, non-circulate gear
Start Type: Electric / Kick Start
Ignition: CDI
Min. Fuel Consumpetion: ≤367g/kw.h
Minimum turning radius: 1900 mm
Lubricant Type #: SF15W/40
Transmission: Chain Drive
Size Data
Overall Size (L x W x H): 71.31 x 29.16 x 43.34 Inch / 1810×740×1100 mm /
Wheel Base: 49.25 Inch / 1250 mm
Seat Height: 32.70 Inch / 830 mm
Ground Clearance: 13.26 Inch / 340mm
Fuel Capacity: 1.56 Gal. / 6 L
Wheels: Alloy 19/ 16 Rims, Alloy Hubs
Tires: YUANXING FT: 70/100-19 - RR: 90/100-16
Frame/Suspension/Brake system
Frame: High quality Steel Frame
Front Fork: Inverted , non-Adjustable
Rear Shock: Alloy U&D connector,non-Adjustable
Upper and Lower Connecting Board: Alloy
Handle: Alloy and Foldable
Front Brake: Disc
Rear Brake: Disc
Exhaust: Stainless
Packing and Loading
Packing Size: 63.82*17.92*33.49 Inch/ 1620*455*850 mm
N.W/LBS: 189.2 LBS / 86 KGS
G.W/LBS: 237.6 LBS / 108 KGS
