Product Description
Great for kids ages 6-12.

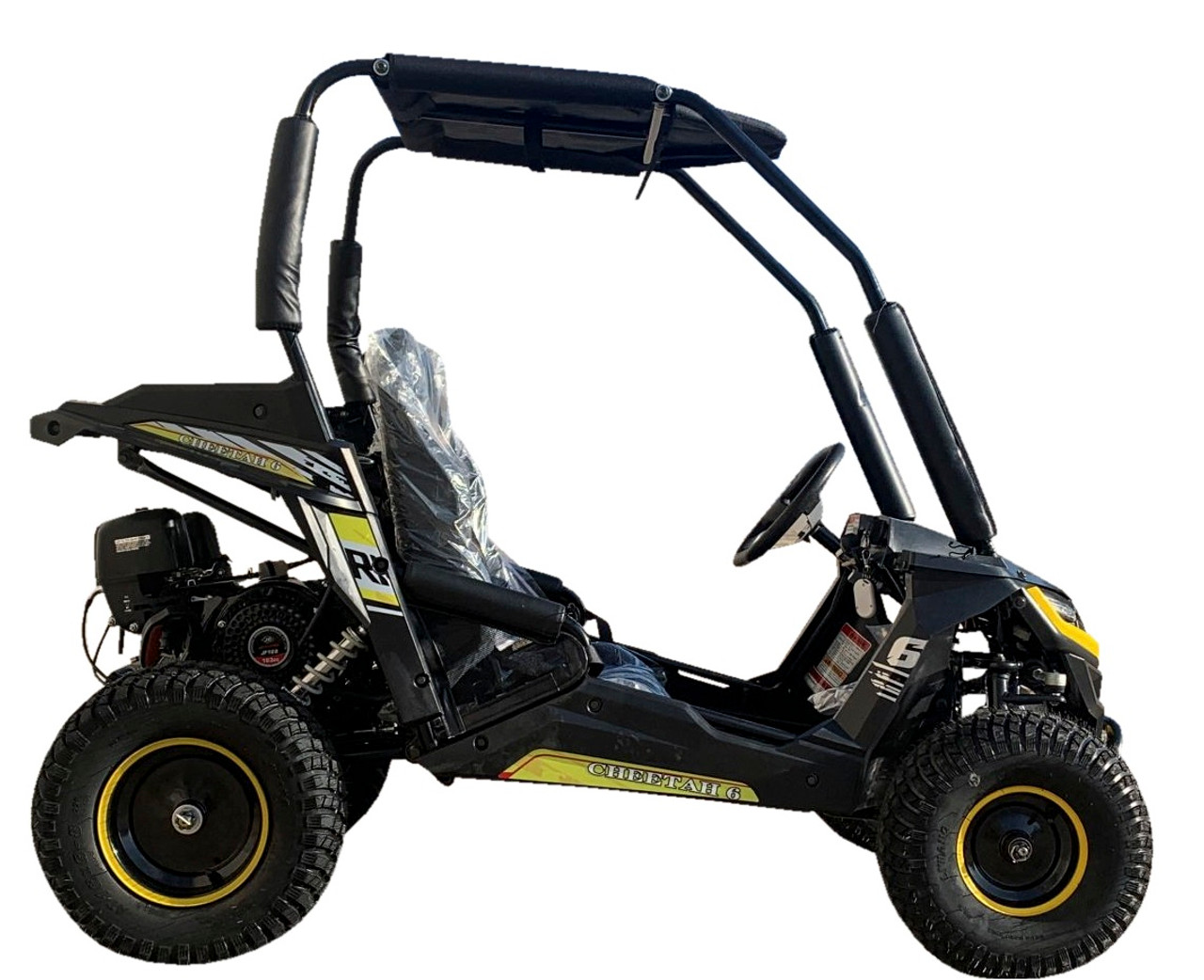

TrailMaster Cheetah 6 Kids Go Kart, 5.5hp E-start Remote Start/Kill with Reverse
This new kid’s size UTV/Go kart includes the following main features:
- Automatic torque converter CVT with reverse, 5.5 HP horizontal OHV engine
- Adjustable seat: pedal to seat back adjustable from 28” to 32”, Age Group: 6-12 yrs, fits person up to 5’4”
- 4 point safety seat belt
- Remote Start/Kill
- Speed Governor
- Electric start with pull start backup
- Max speed 24 m/h
TRAILMASTER-CHEETAH-I6-ELECTRIC
Other Details
Technical Specs
Parts breakdown set up manuel
Cheetah 6 | Owner's Manual | Â |
Engine Information | |
EPA certificated | |
Engine type | 4-stroke, single cylinder, air cooled, Horizontal OHV Engine |
Displacement | 163cc, 5.5HP |
Max HP | 3.2KW/3600RPM |
Max torque | 10.8NM/2800RPM |
Bore x stroke | 2.67x1.77inches |
Max speed | 24 mph |
Climbing ability | 12 degrees |
Starting system | Electric or Pull |
Battery | YTX12-BS,12V 10Ah |
Carburetor brand | P19 |
Engine oil | SAE 10W-40 |
General Information | |
Clutch | Automatic torque converter CVT with reverse |
Driveline / Driving wheel | Chain / Dual wheel drive |
Suspension F / R | Double A-arm / swing-arm |
Brake | Rear disc |
Tires, F / R | 145/70-6 /16*6-8 |
Wheel | Steel |
Fuel capacity | 1 gal |
Weight, G.W. / N.W. | 308 / 264 lbs |
Max load | 200 lbs |
Dimension Information | |
Wheelbase | 43.7 inches |
OA L x W x H | 63x36x50 inches |
Height to seat | 14.2 inches |
Min ground clearance | 3.6 inches |
Pedal to seat back distance | 28” to 32” |
Packing size | 60X32X21 inches |
More Pictures
Product Videos
Custom Field
Assembly instructon Click here for assembly instructions
