Product Description
Trailmaster Challenger 200

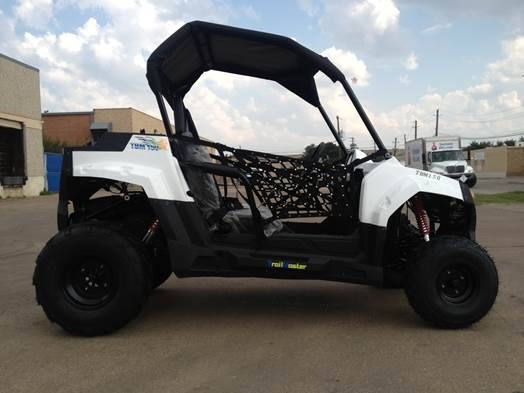

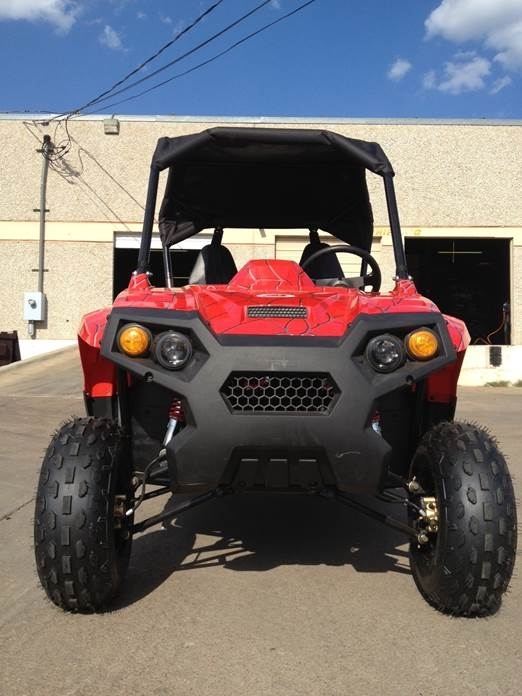

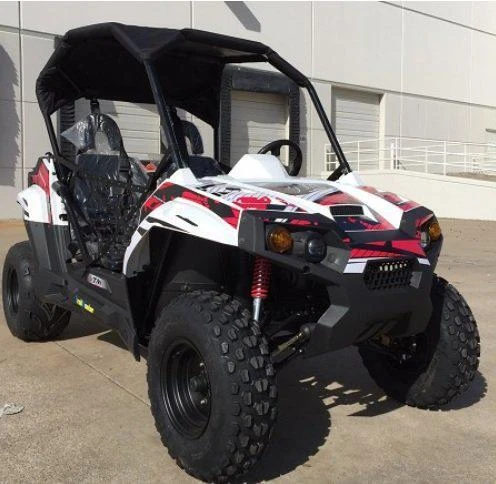

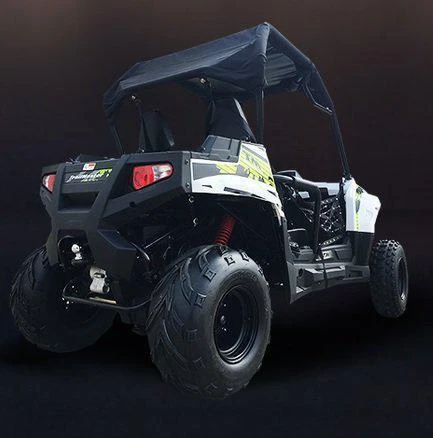

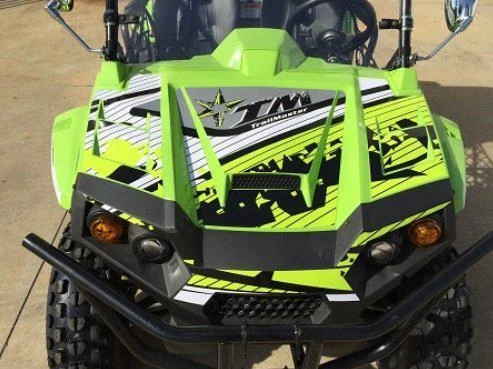

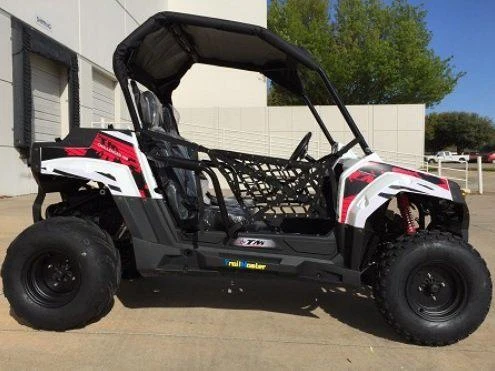

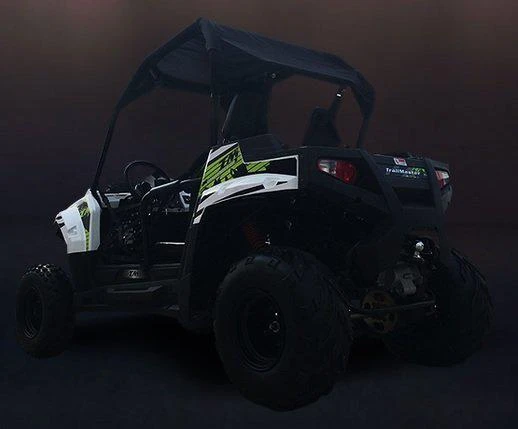

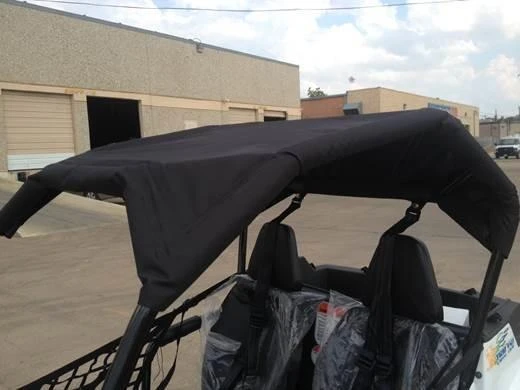

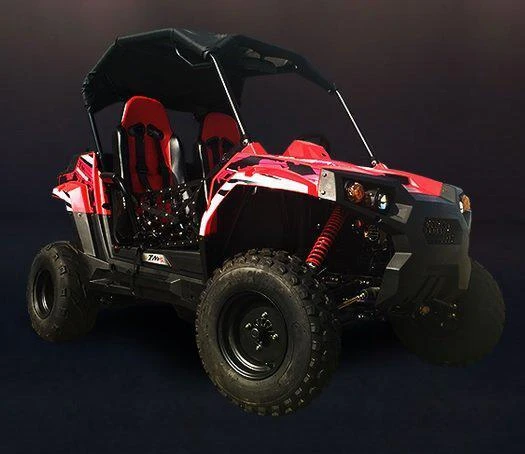

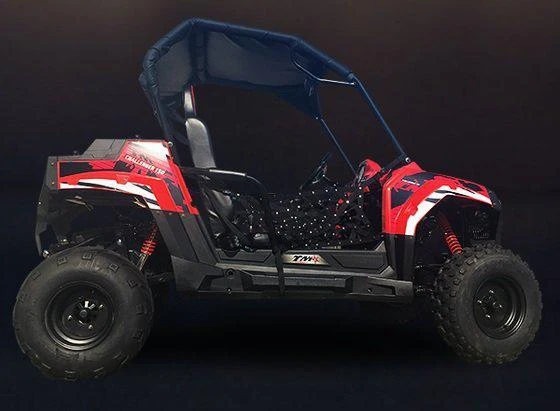

Put the kids in the driver's seat with the TrailMaster 150cc Challenger Side x Side UTV! It's designed to be just the right size for youth! It even has an adjustable steering column and reverse! Plus, there's a full upper brush guard complete with sunshade canopy for all day riding, side protection rails with heavy-duty nylon safety nets and dual seats with seat harnesses to help keep kids safe while riding.
The Challenger is powered by a reliable, electric start 4-stroke engine, automatic CVT transmission and chain driven dual rear wheel drive. Stopping is extra firm thanks to 4-wheel hydraulic assist disc brakes, and the full suspension system and all-terrain tires help the Challenger crawl over the toughest trails. CARB Approved. The Challenger Side by Side comes in several great colors!

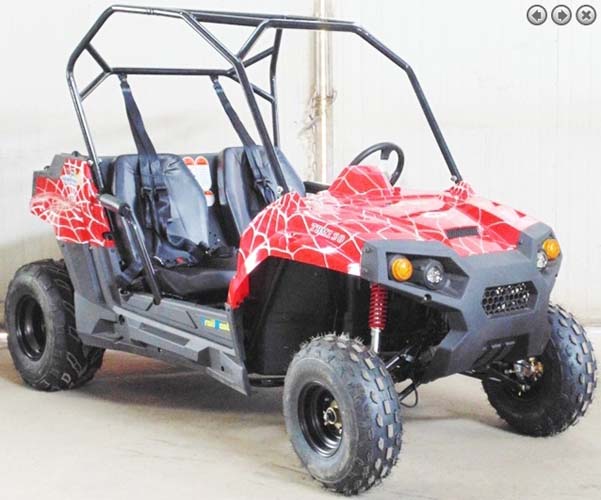

The perfect side-by-side for youths to drive and adults to ride along, kids have been getting the short end of the stick for too long. The Challenger 200 has a long list of important safety features starting with its roll cage and hydraulic disc brakes. There is an adjustable throttle limiter control, which allows you to limit speeds down to around ten mph. Three-point seat belts similar to the ones found on the larger UTVs. A pull up lever between the seats activates the machine parking brake. Ergonomically the Challenger is on point for its intended youth audience.

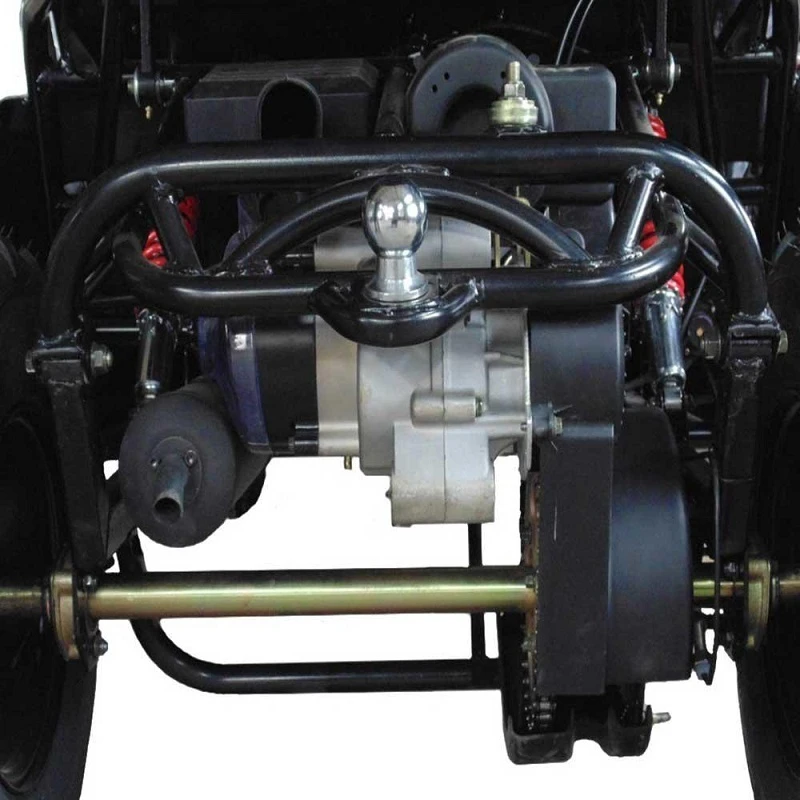

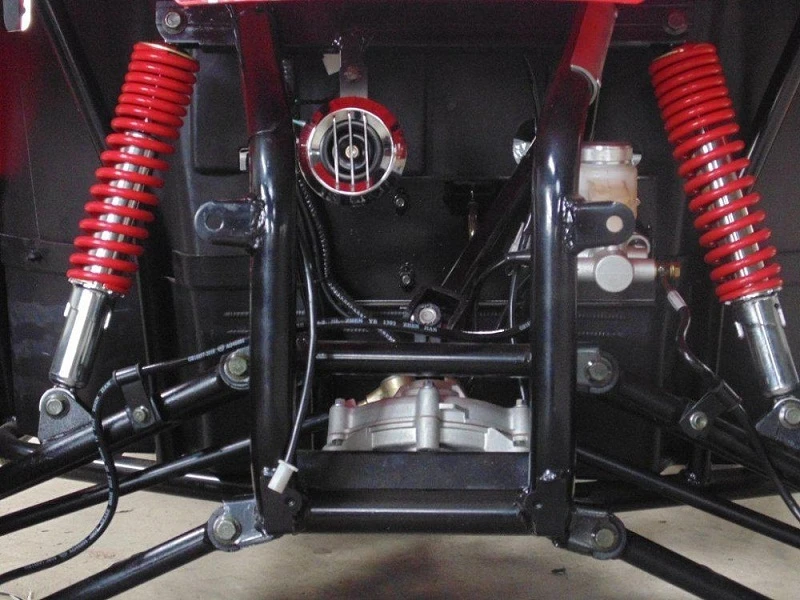

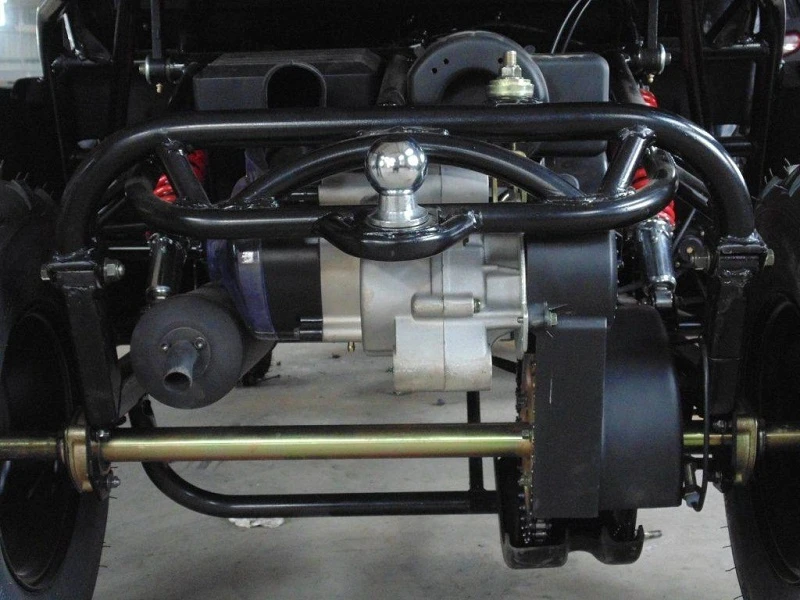

The bucket seats are similar to those found in the larger UTVs, offering a low sit-in feeling. The drivers seat is adjustable forward or backward and there is passenger grab handle. Power is provided by a 168.9cc air-cooled, four-stroke engine. A Japanese style carburetor regulates the engines air-fuel mixture. The engine is 168.9cc Honda Clone engine is mated to a fully automatic Variable Transmission featuring forward, neutral, and reverse, selected by a lever located between the seats. The advanced suspension allows you to tackle all types of terrain. The advanced suspension and shocks do a good job of keeping the tires in contact with the ground and the driver in control. Braking is handled by dual hydraulic disc brakes. The brakes offer very good power and feel and will bring two occupants to a stop in a hurry. Let your young rider take the wheel and create memories that they will never forget. The Challenger's sharp appearance will turn heads, and its performance is awesome and will keep them out on the trail for years of excitement. These units are not legal for the street in California, only off-road use.
Product Dimensions
• L x W x H: 2290x1320x780 mm
• L x W x H: 90.16x51.97x33.5 inches
• Volume : 2.36/83.34
• Weight : 700
Shipping and Fuel surcharge Notice (If choosing Home delivery or business delivery):
About 99% of the customers will not get any shipping / Fuel surcharges, however only about 1% of the customers might get the surcharges on a case by case basis. Shipping to a very far away states and some rural area will incur extra shipping charges like NY, WA, SD, ND, MI, WA, CA, MT, OR, NV, ME, MA,PA, CT, DC, NH, NE and the East Coast etc will be extra due to excessive fuel surcharges, and shipping to any islands will be extra. Please place your order normally if there are any extra shipping charges we will call you to inform you if not we will process your order as normal. We do not ship it to Hawaii and Alaska. Thank you for your understanding.
Other Details
Technical Specs
| EPA Approved | Yes |
| Engine Type | 4-stroke, single cylinder, air cooled |
| Displacement | 168.9cc |
| Max HP | 11.1hp/7500rpm |
| Max torque | 7 lb ft/6000rpm |
| Bore x stroke | 2.26x2.28 inches |
| Max speed | 35 mph |
| Climbing ability | 20-25 degrees |
| Ignition | C.D.I |
| Starting system | Electric |
| Battery | 12V 10Ah |
| Carburetor brand | Deli (Vacuum film) |
| Engine oil | SAE 15W-40 |
| Transmission | Automatic CTV with reverse |
| Driveline / Driving wheel | Chain / Dual wheel drive |
| Suspension F / R | Independent Dual A-arm / Double Oil Damped Shock |
| Brakes, Front & Rear | hydraulic Disc |
| Tire size, F / R | 19x7-8 / 22x10-10 |
| Fuel capacity | 1.75 gal |
| Weight, G.W. / N.W. | 750 / 528 lbs |
| Max load | 500 lbs |
| Wheelbase | 72 inches |
| L x W x H | 90.16*51.97*33.5 inches |
| Height to seat | 21 inches |
| MinGround clearance | 6.3 inches |
| Engine type | Gas |
| Displacement | 168.9CC |
| Compression ratio | 8.8:1 |
| Ignition | CDI |
| Cooling system | Air cooled |
| Starting system | Electric start |
| Dry weight | 520lbs |
| Fuel capacity | 2 Gallons |
| Final Drive | Chain |
| Suspension | Double a-arm |
| Max torque and rotate speed | 24N.m(4000r/min) |
| Rated power and rotate speed | 13.5kw(5500r/min)" |
