Product Description

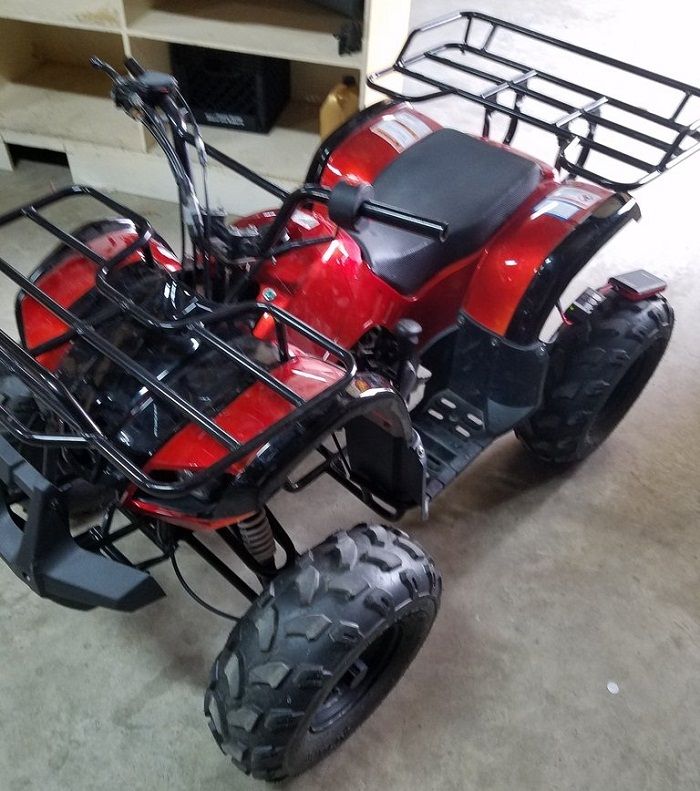

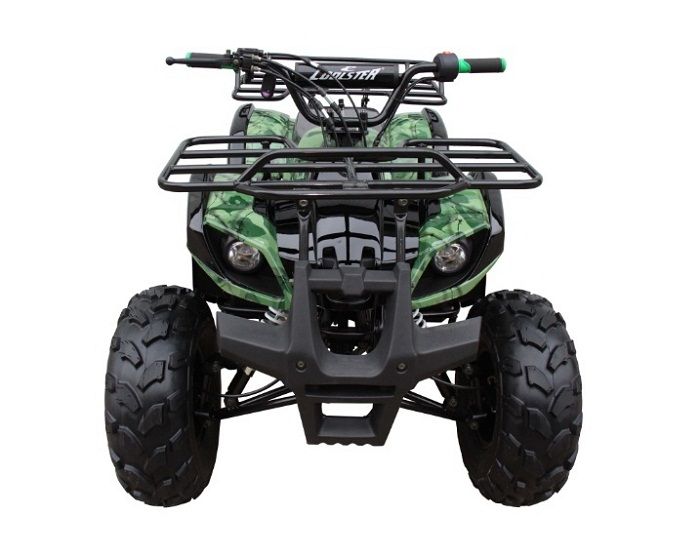

Coolster 3125-XR8-U Ultimate Kodiak (125CC Fully Automatic Mid Size, 4-Stroke, Air Cool , Fully Automatic ATV
125cc mid size utility style youth ATV. Automatic transmission with reverse.
Product Dimensions
• L x W x H: 48x30x26 inches
• Weight : 280
Other Details
Technical Specs
| Product | Coolster 3125-XR8-U |
| Product Type | ATV |
| Make | Coolster |
| Model | 3125-XR8-U |
| Other | Hand Shifter |
| Colors | Spider Black, Spider Blue, Spider Red, Black, Blue, Red, Army Green, Army Pink, Army Black |
| Frame Size | Medium |
| tooltip icon Fitment | 9 to 12 |
| Styling | Utility |
| Engine | 125cc |
| Build Level | 1 |
| Max HP | 7.4 hp |
| Max Torque | 5.1 ft lb |
| Max Speed | 35 mph |
| Cooling System | Air |
| Transmission | F-N-R |
| Clutch | Auto |
| Drive Wheels | Rear |
| Drive type | Chain |
| Starting System | Electric |
| Fuel System | Carbureted |
| Fuel Capacity | .58 Gal |
| Suspension – Front | Dual A Arm |
| Suspension – Rear | Swing Arm |
| Brake (Front/Rear) | Drum/Hyrdaulic Disc |
| Brake Operation | Hand/Foot |
| Tire Size – Front | 19x7-8 |
| Tire Size – Rear | 18x9.5-8 |
| Wheel Size and Type (Front/Rear) | 8" Steel |
| Dimensions LxWxH (inch)/(mm) | 59 x 38 x 37/1498 x 965 x 939 |
| Wheelbase | 33.7" |
| Vehicle Weight | 232 lbs/105kg |
| Load Capacity | 143 lbs/64kg |
| Height to Seat | 27" |
| Ground Clearance (Min) | 5.5" |
| Lighting | Headlight, LED tail light |
| Instument Cluster | None |
| Remote Engine Stop | Yes |
