Product Description
FREE WINDSHIELD FOR PURCHASE OF ANY TAURUS MODELS

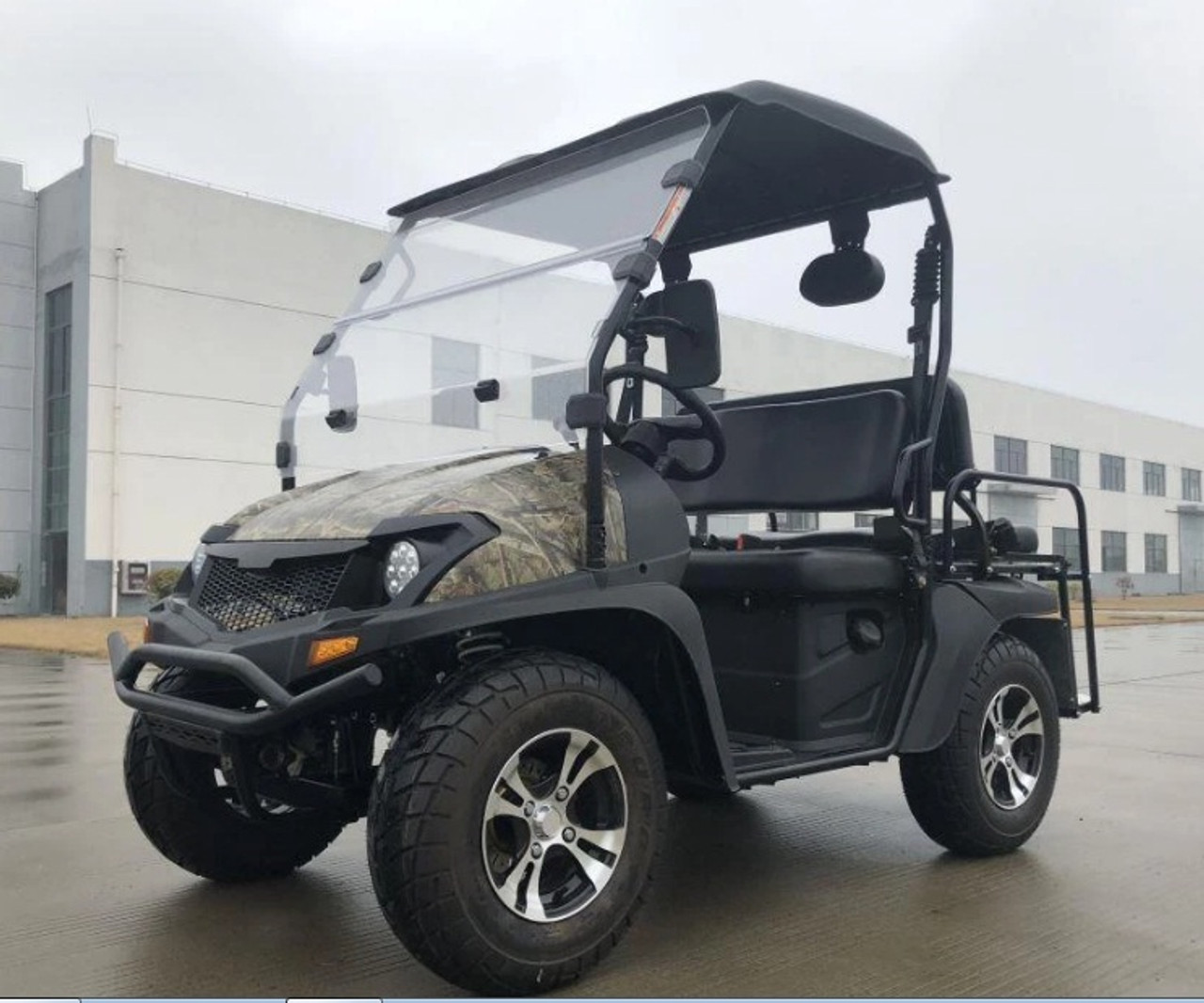

New Trailmaster Taurus 200GV UTV, Gas Golf Cart
COMES WITH
SHORT ROOF
REAR SEAT
Affordable Atv is excited to announce the newest addition to our Taurus lineup, the TrailMaster Taurus 200G!
The Taurus high-performance vehicles are trail ready and hard working With the addition of the optional cargo bed in place of the rear seat insert on the 2-seat model capable of light-duty hauling up to 200lbs. The powerful gas engine has plenty of power to haul and pull vehicle through the tough spots. Easy to Load steel cargo box requires less effort to load and unload. Tilts for easier dumping. Excellent stability and handling on inclines or any type of Terrain. Whether you load it up or leave it empty, the Workman delivers a comfortable ride with its new specially tuned McPherson suspension.
Features
Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease.
Tough, affordable and rugged with a top speed of over 25 MPH. It is perfect for a long weekend of hunting and tough jobs all week long.
Four passenger models available.
Foldable 4-seater/rear-flatbed model; Add a dump bed which takes 15 minutes to install in place of the back seat for only $249 more.
•Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency;
Four-wheel independent suspension for much better driving experience Heavy duty frame, net weight 880 lbs, max load 800 lbs for 4 adult with flip seat Digital speedometer/odometer LED Hi/Lo beam head light Big dual purpose tires: F / R: 24 x 8-12 / 24 x 8-12 Polished aluminum wheels Double A-Arm Fully Independent Suspension Lots of Underseat Storage
EPA approved Digital Gage Set with Speedometer and Tach Head Lights, Tail Lights, and Brake Lights.
Turn Signals Optional CVT Transmission Integral Manual Shift Gear Box for Forward Neutral and Reverse Direct Drive from gearbox to rear wheels via half shafts Live Axle Rear Wheel Drive 4 Wheel Hydraulic Disc Brakes Hand Actuated Mechanical Parking Brake McPherson Strut Front Suspension
The Taurus high-performance vehicles are trail ready and hard working With the addition of the optional cargo bed in place of the rear seat insert on the 2-seat model capable of light-duty hauling up to 200lbs. The powerful gas engine has plenty of power to haul and pull vehicle through the tough spots. Easy to Load steel cargo box requires less effort to load and unload. Tilts for easier dumping. Excellent stability and handling on inclines or any type of Terrain. Whether you load it up or leave it empty, the Workman delivers a comfortable ride with its new specially tuned McPherson suspension.
Rugged Suspension - The Taurus 200G rides smoother than ever before. And this advanced McPherson suspension is specially tuned to deliver a well-cushioned ride whether you load it up or leave it empty.
The 4-stroke engine delivers excellent low-end torque power and acceleration everywhere you want to go. Stable design A low center of gravity gives excellent stability. The cargo-box load is centered over the rear wheels for balanced weight distribution. "
Some large items like 4-seater UTV/GO KART or weig
Other Details
Technical Specs
Parts breakdown set up manuel
TAURUS 200 UTV | Parts Breakdown | Â |
TAURUS 200 OWNER'S MANUAL | Owner's Manual |
Engine Type | Four-Sroke, Single Cylinder |
Displacement | 177 cc |
Bore & Stroke | 62.5 × 57.8 mm |
Compression Ratio | 8.8:1 |
Fuel System | Carburetor |
Ignition | CDI |
Transmission | Automatic H-L-N-R |
Drive Train | Shaft Drive |
Cooling | air cooling |
Horse Power | 8.7 HP (6.5kw) |
Fuel Tank Capacity | 4.8 gallons |
Battery | 12V 9Ah |
Dimension | Overall Length 61 in. / Overall Width 94 in. / Overall Height 75 in. |
Seat Height | 18.5 in. |
Ground Clearance | 13 in. |
Front Tire | 24×8-12 |
Rear Tire | 24×8-12 |
Wheel base | 63.8 in. |
Weight | 1200 lbs |
Dump Bed Capacity | 220 lbs |
Dump Bed Dimension | 26.4 in. |
Towing Capacity | 220 lbs |
Suspension | |
Front Suspension | Independent Mcpherson |
Rear Suspension | Independent Double A-Arm |
Brake | |
Front Brake | Ventilated Hydraulic Disc |
Rear Brake | Ventilated Hydraulic Disc" |
More Pictures
