Product Description

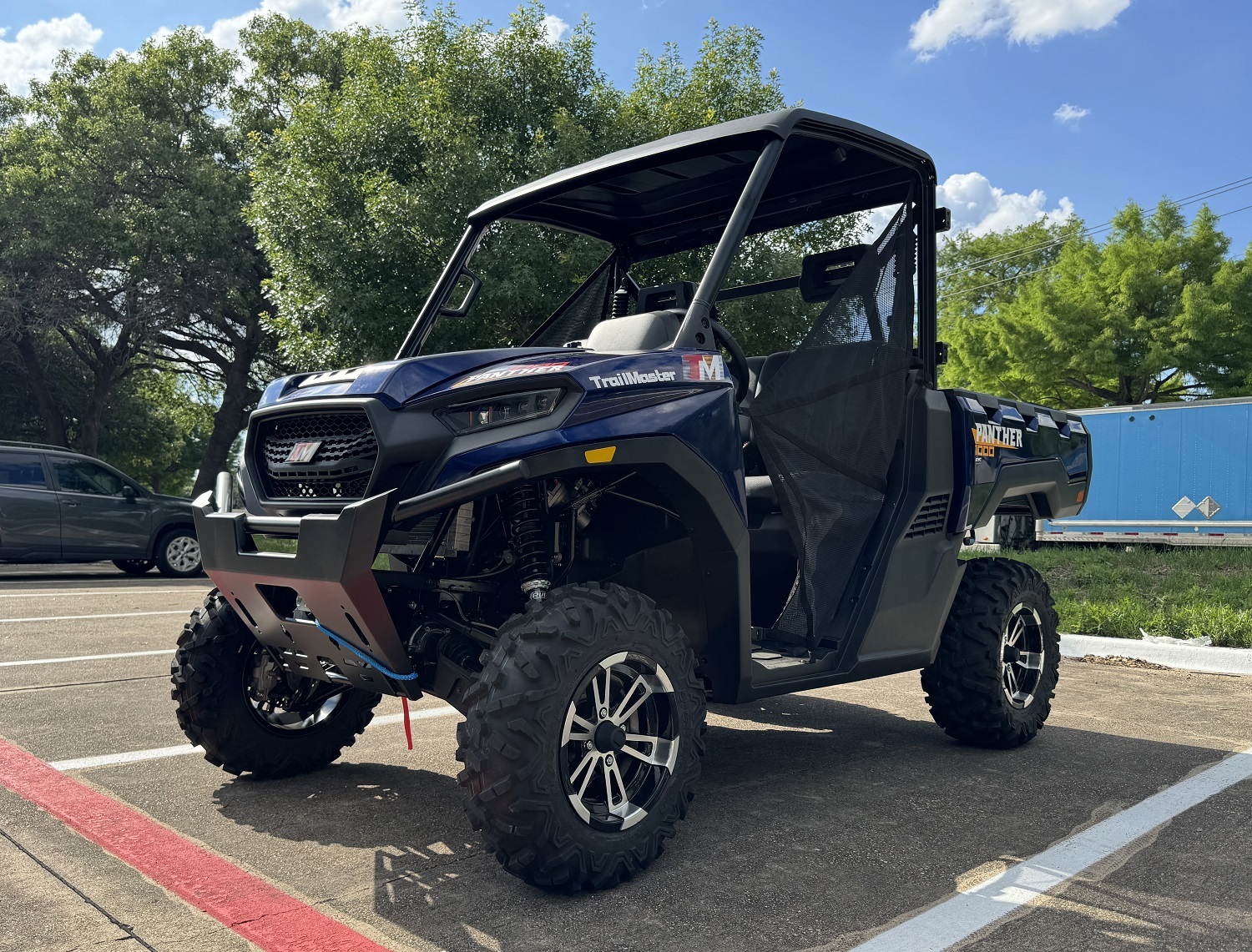

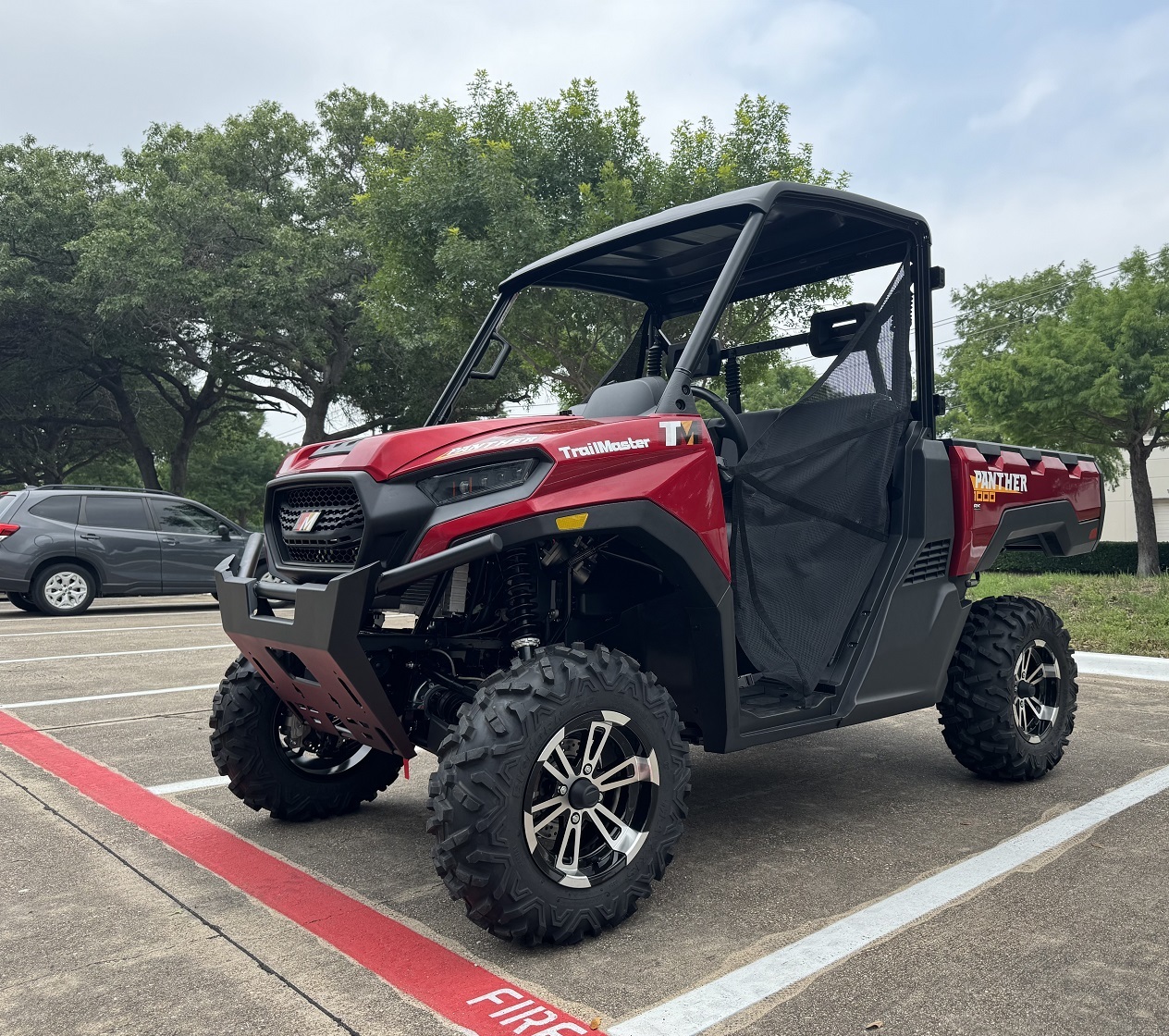

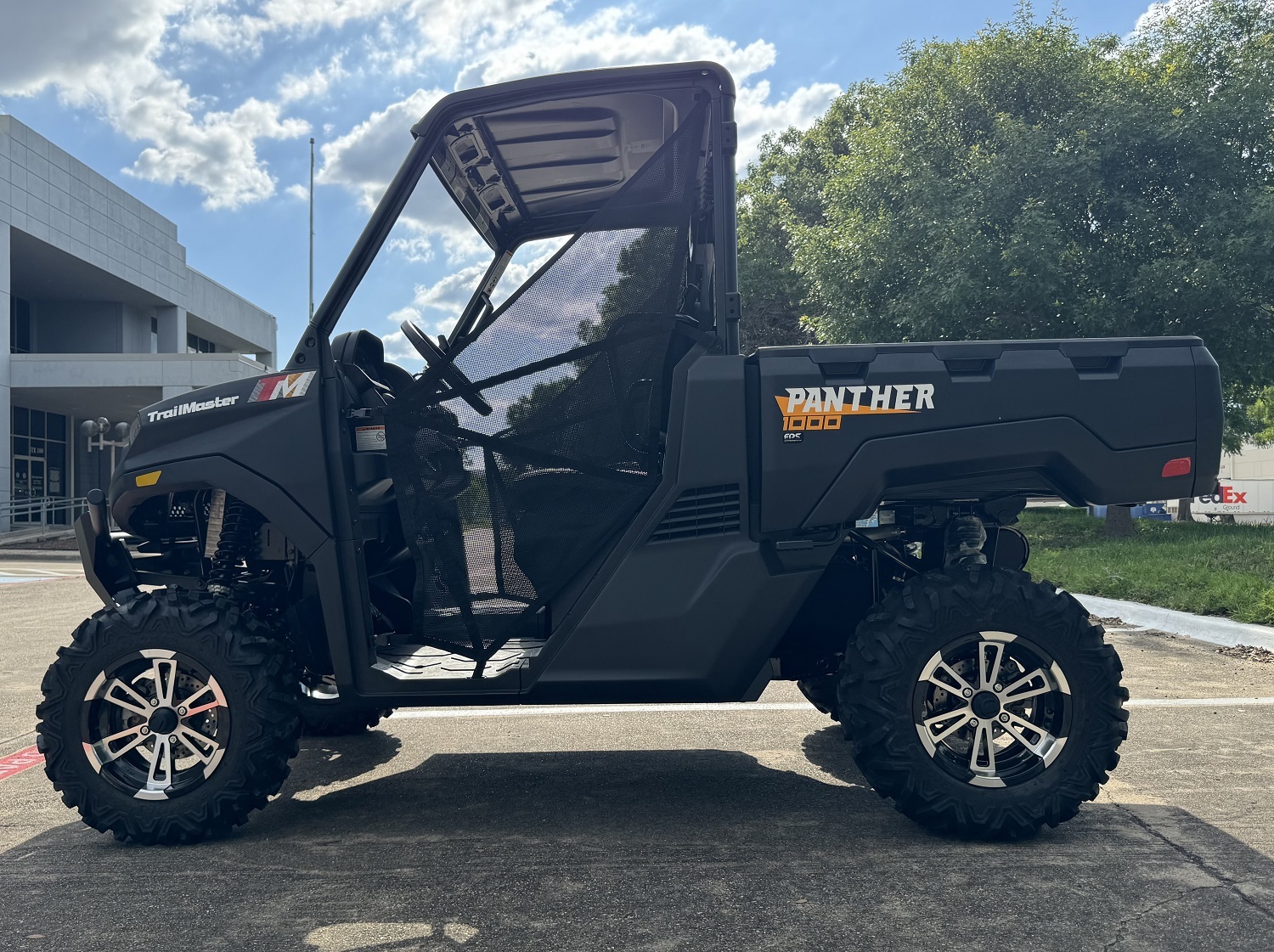

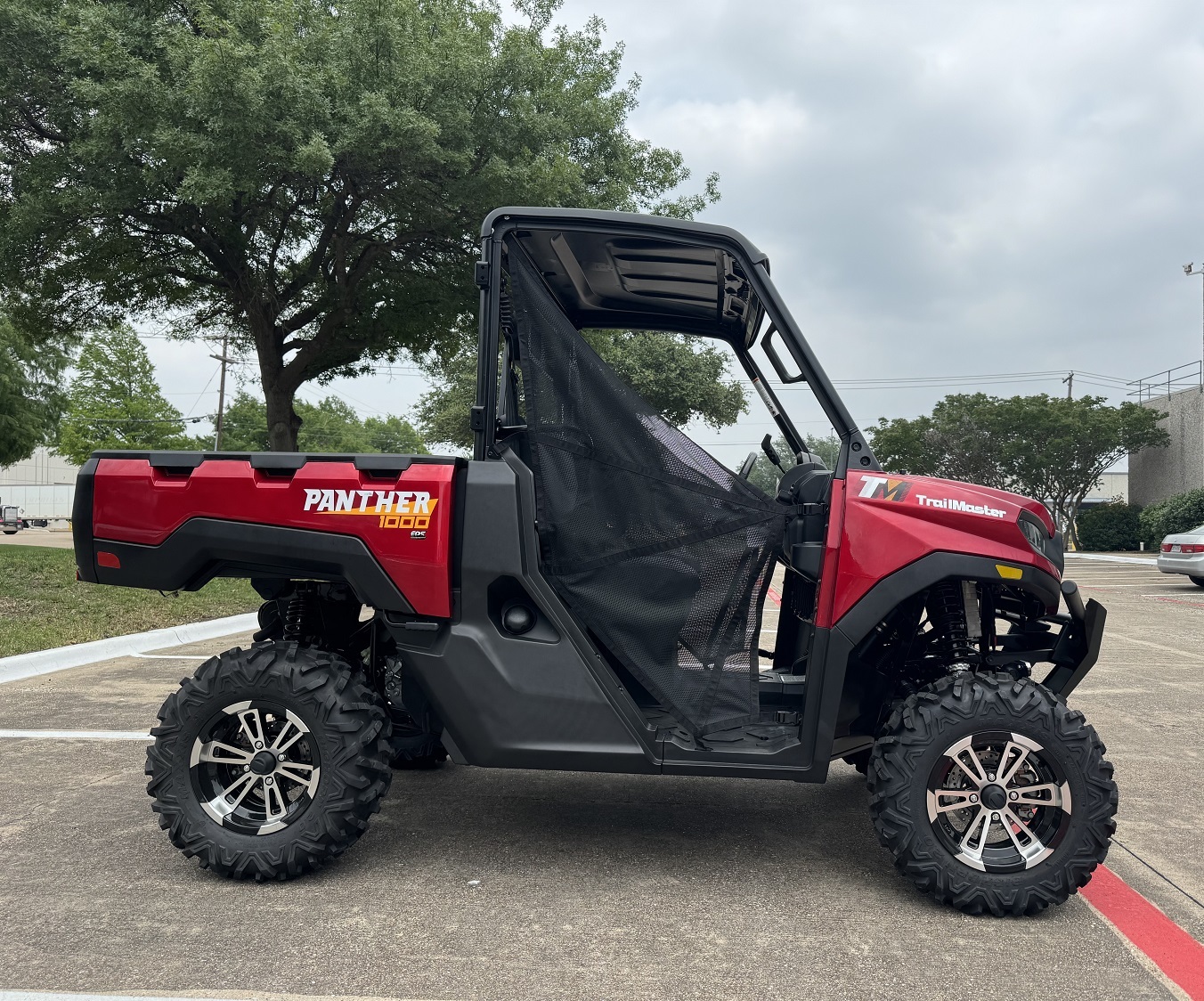

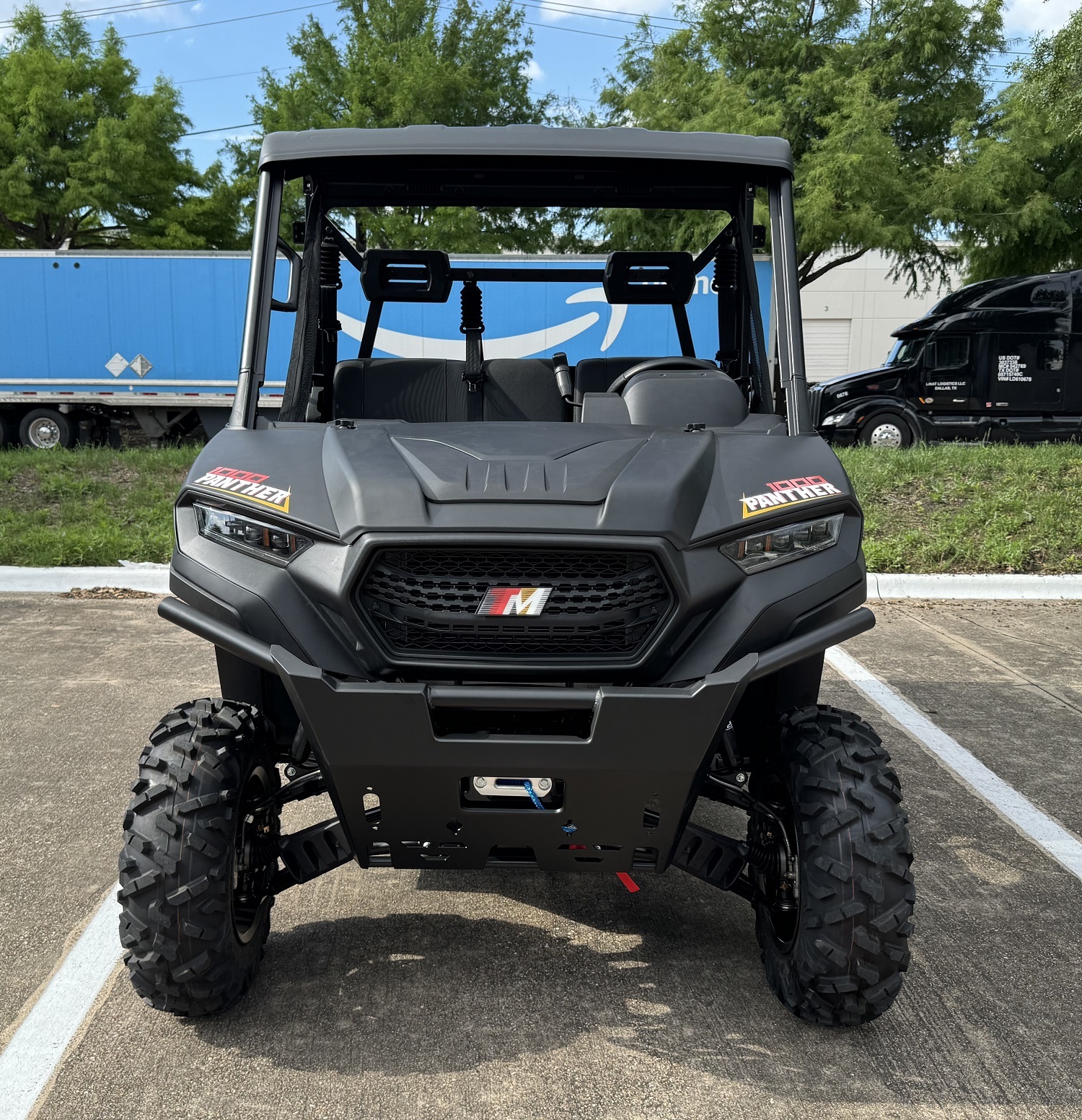

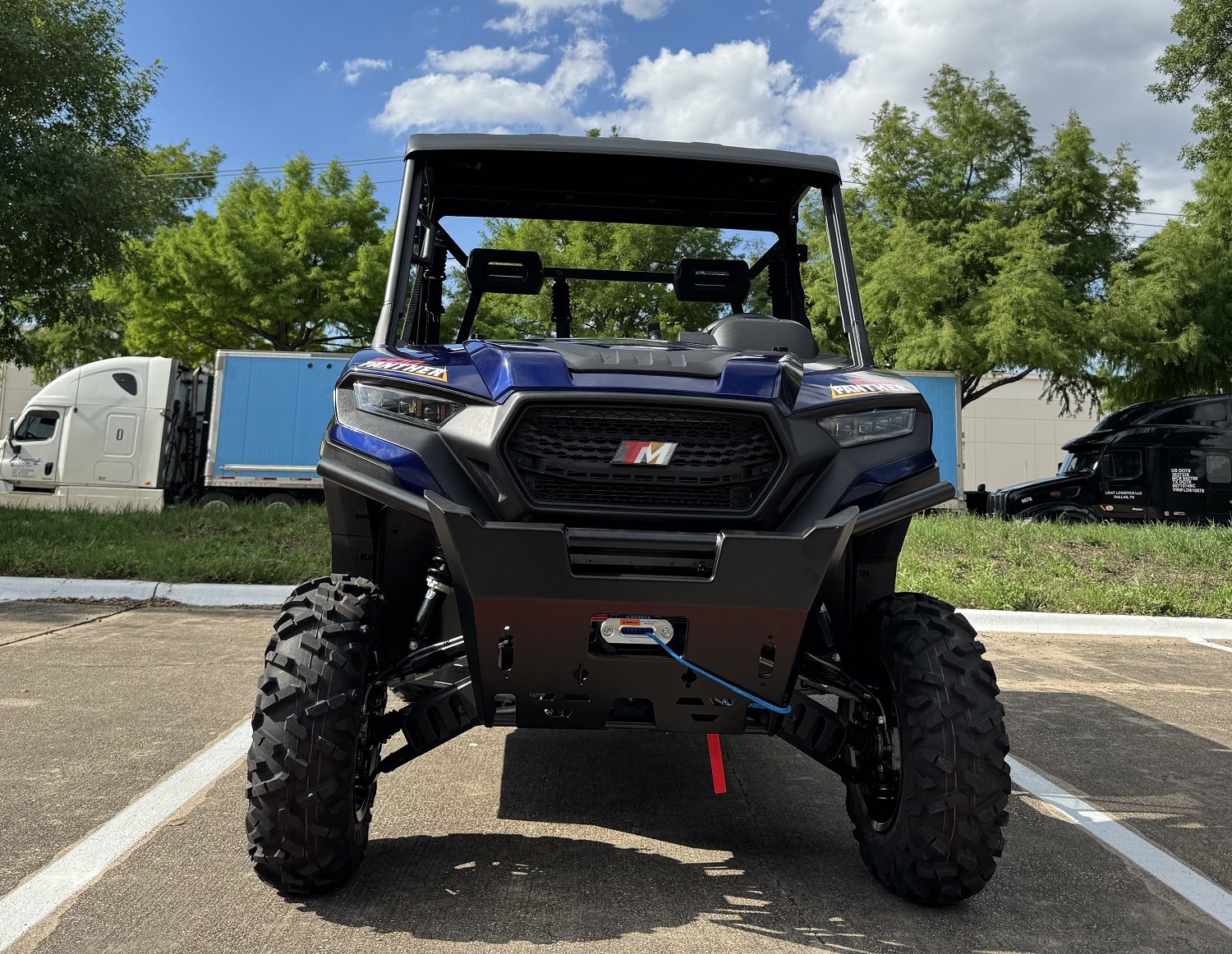

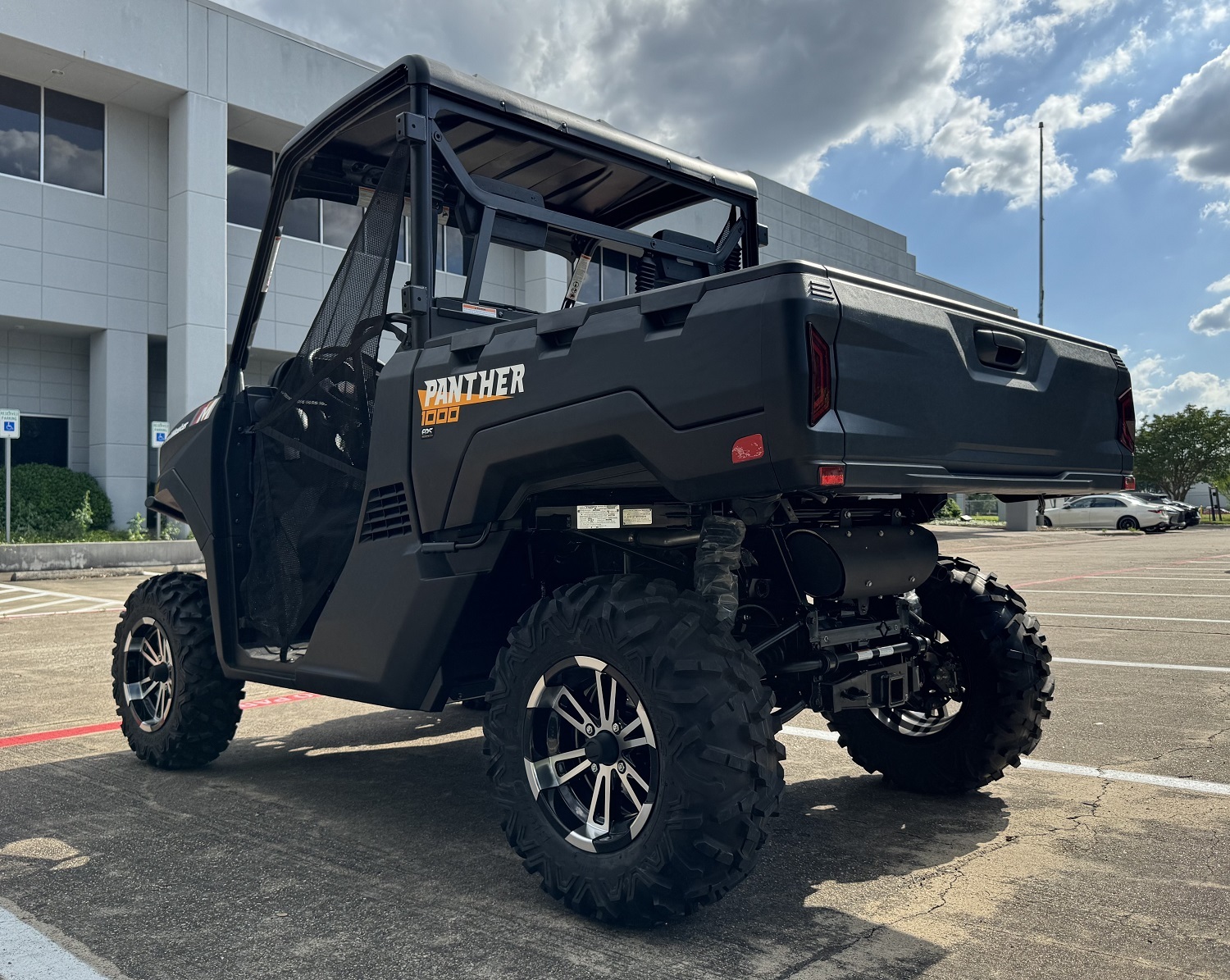

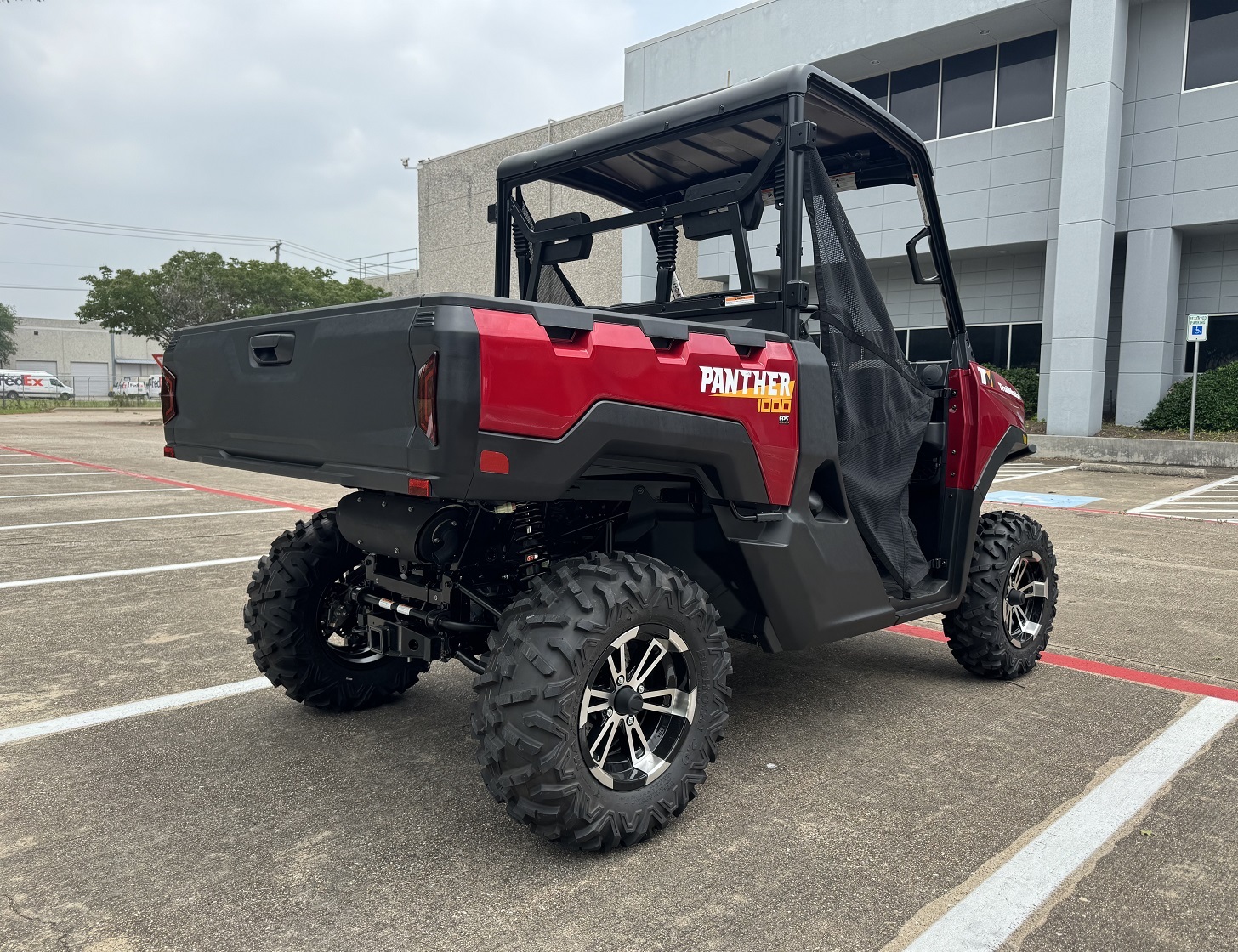

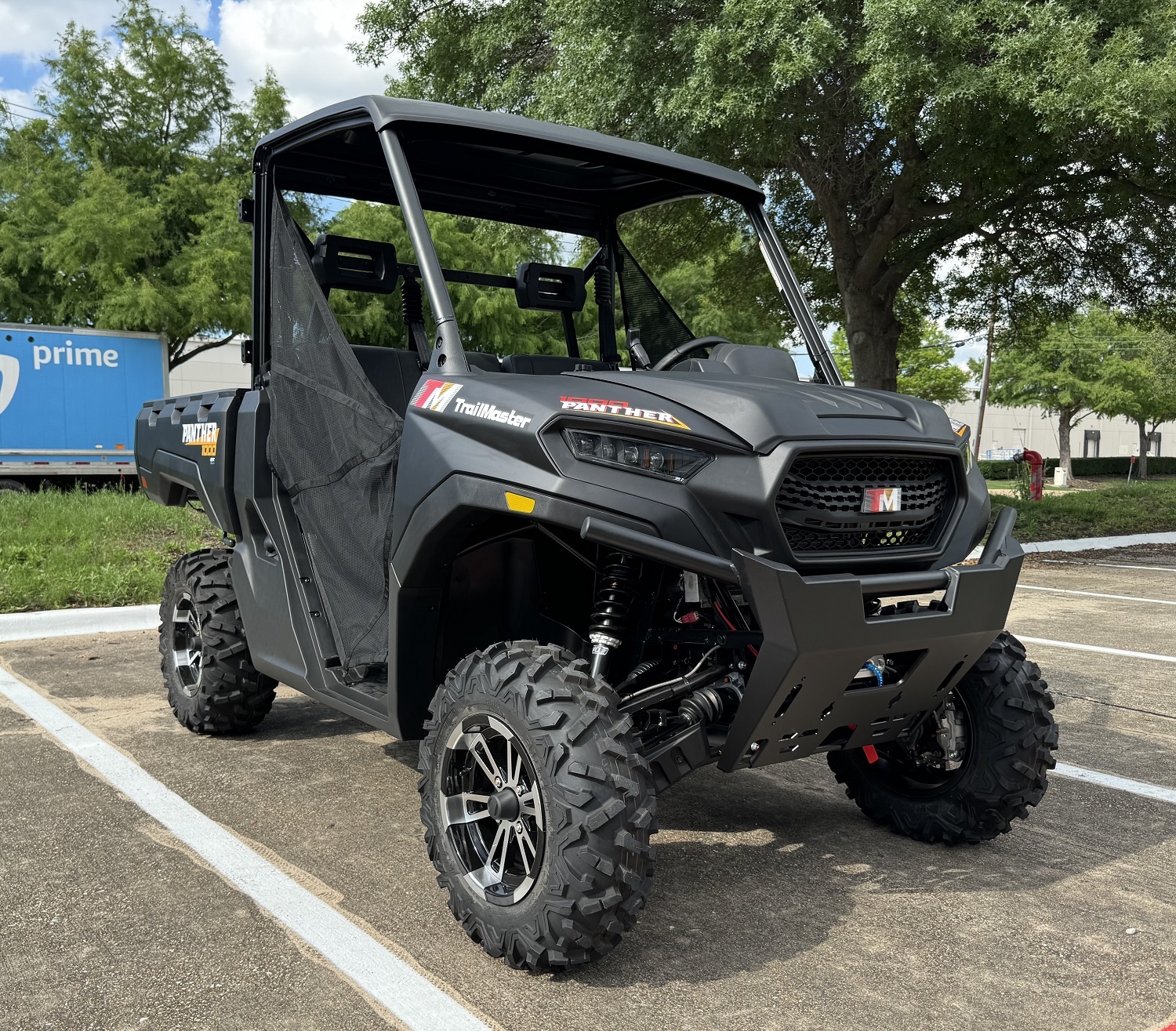

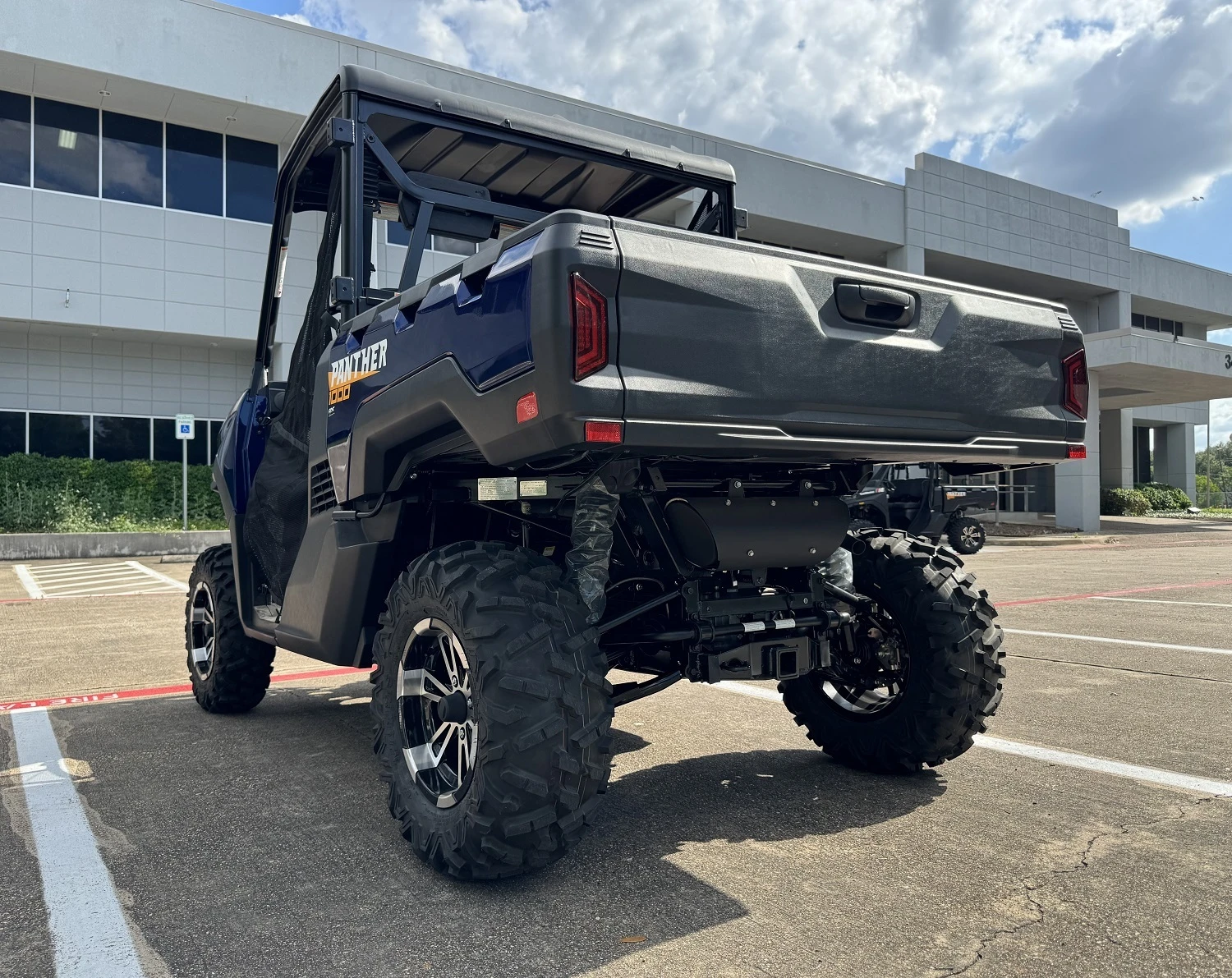

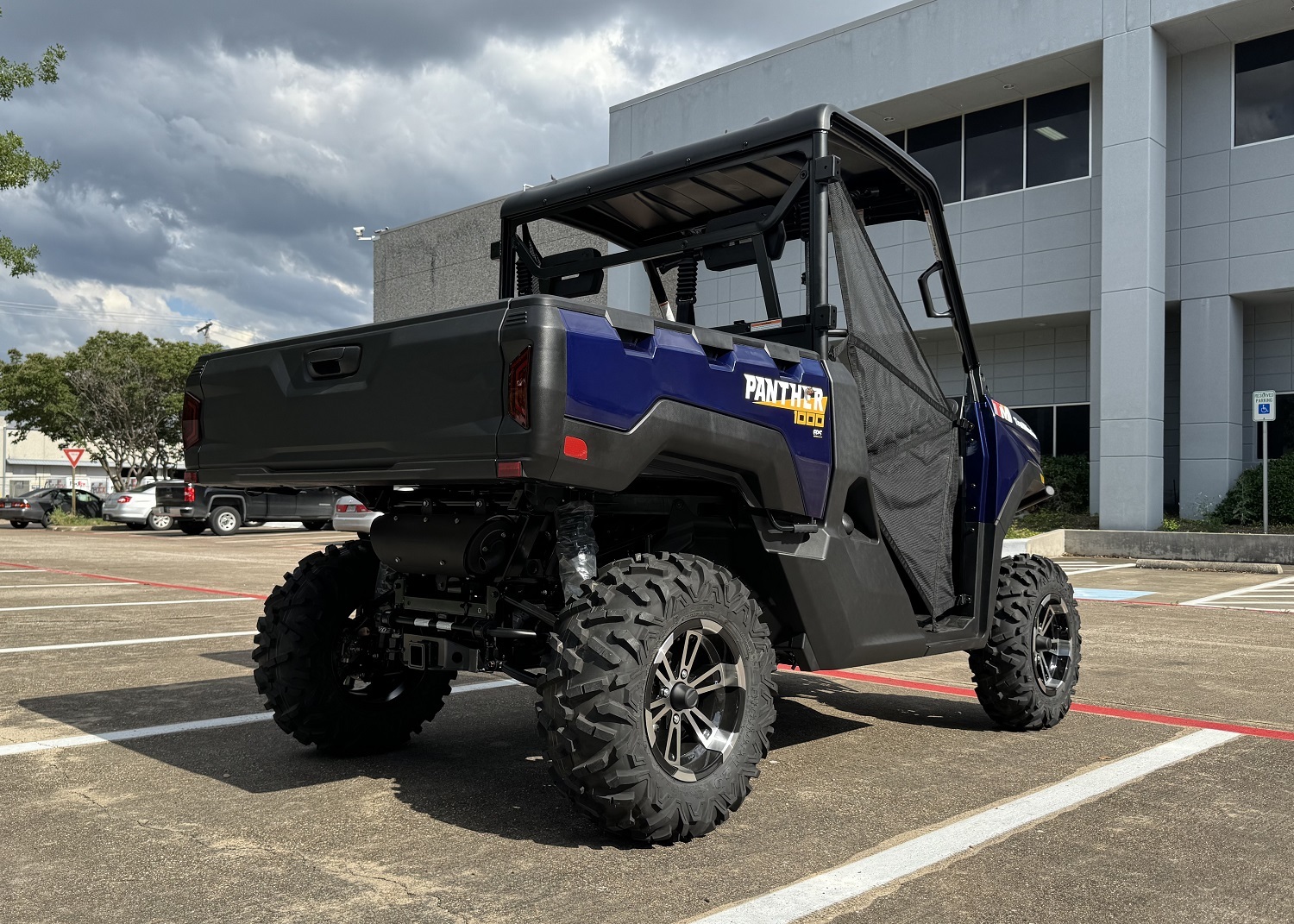

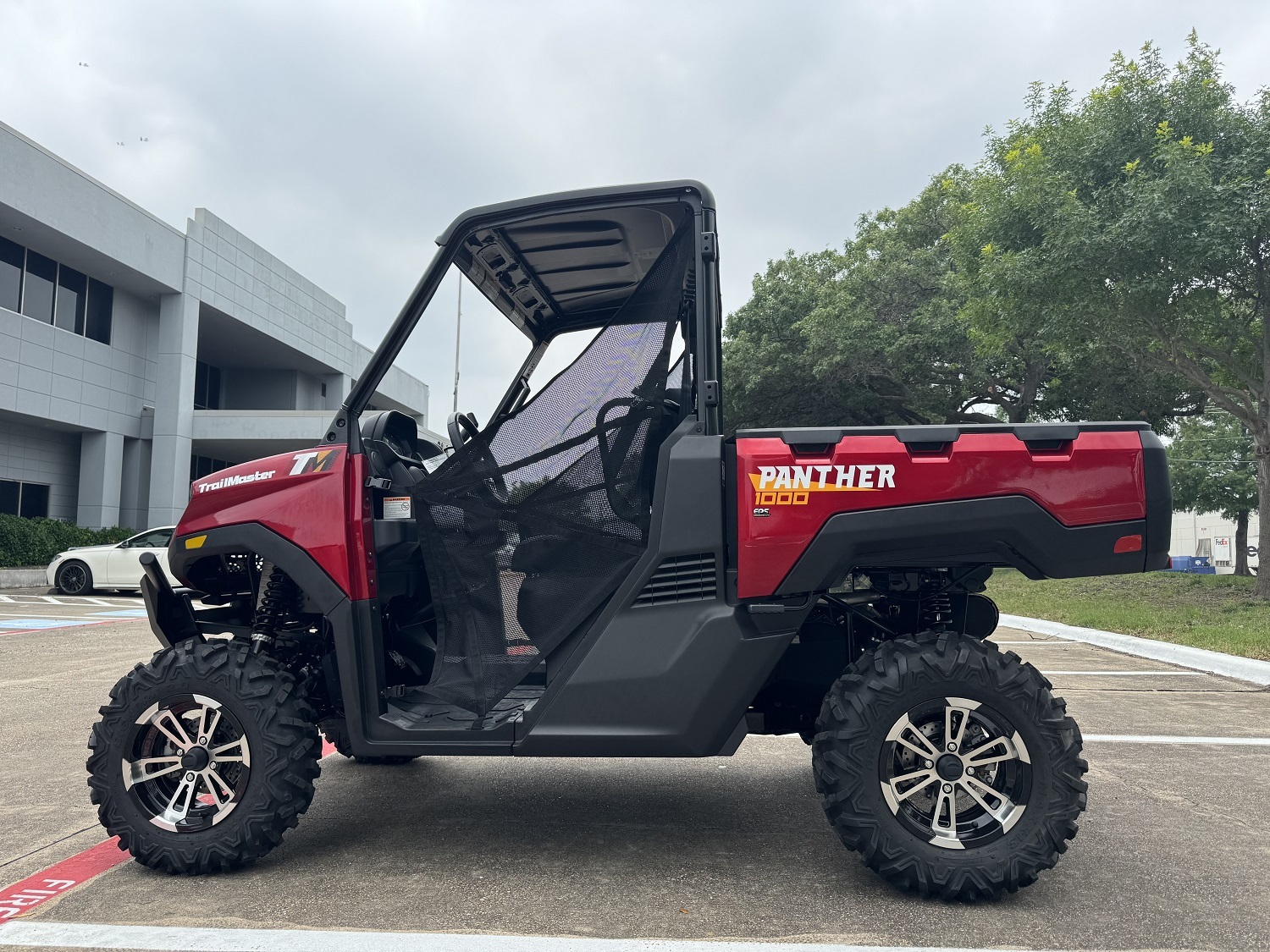

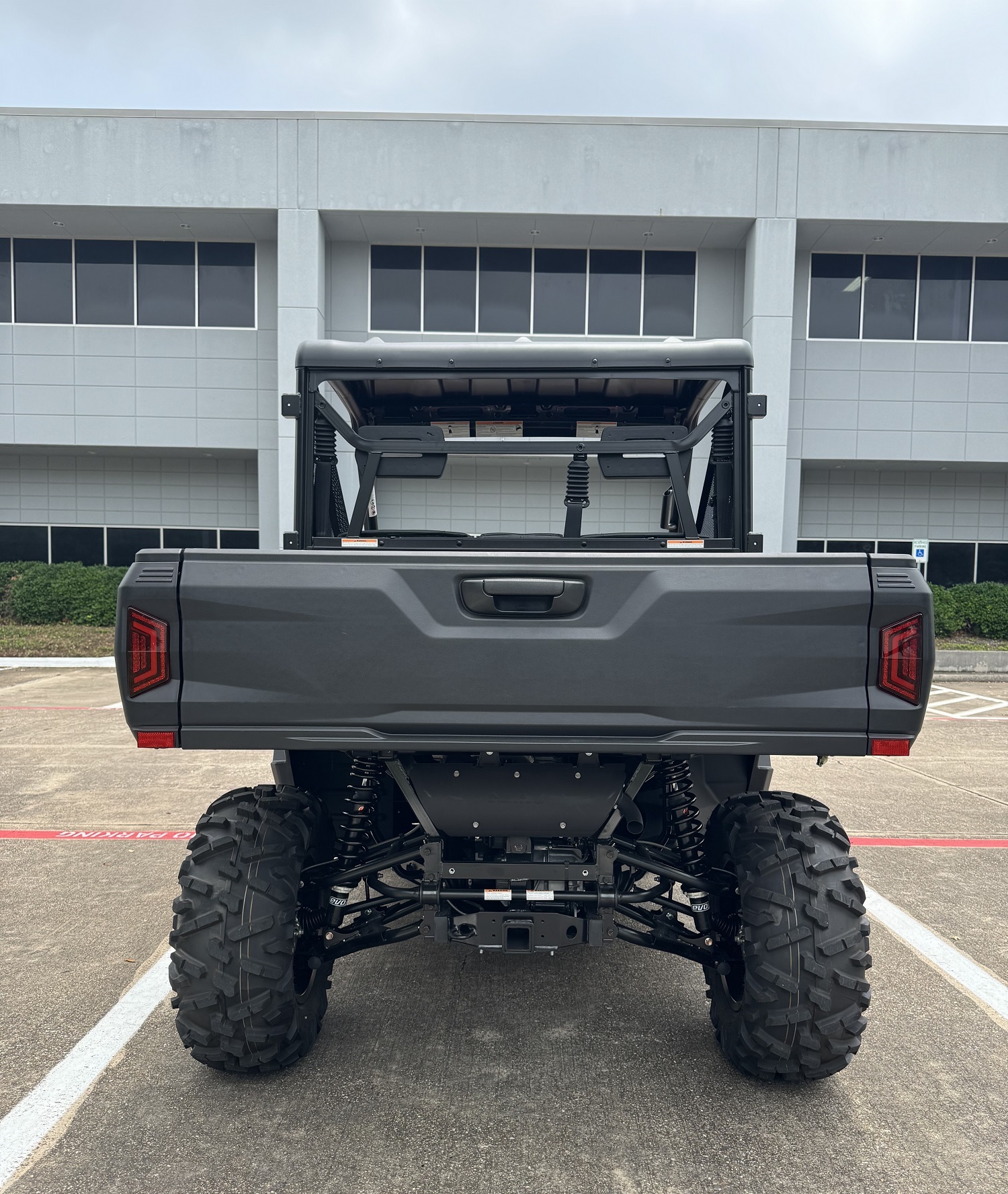

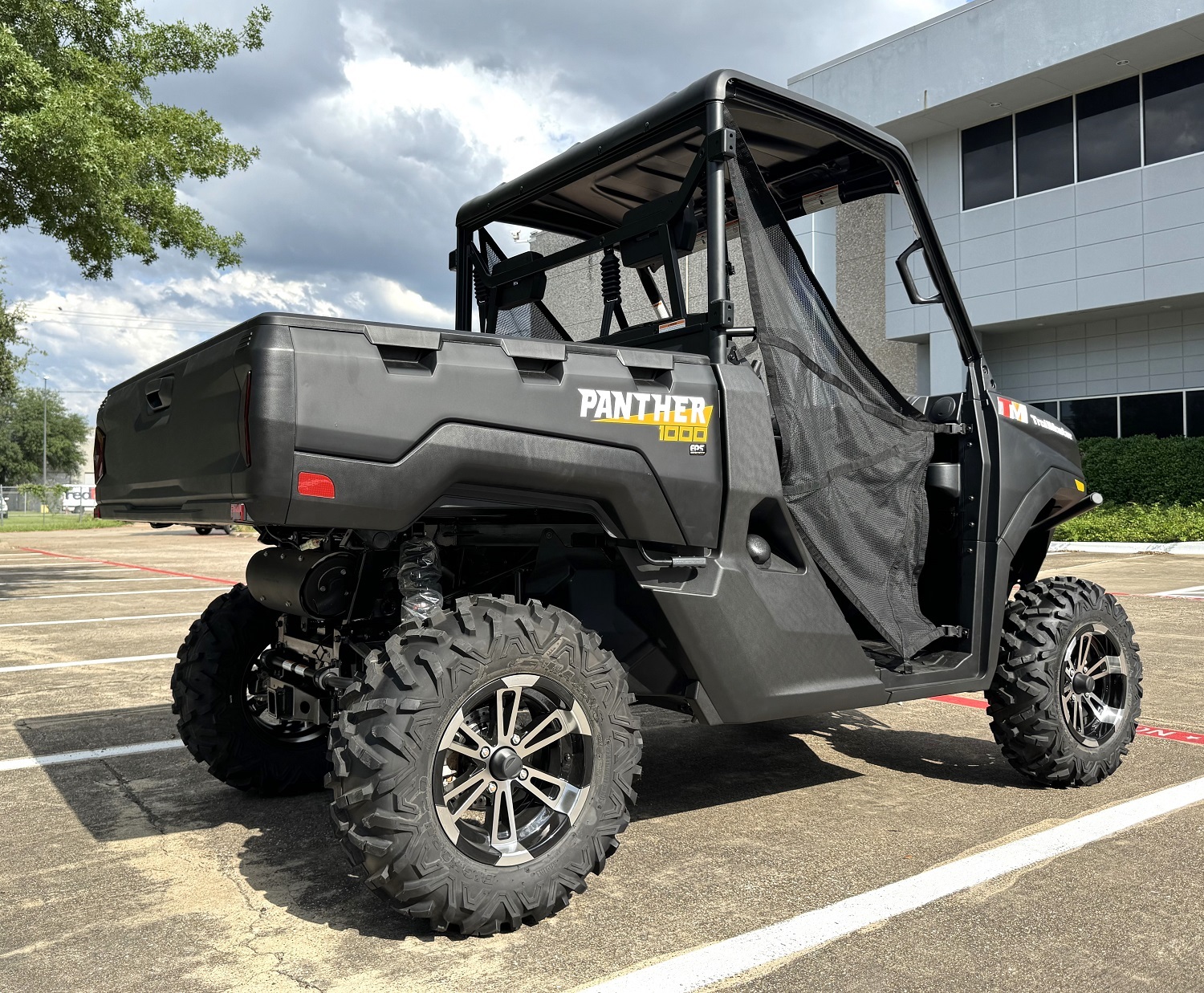

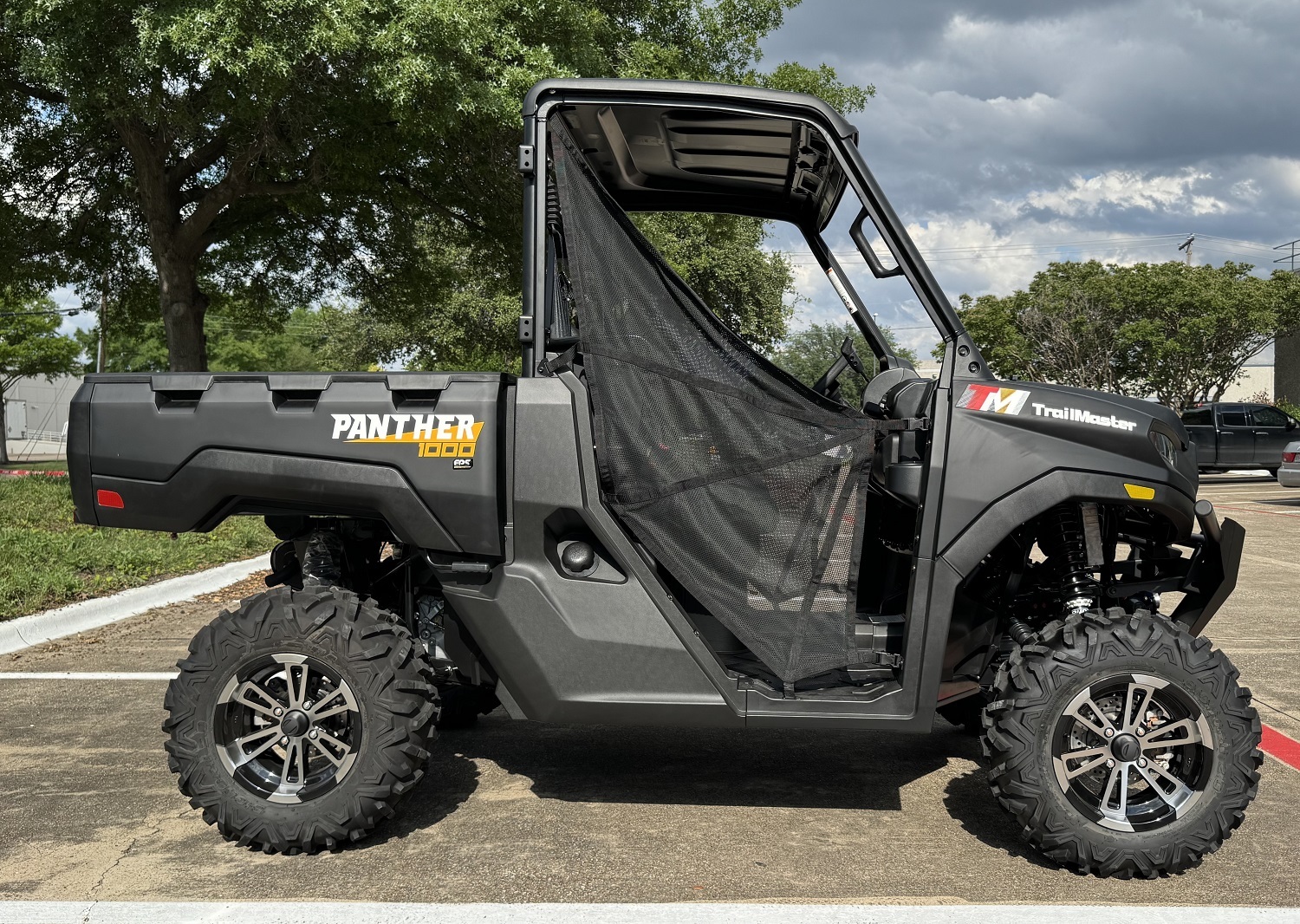

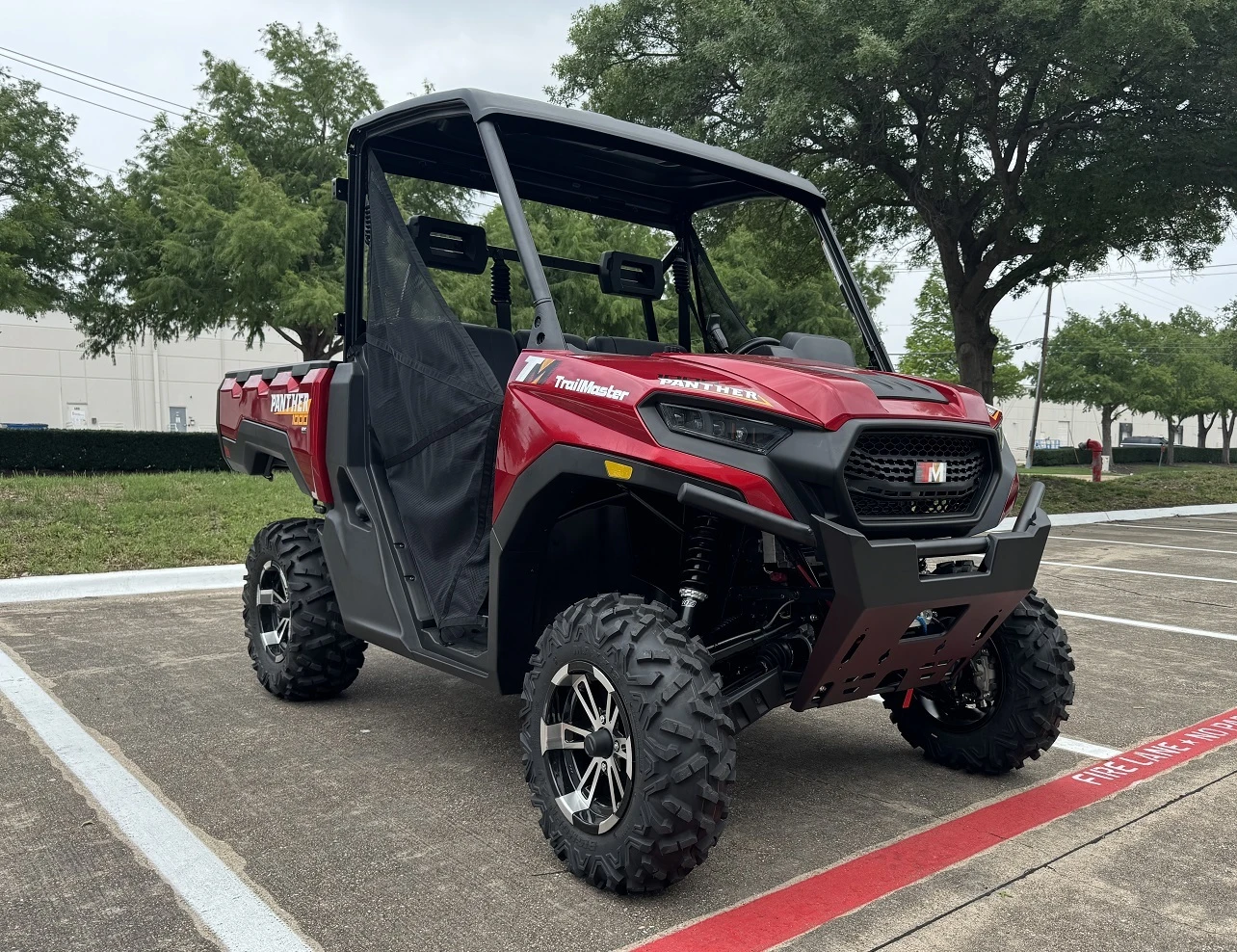

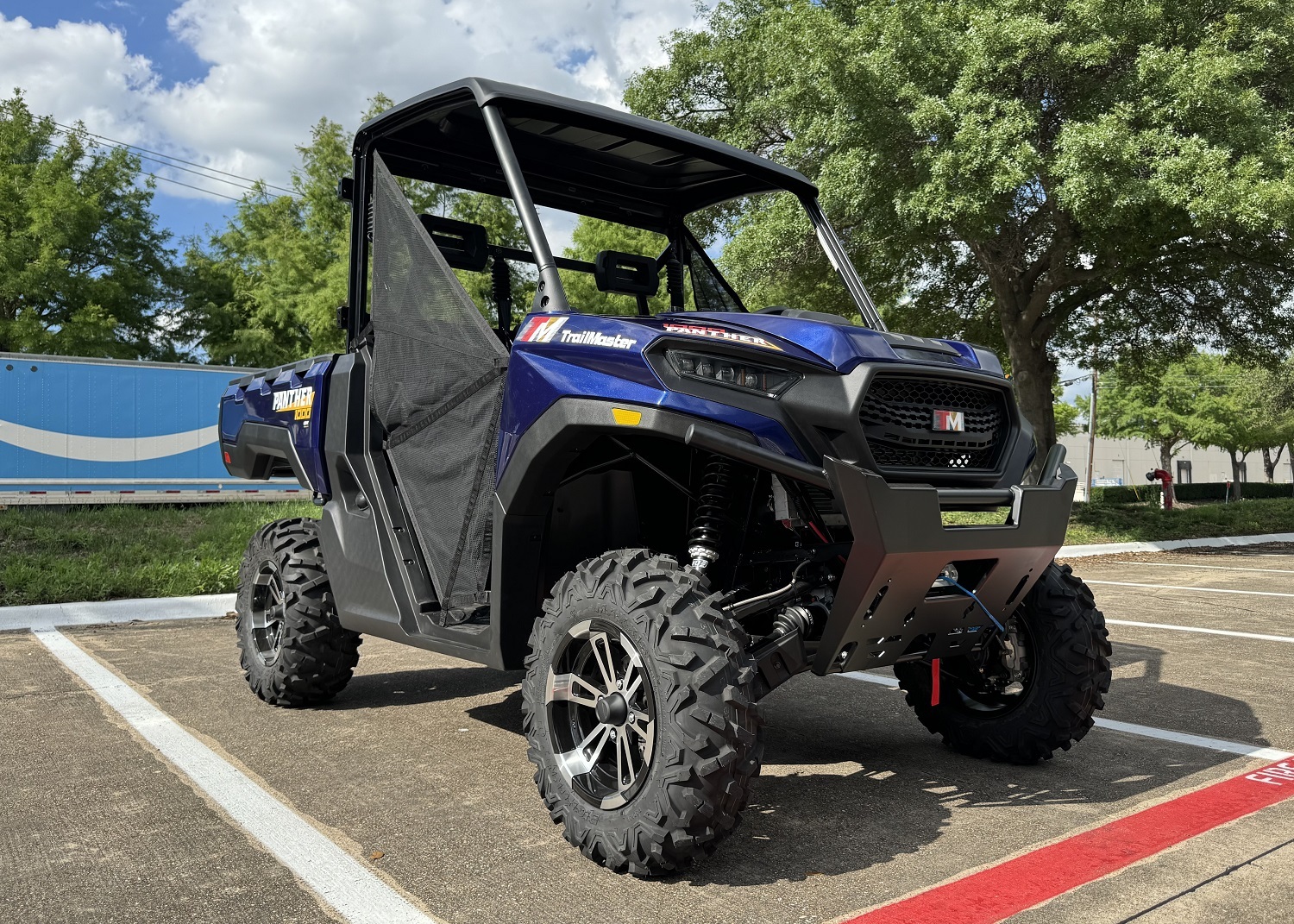

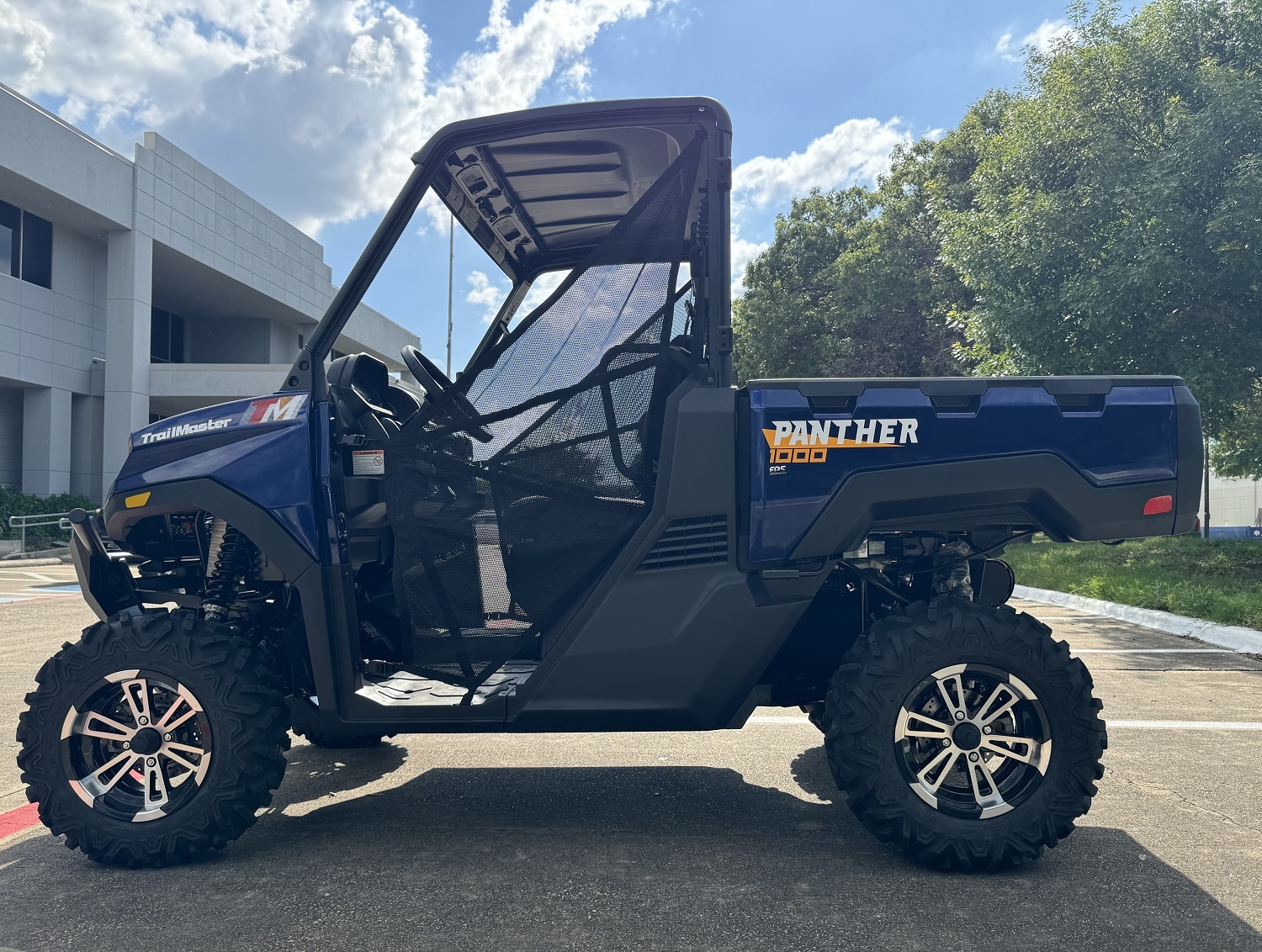

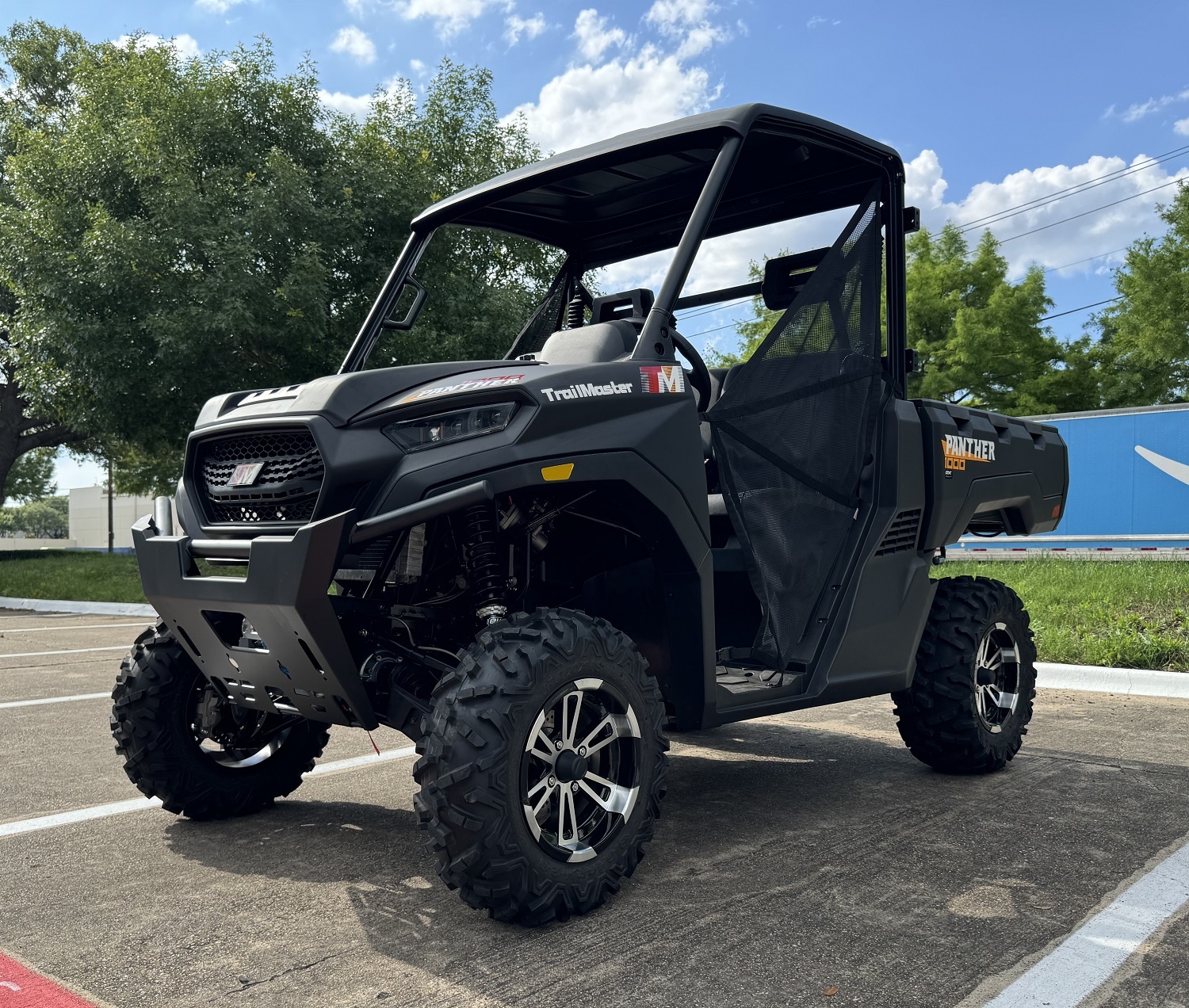

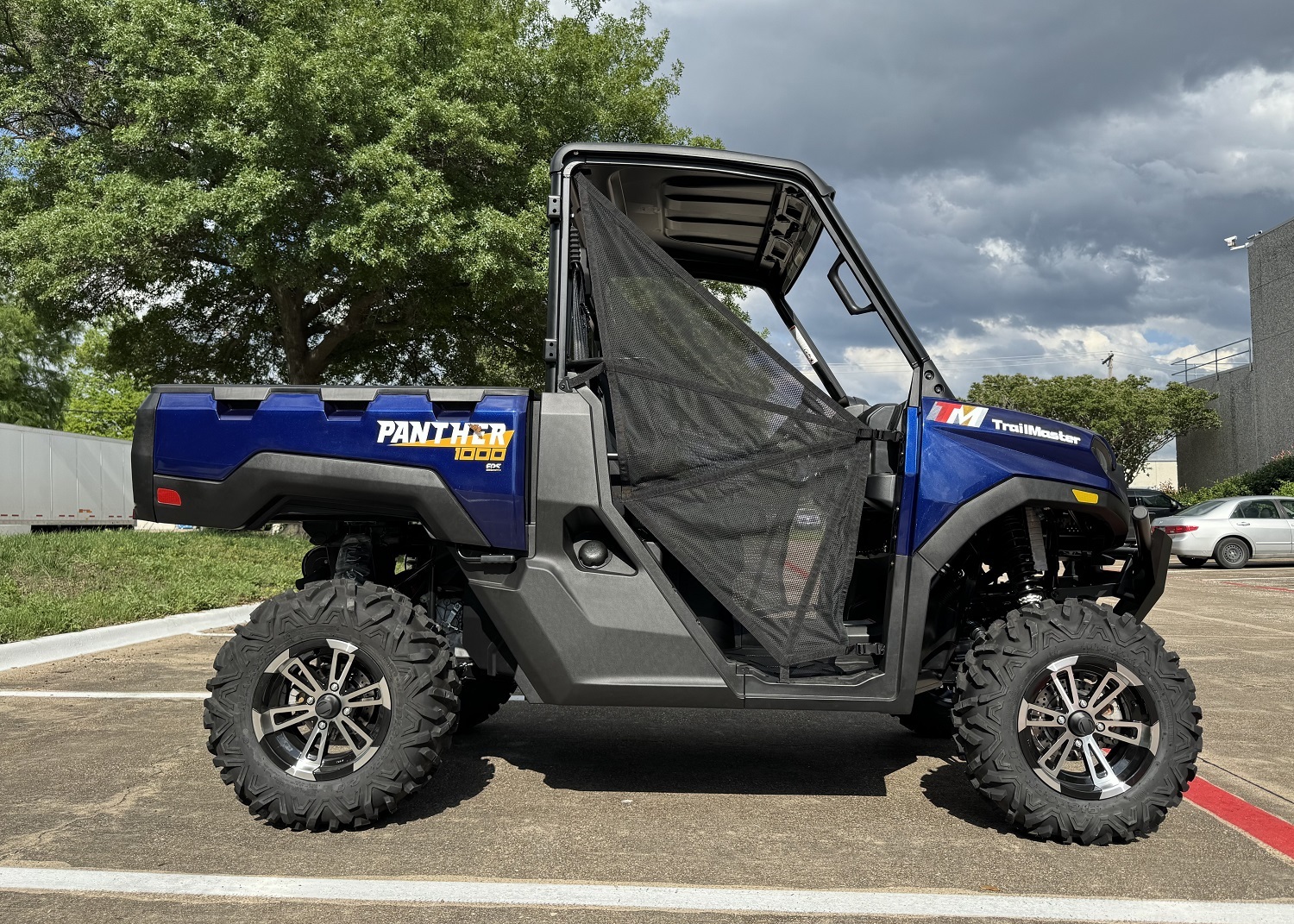

TrailMaster Panther 1000 UTV, 997cc, 83 HP Engine, 4-Stroke V-Twin Cylinder SOHC
Introducing the Panther 1000, a powerhouse of performance and innovation engineered to redefine your off-road experience. With an 83 HP engine under its hood, this versatile vehicle is built to tackle the toughest terrains with ease. Crafted in Taiwan, renowned for its precision engineering, the Panther 1000 boasts unparalleled reliability and quality craftsmanship.
Featuring a top speed of 60 mph, the Panther 1000 is designed for adrenaline-fueled adventures, whether you're navigating rugged trails or cruising across open fields. Its industrial-leading 4WD Turf Mode ensures optimal traction on any surface, providing superior control and stability in challenging conditions.
Equipped with Electric Power Steering, the Panther 1000 offers effortless maneuverability, allowing you to conquer tight turns and navigate obstacles with confidence. The CVT Belt Protection System enhances durability, safeguarding against wear and tear to ensure long-lasting performance.
Key features:
- Powerful 83 HP
- Top Speed 60 mph
- Industrial Leading 4WD Turf Mode
- 4WD / 2WD Switchable Front & Rear Differential
- Hill Descent Control
- Electric Power Steering
- CVT Belt Protection System
- 400 cm Turing Radius
- Greater Approach Angle ( 82 Degree )
- Unbraked Trailer Towing Capacity 760 kg / Max. Mass of Inertia – Braked Trailer 1360 kg
- High Durability Wheel Bearing
- LED Headlight / Tail Lamp
- More Legroom and Interior Cab Space than Others
- Battery Trickle Charging Outlet
- Pulse System – 6 Position
- 14 Inch Aluminum Wheel
- Large Maxxis Tires: 27x9-14/27x11-14 (F/R)
- Foldable Passenger Seat for More Storage
- Tailgate Scale Gage
- Design for Quick and Easy Engine / CVT Maintenance
- 4500 lb Winch with Synthetic Rope & Overload Protection
- Hard Top
Other Details
TECHNICAL SPECS
Engine
Engine Type: 997 cc 4-Stroke V-Twin Cylinder SOHC
Bore x Stroke: Ø 92mm x 75mm
Compression Ratio: 10.2
Horsepower: 83 HP
Torque: 89.9 Nm
Fuel System: Electronic Fuel Injection
Cooling System: Liquid Cooling
Lubrication System: Wet Sump
Integrated Alternator: Integrated 650W
Spark Arrester: USFS / USDA-FS 5100-1
Drivetrain
Tranmission Driving System Type: CVT with Electronic Drive Belt Detection
Gear Range: L-H-N-R-P
Final Drive: Lockable Front and Rear Differential
Drive Mode: Selectable 2WD / RWD / 4WD / 4WD Lock / Turf Mode
Driven Belt Slip Warning: When the Controller Unit Determines that the Belt is slipping, It will Issue a Warning on the Instrumentation
Suspension
Front Suspension Travel: Dual A-Arm IRS with 27.9cm Travel
Rear Suspension Travel: Dual A-Arm IRS with 27.9cm Travel with Anti-Roll Bar
Front Shock Absorber: Preload Adjustable/Preload Ring
Front Shock Absorber: Preload Adjustable/Preload Ring
Front Tire: 27 × 9-14 6P Radiation Tire
Rear Tire: 27 × 11-14 6P Radiation Tire
Wheel Rim: 14" Aluminum Alloy
Steering System
Power Steering: Tri-Mode Dynamic Electric Power Steering (Off/Min/Max)
Steering Wheel: Tilt Steering
Vehicle Dimensions / Spefications
L x W x H: 122 in x 64 in x 78.7 in (3,100 mm x 1,625 mm x 2,000 mm)
Wheelbase: 83.5in (2,120 mm)
Ground Clearance: Front: 14.2 in (360 mm) Rrear: 14.2 in (360 mm)
Min. Turning Radius: 149 in (3785 mm)
Dry Weight: 1,642 lb（745 kg）
Approach / Departure Angle: Approach 77.2° / Departure 70.4°
FuelCapacity: 9.24 Gallon (42 L )
Towing Capacity: 2,500 lb（1,133.9 kg）
Front Bumper: Equip
Max. Vehicle Speed: 60.5 M/H (7220rpm)
Speed Key: Yes (2 sets of keys operate difference top speed)
Cargo Box System
Cargo Box Dimensions-Inside: 237.57 in x 351.95 in x 70.4 in ( 1,080 mm × 1,600 mm × 320 mm )
Cargo Box Capacity: 1,000 lb（454 kg）
Tailgate Hold weight: 120 kg
Dump Angle: 47°
Accessories Quick Lock and Release Mechanism: Similar to Polaris' Lock and Ride System, Provide User with Quick and Easy Accessory Installation
Cargo Box Auxiliary Features: Tailgate Ruler ( English / Metric ), Beverage Holders x 4, Cargo Box D Ring x 4, 5 Gallon Bucket Holder x 4
Operator Platform / Cab
Seat: Adjustable Drive Seat with Passenger Seats
Beverage Holders: 6
Rear View Mirror: Yes
Electrical Power Port: DC 12V 20A x 1、USB Port x 1 、Battery Trickle Charging Outlet x 1
Safty Warning System: When Seat Belt of Driver Seat is not Fastened, There will be a Warning System Triggered and the Vehicle Speed will be Restricted @15mph
Headrest: 2
Operator Platform / Cab Auxiliary Features: Flip-UP Passenger Seat
Roof: Equip
Brake System
Main Brake: 4-Wheel Hydraulic Disc Brake
Accessory
Front Winch: 4500 lbs with Synthetic rope
Accessory Power Source: Battery & Key-On Power Bus Bar
Lighting System
Head Light: 26W LED Low Beam / 64W LED High Beam
Tail Light: LED Tail Light
Instrumentation
Standard 4.3" TFT: 4.3" TFT / Hour Meter, Speedometer, Odometer & Trip Meter, Engine Temperature, Engine Oil Low Pressure Warning Light, Fuel Level, Voltage, Tachometer, Gear Indicator, Park Brake Indication, Over Temp Warning Light, Service Reminder, Self-Diagnostics, Clock, Belt Slipping Warning Light, Speed Restriction Indicator (Speed Key), ABS Indicator Light, Seat Belt Indicator Light, Miss Fire Warning Indicator
Accessory Switch Ports: There are a Total of 4+7 Switch Spaces, According to the Vehicle is Equipped, There will be a Varying Number of Free Switch Spaces Available
Others
Starter Control: Brake must be applied when cranking engine
Gear Shifting Control: Brake must be applied when shifting gears or the engine will be shutted down
