Product Description

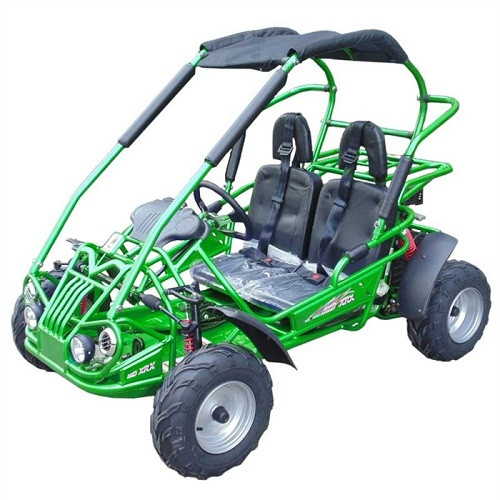

TrailMaster Mid XRX/R Assembled version, 4-Stroke, Single Cylinder, Air Cooled GoKart Carb Approved
TrailMaster's newest Mid sized XRX go kart now comes with reverse for easier handling on and off the trails! Meet the all new Mid XRX/R! This go kart hits the trails with a powerful 200cc engine, a full front and rear suspension and a tough, all welded steel frame for extra durability. Electric start, rear hydraulic disc brakes and an adjustable seat make the XRX/R easy to ride for novice and seasoned drivers alike.
Other Details
Technical Specs
Parts breakdown set up manuel
MID XRX/RÂ Parts | Â | Â |
Specifications
- EPA certified
- Engine: 4-stroke, single cylinder, air cooled
- Displacement: 200cc
- Max HP: 6.3hp/3600rpm
- Max torque: 9.6 lb ft/2500rpm
- Bore x stroke: 2.6 x 2.1 inches
- Max speed: 31mph
- Climbing ability: 12 degrees
- Ignition: C.D.I
- Starting: Electric / Pull backup
- Battery: 12V 9Ah
- Carburetor brand: JF (RX)
- Engine oil: SG15W-40
- Clutch: Automatic CVT with Reverse
- Driveline / Driving wheel: Chain / Dual wheel drive
- Suspension, F / R: Double A-arm / Double Oil Damped Shock
- Brakes, F / R: No / Hydraulic brake, Disc
- Tires, F / R: 16x6-8 / 16x7-8
- Fuel capacity: 1 gal
- Gross Weight: 400 lbs.
- Net Weight: 330 lbs
- Max load: 400 lbs
- Wheelbase: 48.4 inches
- Dimensions (inches): 66.93*43.31*25.98
- Height to seat: 10.2 inches
- Min ground clearance: 2.8 inches
- Pedal to seat back distance: 31.5-36.5 inches
- Several colors
Product Dimensions
• L x W x H: 1700x1100x660 mm
• L x W x H: 66.93x43.31x25.98 inches
• Volume : 1.23/43.44
• Weight : 400
