Product Description

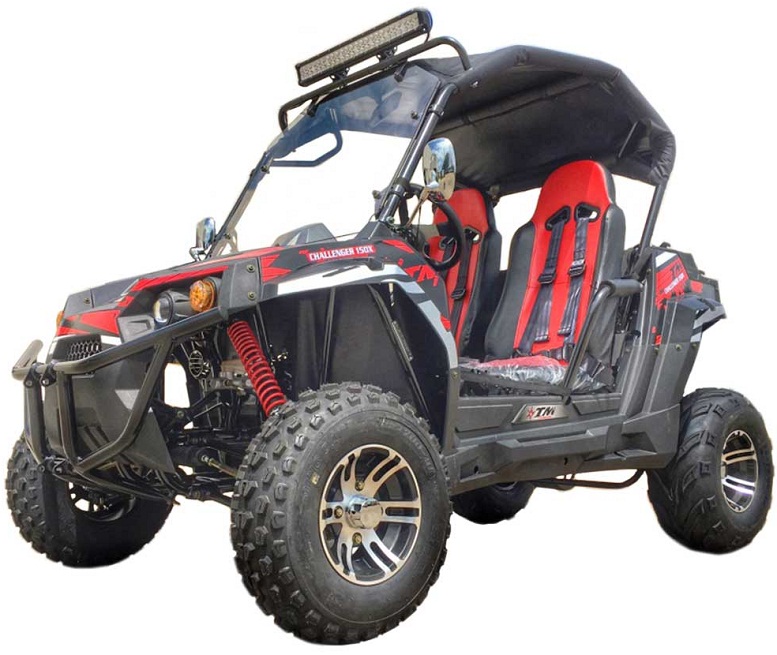

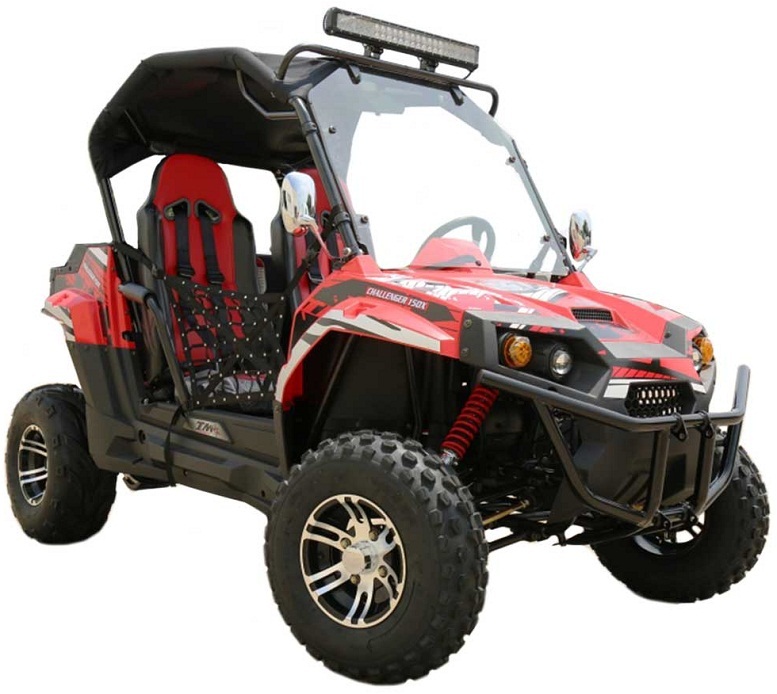

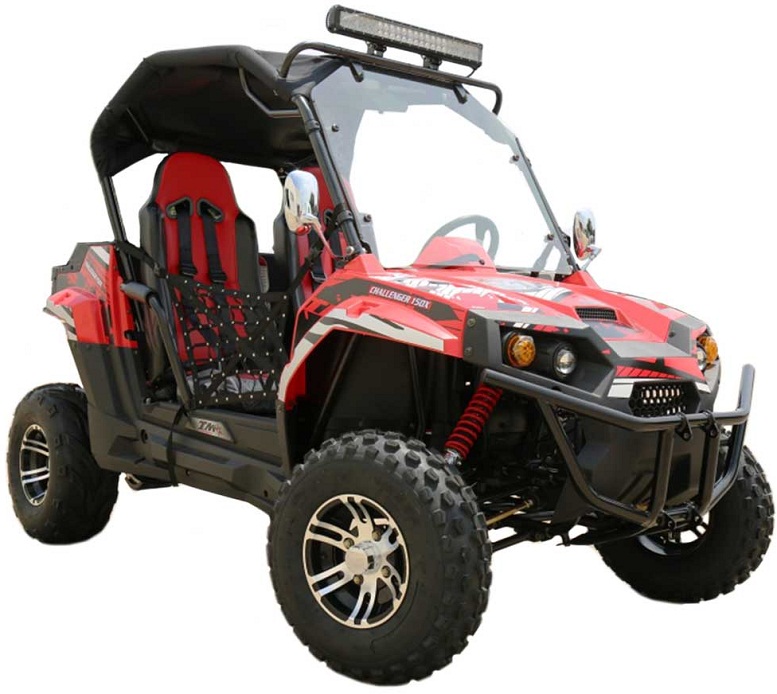

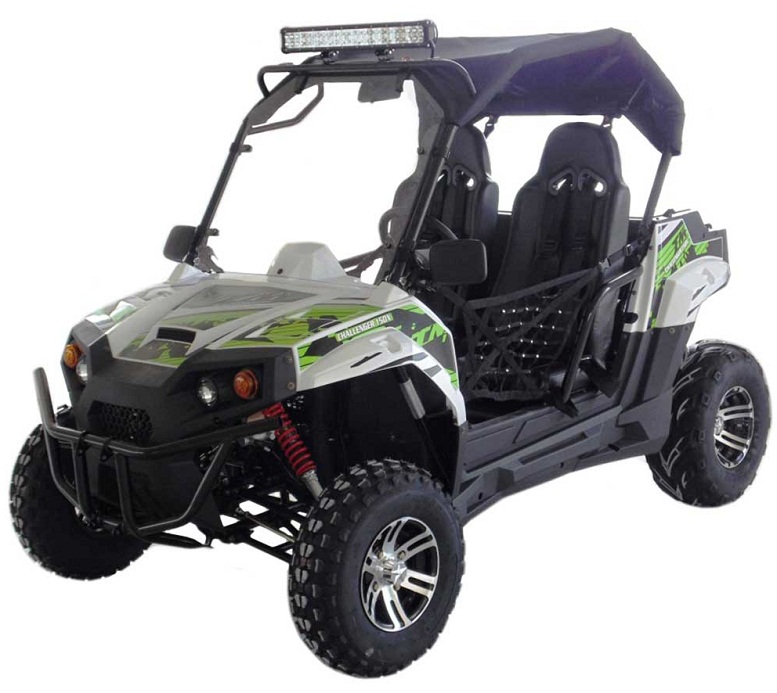

TrailMaster Challenger 200X Deluxe Youth UTV
This model comes in red, blue, black and white colors.
Product Dimensions
• Length×Width×Height:(mm) 2290x1320x780 / (Inches) 90.16x51.97x33.5
• Volume : 2.36/83.34
• Weight : 750 LBS / 340 KG
Other Details
Technical Specs
| Model | Challenger 200X UTV |
| EPA Off-Road Approved | Yes |
| Engine Type | 4-stroke, single cylinder, air cooled |
| Displacement | 168.9cc |
| Max HP | 11.1 hp/7500rpm |
| Max torque | 8 lb ft/6000rpm |
| Bore x stroke | 2.26x2.28 inches |
| Max speed | 35 mph |
| Climbing ability | 20-25 degrees |
| Ignition | C.D.I |
| Starting system | Electric |
| Battery | 12V 10Ah |
| Engine oil | SAE 15W-40 |
| Clutch | Automatic CTV with reverse |
| Driveline / Chain | Driven / Dual wheel drive |
| Suspension F / R | Independent Dual A-arm / Double Oil Damped Shock |
| Brakes, F / R | Both hydraulic brakes, Disc |
| Tires, F / R | 22x7-10 / 22x10-10 |
| Fuel capacity | 1.75 gal |
| Weight, G.W. / N.W. | 750 / 528 lbs |
| Max load | 500 lbs |
| Dimension Information | |
| Wheelbase | 72 inches |
| OA L x W x H | 90.16*51.97*33.5 inches |
| Height to seat | 21 inches |
| MinGround clearance | 6.3 inches |
