Product Description

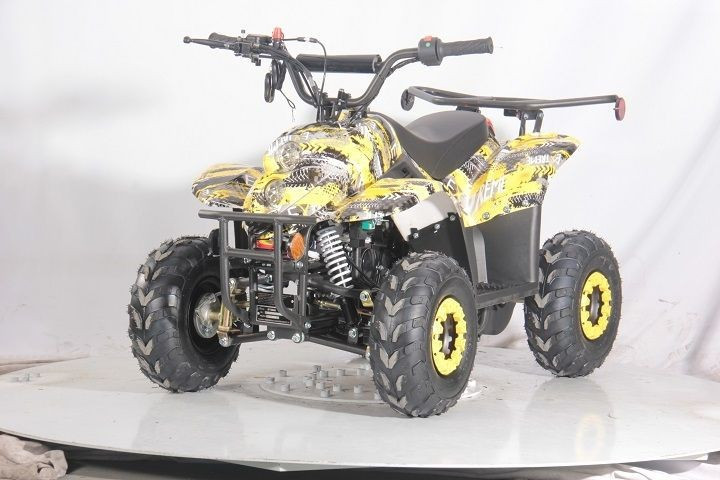

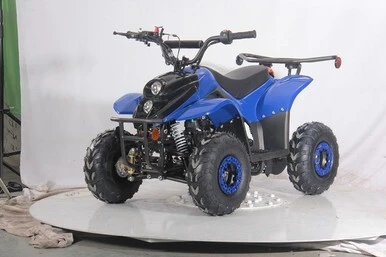

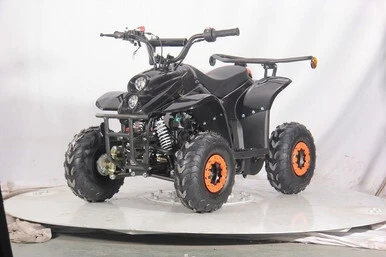

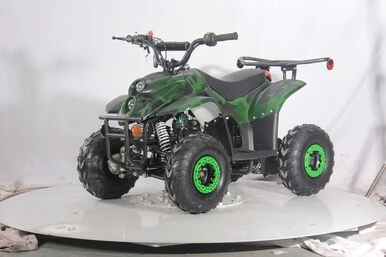

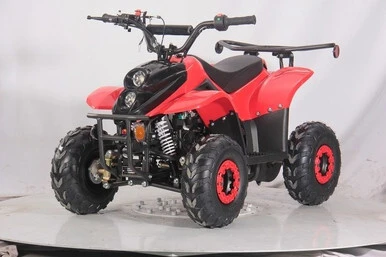

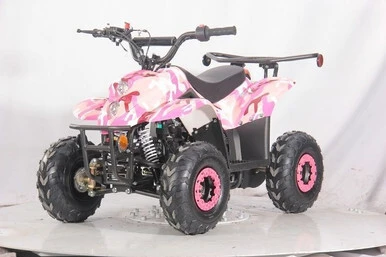

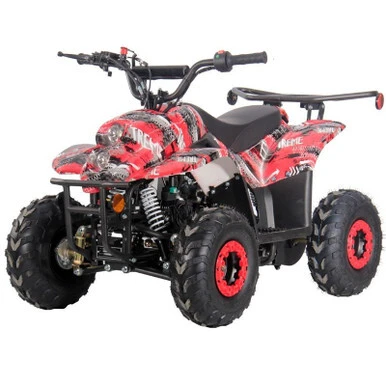

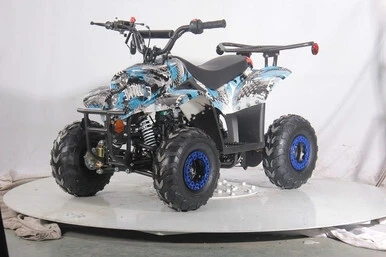

DongFang 110cc (DF110AVA) Gas ATV With 6-inch Wheel, Electric Start, Remote Shut Off Switch
The DongFang 110cc DF110AVA Gas ATV packs a punch with 6.05hp/7600rpm max power. Built with high-strength steel, it ensures durability and safety. The chain drive system offers reliable performance, making it an ideal choice for adventurous riders seeking power, resilience, and off-road excitement.
The DongFang 110cc (DF110AVA) Gas ATV is a recreational all-terrain vehicle designed for off-road adventures. Here is a description of its key specifications and features:
-
Engine:
- Engine Type: 110cc, single-cylinder, air-cooled, 4-stroke
- Maximum Power: 6.05 horsepower at 7600 RPM
- Maximum Torque: 6.65 N.m at 5700 RPM
- Fuel System: Carburetor
-
Transmission:
- Drive Type: Chain Drive
-
Frame and Build:
- Frame Material: High-strength steel for durability and stability
- Suspension: Typically, ATVs have independent front suspension and rear swingarm suspension for better handling over rough terrain.
-
Braking System:
- Front Brakes: Drum brakes for reliable stopping power
- Rear Brakes: Hydraulic disc brakes for efficient braking performance
-
Tires:
- ATVs typically come with off-road tires designed for various terrains, providing good traction and durability.
-
Fuel Capacity:
- The fuel tank capacity will vary depending on the specific model, but it's typically designed to provide sufficient fuel for extended rides.
-
Seating:
- ATVs are usually designed to seat one rider, but some models may have a second seat for a passenger.
-
Safety Features:
- Many ATVs come equipped with safety features such as throttle limiters or speed restrictors to help beginners and younger riders control the vehicle's speed.
-
Additional Features:
- Some ATVs may have additional features like headlights, taillights, and rearview mirrors for improved visibility.
-
Usage:
- ATVs like the DongFang 110cc are often used for recreational purposes, such as trail riding, exploring off-road terrain, or even light utility work on farms or ranches.
Other Details
TECHNICAL SPECS
| Vendor | DF-Moto |
|---|---|
| Assembly | 85% Assembled (need to install varies bolt-on item: Handle bar, 4 wheels, battery, front bumper etc) |
| Engine | Air cooled,Single cylinder,4 Stroke,Horizontal type |
| Engine Type (ml) | 107 |
| Starter | Electric |
| Battery Type | 12V4Ah |
| Transmission | Chain Drive |
| Ignition | CDI |
| Max Power | 6.05hp/7600rpm |
| Max Torque | 6.65N.m/5700rpm |
| Terrain Suggestion | Pave/Unpave,Semi-Trail, Dirt-Road (base on average terrain condition) |
| Cooling System | Air Cooled |
| Controls | Start Switch, Kill Switch, Light switch, Horn |
| Kill switch | Yes |
| Speed limiter | Yes |
| Lighting | Headlight, Taillight |
| Fuel Type | Gas |
| Fuel Capacity (Gal) | 0.61 |
| Frame | High Strength Steel |
| Ground Clearance (inch) | 2.84 |
| Wheelbase (inch) | 31.50 |
| Brakes Front | Drum |
| Brakes Rear | Hydraulic disc |
| Tires Front | 14.5x7-6 |
| Tires Rear | 14.5x7-6 |
| Front Suspension | Double a-am w / 10.8" shock |
| Rear Suspension | Singe arm w / 9.6"shock |
| Wheel Size | 6 Inch |
| Weight Capacity (lbs) | 155 |
| N.W. | (lbs)165 / 75(Kg) |
| G.W. | (lbs)195 / 88(kg) |
| Overall Length | (inches)45.7 / 1160(mm) |
| Overall Width | (inches)28 / 711(mm) |
| Overall Height | (inches)33.3 / 845(mm) |
| Seat Number | 1 Seat |
| Seat Height: (inch) | 24.8 |
| Distance from Foot Rest to Top of the Seat | 13.9 |
| Tools Kit | Yes |
| CARB Approved | Yes |
| MCO(Title) | No |
| Low Price Guarantee | Yes |
| MCO(Title) | No |
| Low Price Guarantee | Yes |
